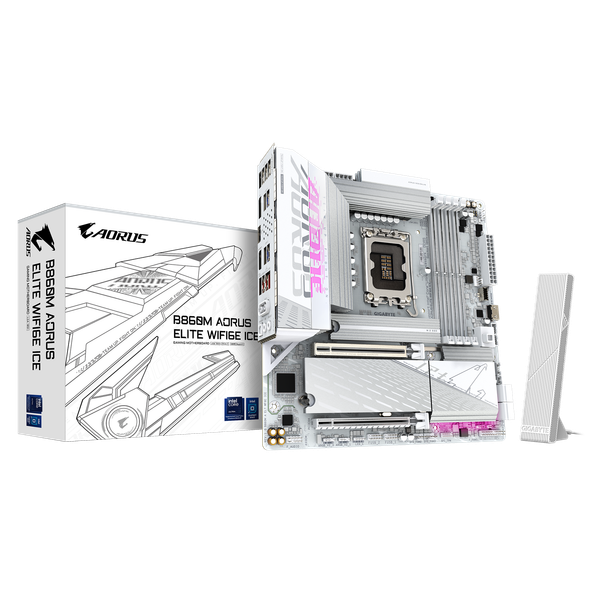

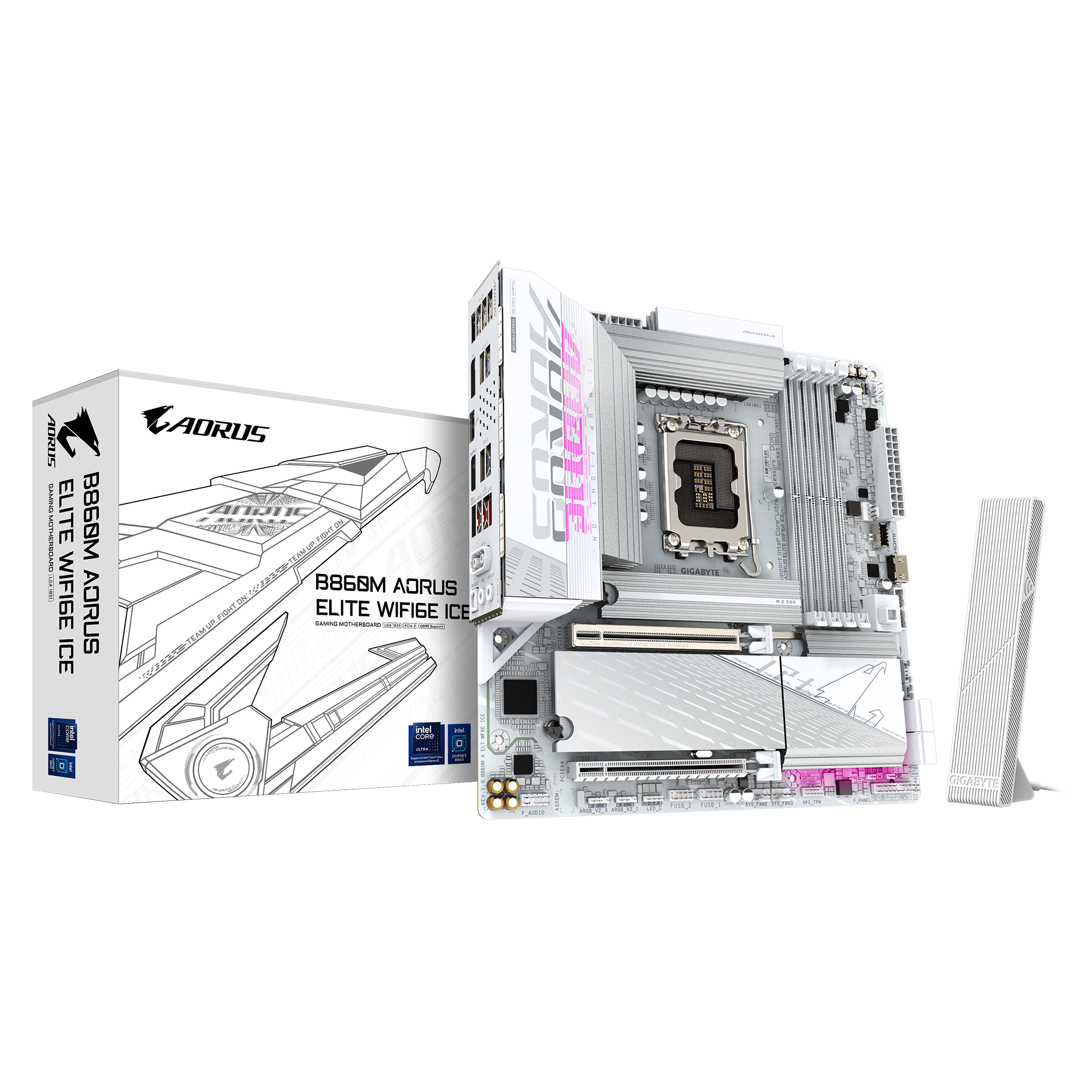

Mainboard GIGABYTE B860M AORUS ELITE WIFI6E ICE

Thương hiệu: GIGABYTE Mã sản phẩm: Đang cập nhật
So sánh
Liên hệ
Bảo hành: 36 tháng Tình trạng: Mới

Mainboard GIGABYTE B860M AORUS ELITE WIFI6E ICE DỊCH VỤ NỔI BẬT

  • DỊCH VỤ THU CŨ TẠI NHÀ - ĐỔI MỚI TẬN NƠI
  • DỊCH VỤ VỆ SINH LẮP ĐẶT PC TẠI NHÀ
  • MIỄN PHÍ LẮP ĐẶT TẠI SHOWROOM

Đặt ngay 0938 889 100 (8:30 - 18:00)

  • Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
    Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
  • Hàng chính hãng 100%
    Hàng chính hãng 100%
  • Trả góp qua thẻ tín dụng Visa, Master, JCB
    Trả góp qua thẻ tín dụng Visa, Master, JCB
  • Đổi trả 100% trong 7 ngày
    Đổi trả 100% trong 7 ngày
Phương thức thanh toán

Mainboard GIGABYTE B860M AORUS ELITE WIFI6E ICE

Mainboard GIGABYTE B860M AORUS ELITE WIFI6E ICE: Hiệu năng Elite, Kết nối Băng Giá - BP STOREMainboard GIGABYTE B860M AORUS ELITE WIFI6E ICE

Mainboard GIGABYTE B860M AORUS ELITE WIFI6E ICE là bo mạch chủ micro-ATX mạnh mẽ, mang đến hiệu năng "elite" cùng kết nối "băng giá" (ám chỉ sự mát mẻ và ổn định), được thiết kế cho game thủ và người dùng đòi hỏi sự cân bằng giữa hiệu năng và tính năng. Tìm hiểu ngay tại BP STORE!

Giới thiệu:

Mainboard GIGABYTE B860M AORUS ELITE WIFI6E ICE dựa trên chipset Intel B860, hỗ trợ bộ vi xử lý Intel Core Ultra thế hệ mới nhất, RAM DDR5 tốc độ cao, kết nối Wi-Fi 6E và Bluetooth 5.3, cùng nhiều tính năng gaming và hiệu năng cao.

Điểm nổi bật:

  • Hiệu năng Elite: Hỗ trợ bộ vi xử lý Intel Core Ultra thế hệ mới nhất cho socket LGA 1851, mang lại hiệu năng mạnh mẽ cho mọi tác vụ, từ gaming, làm việc đến giải trí.
  • RAM DDR5 tốc độ cao: Hỗ trợ 4 khe cắm DDR5, cho phép dung lượng RAM lên đến 256GB và tốc độ cực cao lên đến 9200(O.C) MT/s, tối ưu hóa hiệu năng hệ thống. Hỗ trợ XMP cho phép dễ dàng ép xung RAM.
  • Kết nối không dây băng giá: Tích hợp Wi-Fi 6E (802.11ax) và Bluetooth 5.3, cho phép bạn tận hưởng tốc độ internet không dây cực nhanh và kết nối ổn định với các thiết bị ngoại vi. Hỗ trợ băng tần 2.4/5/6GHz và chuẩn 11ax 160MHz.
  • Kết nối có dây tốc độ cao: Trang bị chip Realtek 2.5GbE LAN, đảm bảo kết nối mạng có dây tốc độ cao và ổn định.
  • Lưu trữ linh hoạt: 3 khe cắm M.2 (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) và 4 cổng SATA 6Gb/s, hỗ trợ nhiều tùy chọn lưu trữ tốc độ cao, bao gồm cả SSD NVMe. Hỗ trợ RAID 0/1/5/10.
  • Âm thanh chất lượng: Realtek Audio CODEC mang đến chất lượng âm thanh High Definition, hỗ trợ 2/4/5.1/7.1-channel và S/PDIF Out.
  • Kết nối đồ họa đa dạng: 1x USB4 Type-C (DisplayPort 2.1), 1x DisplayPort 2.1, 1x HDMI 2.1, và 1x front HDMI 1.4, hỗ trợ xuất hình ảnh với độ phân giải cao. Hỗ trợ xuất 4 màn hình cùng lúc.
  • USB đa dạng: Cổng USB4 Type-C, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, và USB 2.0, đáp ứng mọi nhu cầu kết nối thiết bị ngoại vi.
  • Thiết kế tản nhiệt: Thiết kế tản nhiệt hiệu quả giúp hệ thống hoạt động mát mẻ và ổn định.
  • Tính năng độc đáo: Hỗ trợ GIGABYTE Control Center (GCC), Q-Flash Plus, Smart Backup.

Thông số kỹ thuật:

  • CPU: Hỗ trợ Intel Core Ultra Processors (LGA1851)
  • Chipset: Intel B860
  • Bộ nhớ: 4 x DDR5 DIMM (Max 256GB)
  • Khe cắm mở rộng: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4
  • Lưu trữ: 3 x M.2, 4 x SATA 6Gb/s
  • Mạng: Realtek 2.5GbE LAN, Wi-Fi 6E, Bluetooth 5.3
  • Âm thanh: Realtek Audio CODEC
  • Cổng kết nối: USB4 Type-C, DisplayPort, HDMI, USB Type-A
  • Kích thước: Micro ATX

Đối tượng sử dụng

  • Game thủ
  • Người dùng sáng tạo nội dung
  • Người dùng cần hiệu năng cao và kết nối tốt

Kết luận:

GIGABYTE B860M AORUS ELITE WIFI6E ICE là một bo mạch chủ micro-ATX mạnh mẽ và đáng tin cậy, mang đến hiệu năng "elite" cùng kết nối "băng giá". Đây là lựa chọn tuyệt vời cho những ai muốn xây dựng một hệ thống máy tính gaming hoặc làm việc hiệu năng cao.

Order GIGABYTE B860M AORUS ELITE WIFI6E ICE tại BP Store để trải nghiệm sức mạnh tối cao!

Bạn có bất cứ thắc mắc về sản phẩm PC, liên hệ ngay Hotline: 093 888 9100. Hoặc nhắn tin đến BP Store để giải đáp mọi thắc mắc của bạn nhé.

Mainboard GIGABYTE B860M AORUS ELITE WIFI6E ICE

Mainboard GIGABYTE B860M AORUS ELITE WIFI6E ICE

Model

B860M AORUS ELITE WIFI6E ICE

CPU

LGA1851 socket: Support for Intel ® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU

Chipset

Intel ® B860 Express Chipset

BỘ NHỚ

Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

CARD ĐỒ HỌA TÍCH HỢP

Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 2.1 version.


- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 2.1 version.


- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.


- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

* Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.)


Support for up to quad-display at the same time

ÂM THANH

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


Support for S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

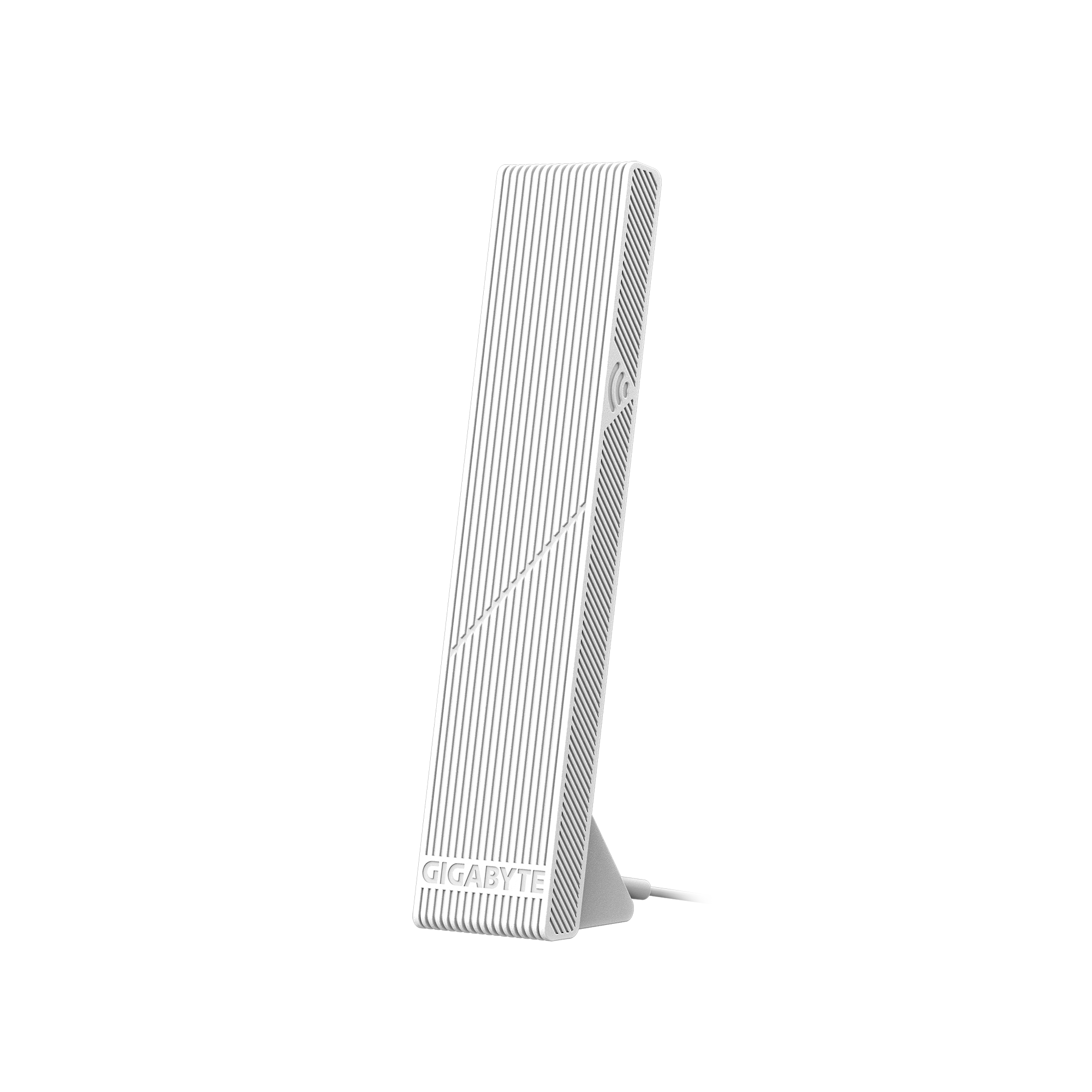

Wireless Communication module

Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard

Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Khe cắm mở rộng

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Giao diện lưu trữ

CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

CPU:
- 1 x USB4® USB Type-C® port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Kết nối I/O bên trong


1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port*
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

* Actual support may vary by CPU.

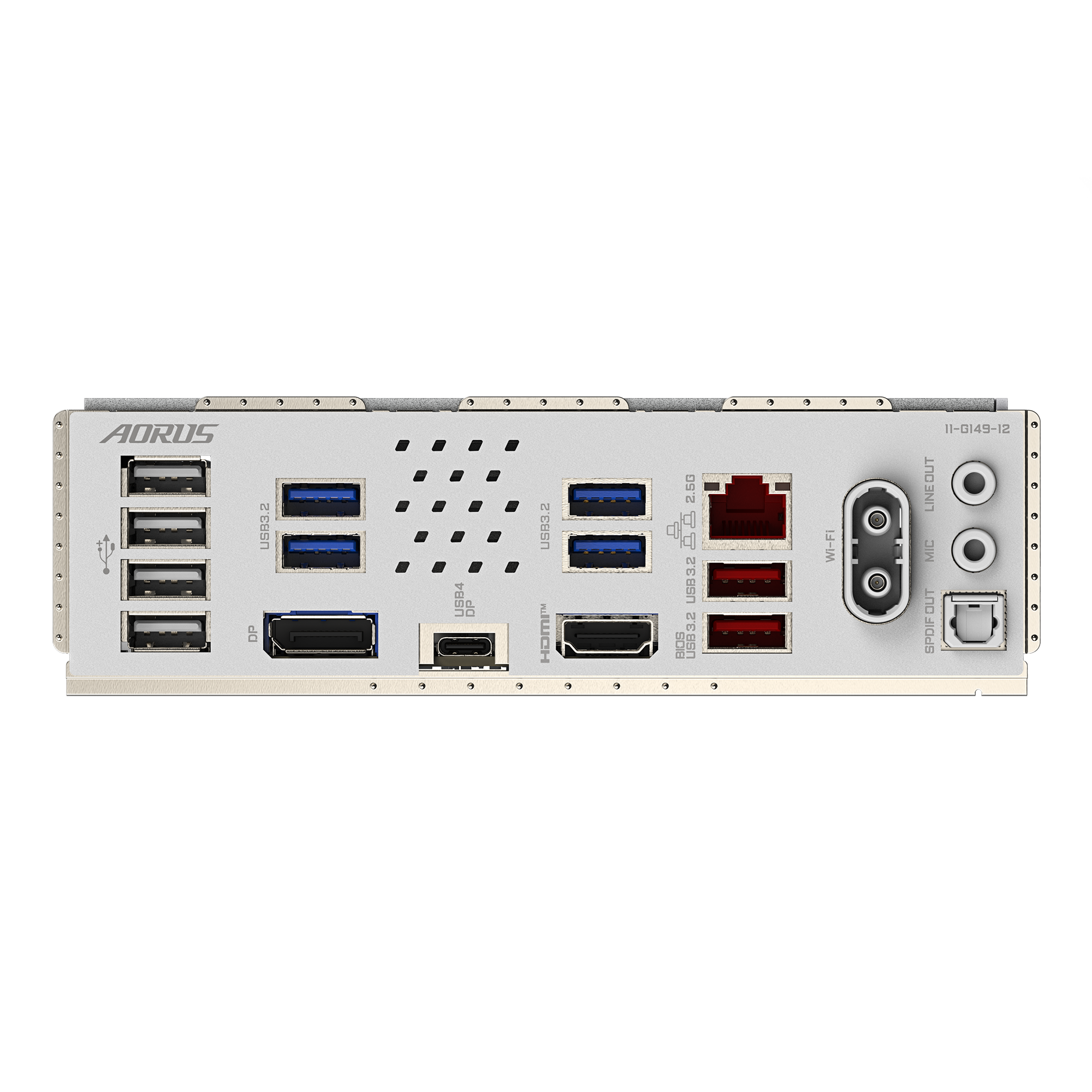

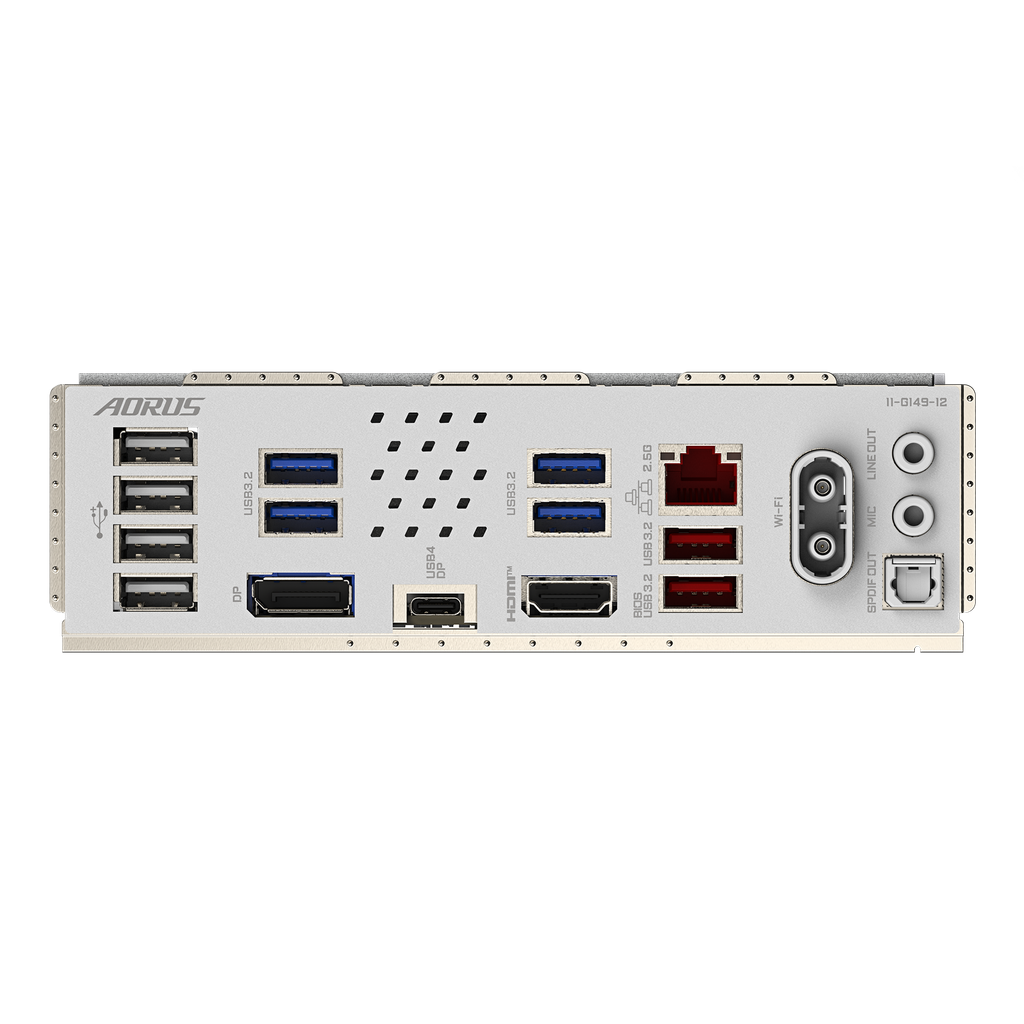

Kết nối bảng phía sau

4 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
1 x DisplayPort*
1 x USB4® USB Type-C® port (DisplayPort*)
1 x HDMI port*
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector

* Actual support may vary by CPU.

Điều khiển I/O

iTE® I/O Controller Chip

Theo dõi phần cứng

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Tính năng duy nhất


Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Gói phần mềm

Norton® Internet Security (OEM version)
LAN bandwidth management software

Hệ điều hành

Support for Windows 11 64-bit

Hệ số khuôn

Micro ATX Form Factor; 24.4cm x 24.4cm

Warranty

36 months
