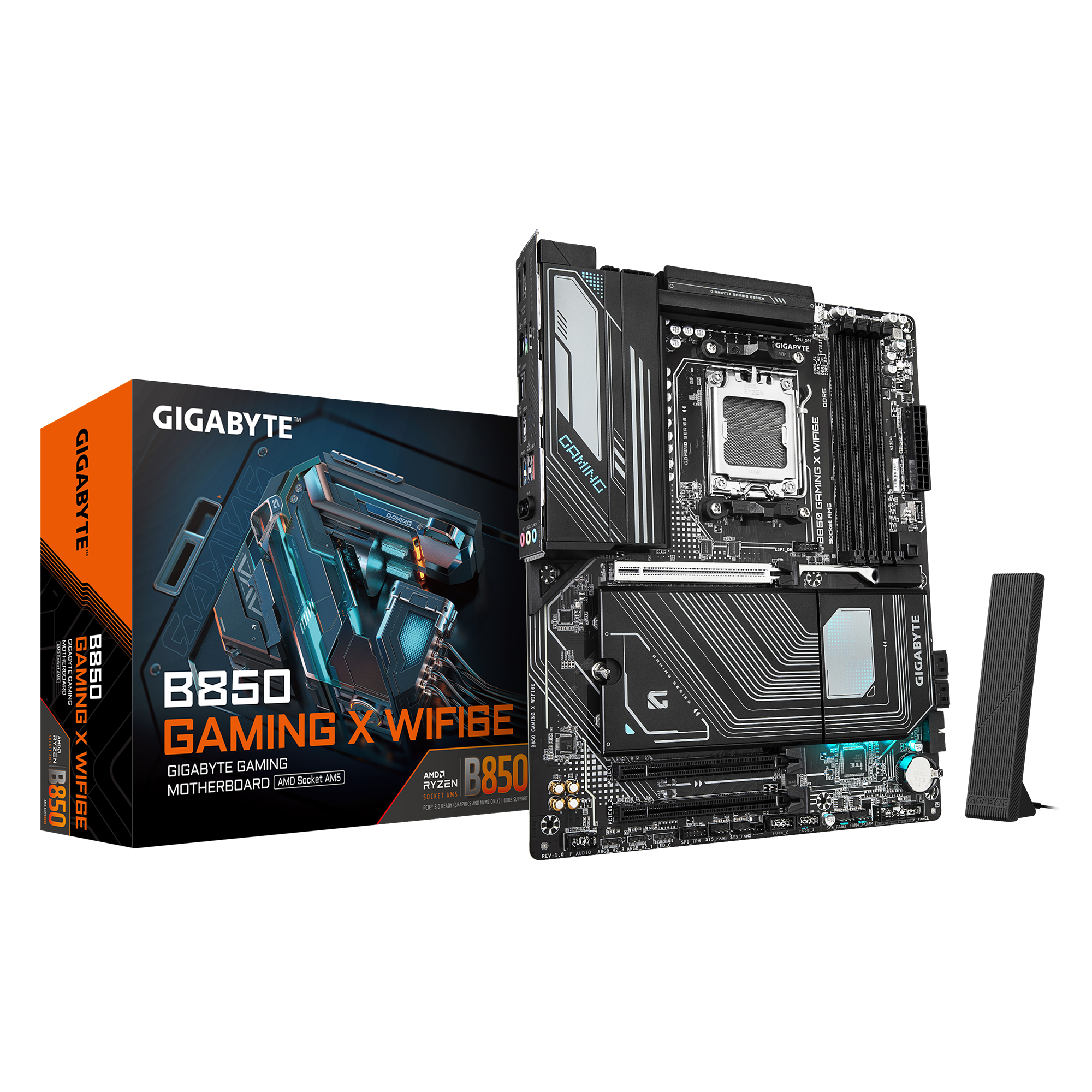

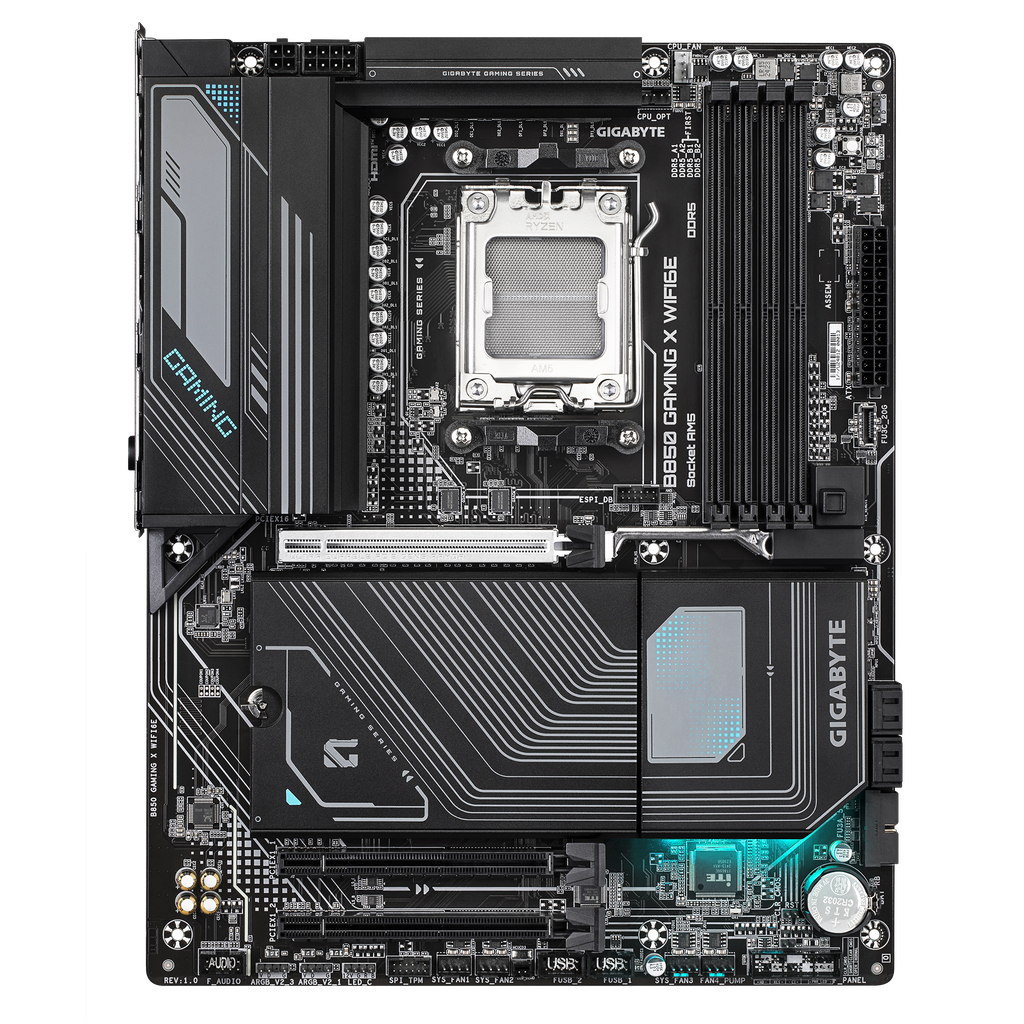

Mainboard Gigabyte B850 GAMING X WIFI6E

Mainboard Gigabyte B850 GAMING X WIFI6E: Nền Tảng AM5 Gaming Mạnh Mẽ, Kết Nối Đa Dạng - BP STORE

Mainboard Gigabyte B850 GAMING X WIFI6E với socket AM5, hỗ trợ CPU AMD Ryzen 9000/8000/7000 series, DDR5 tốc độ cao, Wi-Fi 6E, PCIe 5.0 và kết nối đa dạng, mang đến nền tảng mạnh mẽ cho hệ thống PC gaming của bạn. Tìm hiểu ngay tại BP STORE!

Giới thiệu:

Mainboard Gigabyte B850 GAMING X WIFI6E là bo mạch chủ ATX được thiết kế dành cho game thủ, mang đến hiệu năng tối ưu và khả năng kết nối linh hoạt. Với chipset AMD B850, hỗ trợ DDR5 tốc độ cao, Wi-Fi 6E, khe cắm PCIe 5.0 cho card đồ họa và nhiều tính năng gaming, B850 GAMING X WIFI6E là lựa chọn lý tưởng cho những ai muốn xây dựng một hệ thống PC gaming mạnh mẽ và đa năng.

Điểm nổi bật:

  • Socket AM5: Hỗ trợ CPU AMD Ryzen 9000/8000/7000 series mới nhất.
  • Chipset AMD B850: Hiệu năng ổn định và khả năng kết nối linh hoạt.
  • Hỗ trợ DDR5 tốc độ cao: Tăng cường hiệu suất hệ thống với DDR5 lên đến 8200MHz (OC).
  • Wi-Fi 6E và Bluetooth 5.3: Kết nối không dây nhanh chóng và ổn định.
  • Khe cắm PCI Express 5.0: Hỗ trợ card đồ họa PCIe 5.0 thế hệ mới.
  • Nhiều cổng M.2 và SATA: Lưu trữ tốc độ cao và dung lượng lớn.
  • Âm thanh Realtek Audio CODEC: Chất lượng âm thanh tốt.
  • Kết nối USB đa dạng: Bao gồm USB Type-C 3.2 Gen 2x2, USB 3.2 Gen 2 và USB 3.2 Gen 1.
  • GIGABYTE Control Center (GCC): Phần mềm quản lý hệ thống tiện lợi.
  • Q-Flash Plus: Cập nhật BIOS dễ dàng mà không cần CPU, RAM hoặc card đồ họa.
  • Đa dạng khe cắm M.2, hỗ trợ 3 khe M.2.

Thông số kỹ thuật

  • CPU: AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors
  • Chipset: AMD B850
  • Bộ nhớ:
    • Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
    • 4 x DDR5 DIMM sockets, up to 256 GB
    • Dual channel memory architecture
    • Support for AMD EXPO™ and XMP memory modules
  • Card đồ họa tích hợp:
    • Integrated Graphics Processor with AMD Radeon™ Graphics support
    • 1 x HDMI 2.1, 4096x2160@60 Hz
    • 1 x DisplayPort 1.4, 3840x2160@144 Hz
  • Âm thanh: Realtek® Audio CODEC, 2/4/5.1/7.1-channel
  • LAN: Realtek® 2.5GbE LAN chip
  • Wireless Communication: Realtek® Wi-Fi 6E RTL8852CE, Bluetooth 5.3
  • Khe cắm mở rộng:
    • 1 x PCI Express x16 (PCIe 5.0 x16/PCIe 4.0 x8/PCIe 4.0 x4)
    • 2 x PCI Express x16 (PCIe 3.0 x1)

Đối tượng sử dụng

  • Game thủ muốn xây dựng hệ thống PC gaming mạnh mẽ và đa năng.
  • Người dùng cần kết nối Wi-Fi 6E tốc độ cao.
  • Người dùng muốn có nền tảng ổn định và linh hoạt.
  • Người muốn xây dựng PC ATX.
  • Người dùng cần nhiều cổng M.2.

Kết luận:

Mainboard Gigabyte B850 GAMING X WIFI6E là một lựa chọn tuyệt vời cho những ai đang tìm kiếm một bo mạch chủ ATX gaming mạnh mẽ với kết nối tiên tiến và nhiều tính năng độc đáo. Với Wi-Fi 6E, PCIe 5.0, 3 khe M.2 và nhiều cổng kết nối, B850 GAMING X WIFI6E sẽ mang đến cho bạn trải nghiệm gaming và làm việc tuyệt vời.

Order Mainboard Gigabyte B850 GAMING X WIFI6E tại BP Store để trải nghiệm sức mạnh tối cao!

Bạn có bất cứ thắc mắc về sản phẩm PC, liên hệ ngay Hotline: 093 888 9100. Hoặc nhắn tin đến BP Store để giải đáp mọi thắc mắc của bạn nhé.

Mainboard Gigabyte B850 GAMING X WIFI6E

Model

B850 GAMING X WIFI6E

CPU

AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)

Chipset

AMD B850

BỘ NHỚ

Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

CARD ĐỒ HỌA TÍCH HỢP

Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.


- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version.


(Graphics specifications may vary depending on CPU support.)

ÂM THANH

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

WIRELESS COMMUNICATION MODULE

Realtek® Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Khe cắm mở rộng

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2)

Giao diện lưu trữ

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/25110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.


RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB 3.2 Gen 1 port on the back panel
CPU+USB 2.0 Hub:
- 3 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers

Kết nối I/O bên trong


1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper

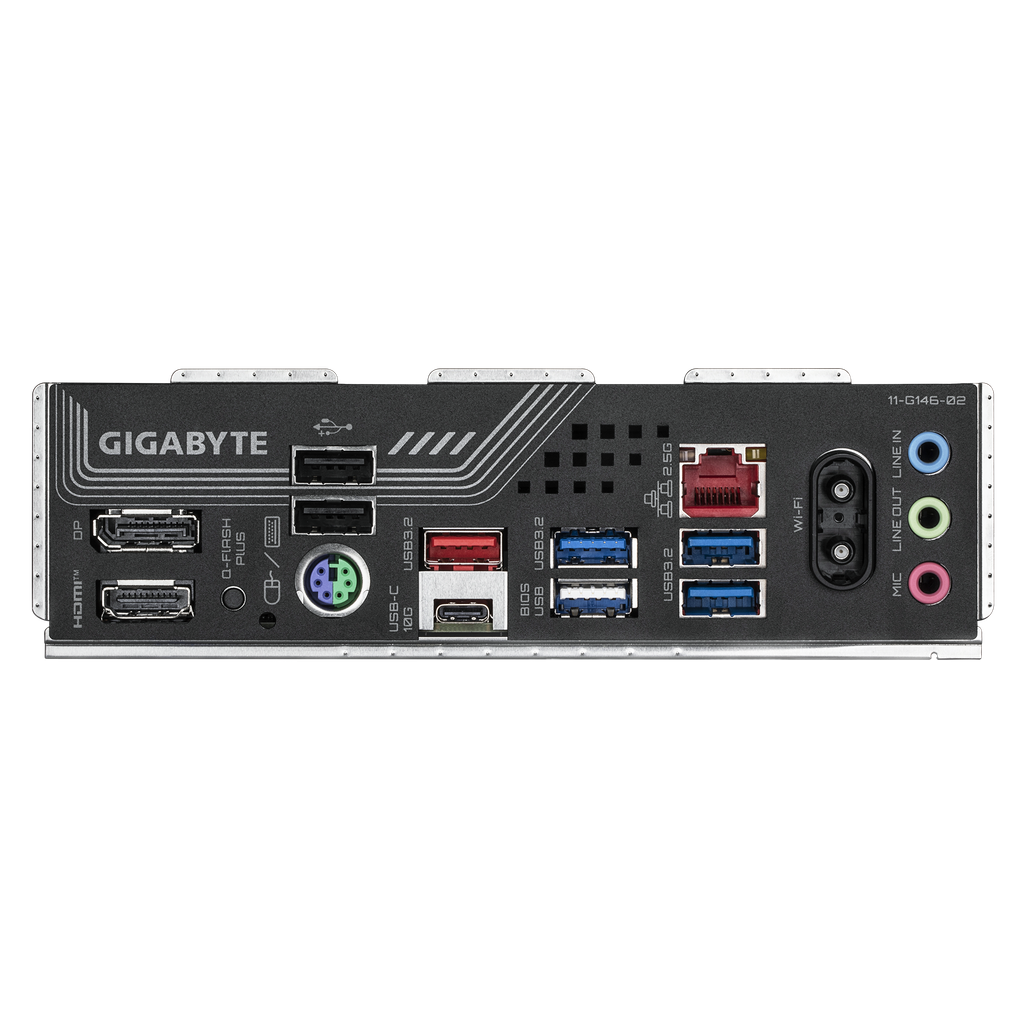

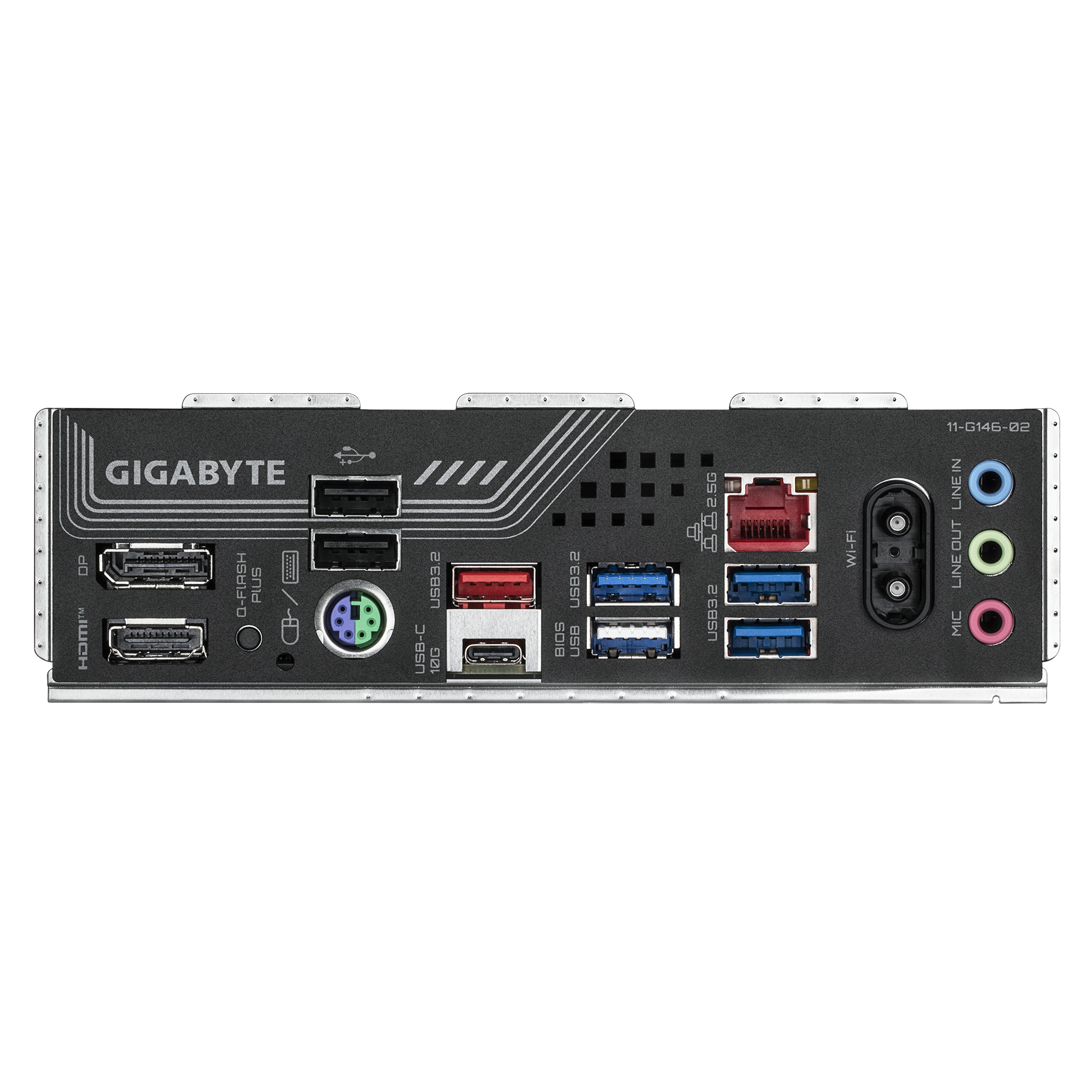

Kết nối bảng phía sau

1 x DisplayPort*
1 x HDMI port*
1 x Q-Flash Plus button
1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x antenna connectors (2T2R)
3 x audio jacks

* Actual support may vary by CPU.

Điều khiển I/O

iTE® I/O Controller Chip

Theo dõi phần cứng

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Tính năng duy nhất


Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Gói phần mềm

Norton® Internet Security (OEM version)
LAN bandwidth management software

Hệ điều hành

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Hệ số khuôn

ATX Form Factor; 30.5cm x 24.4cm

Warranty

36 months
