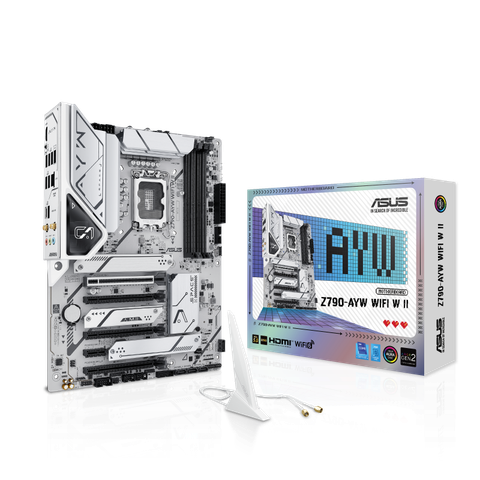

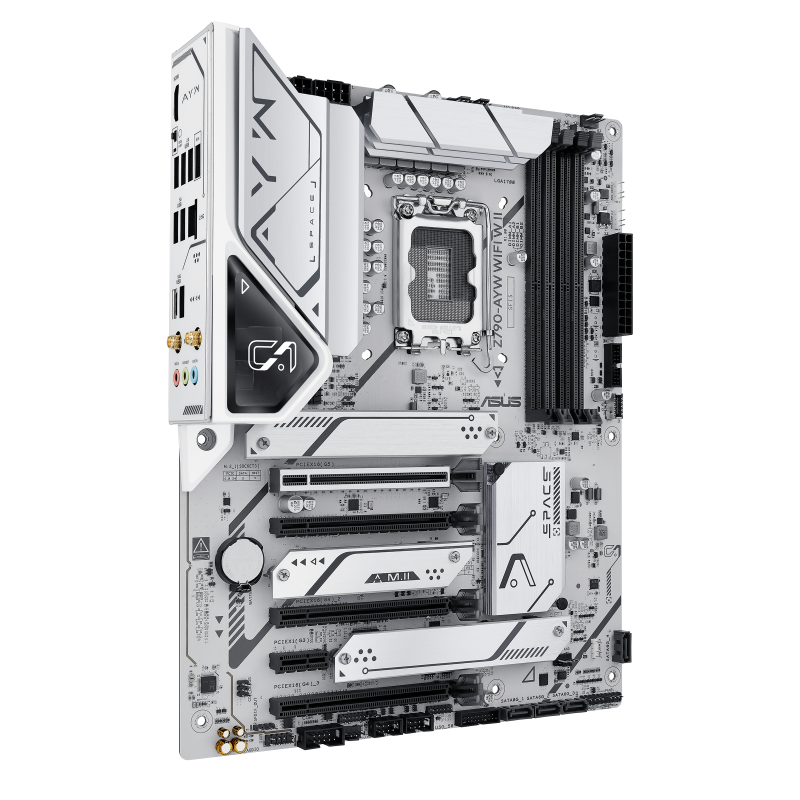

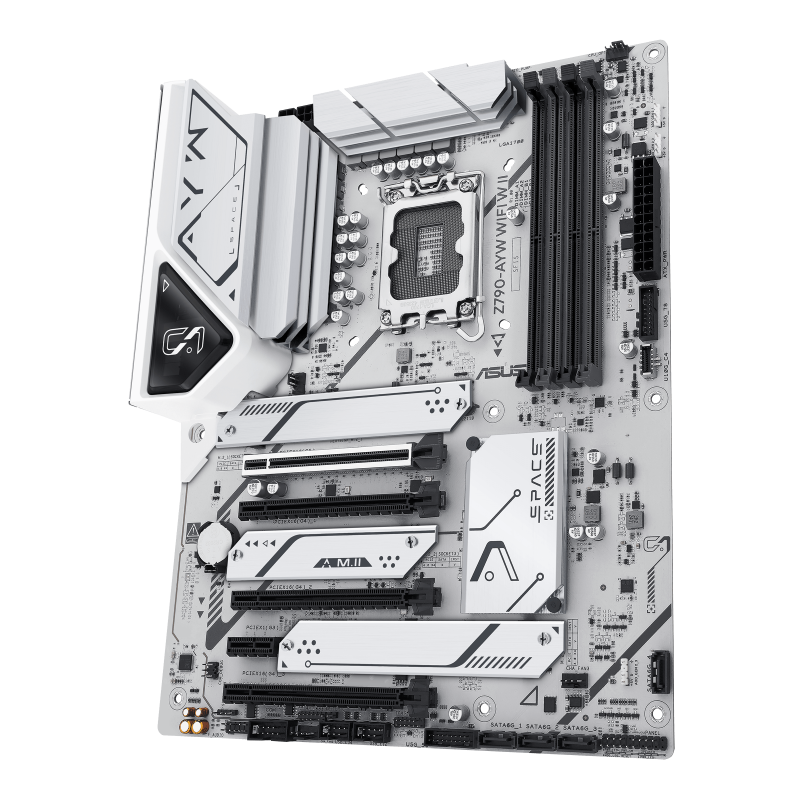

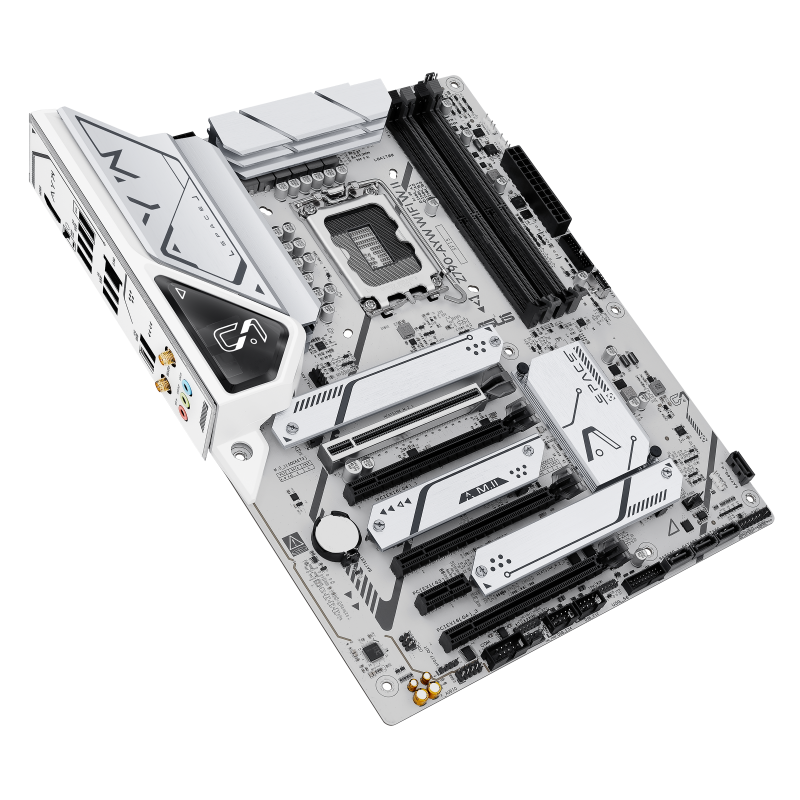

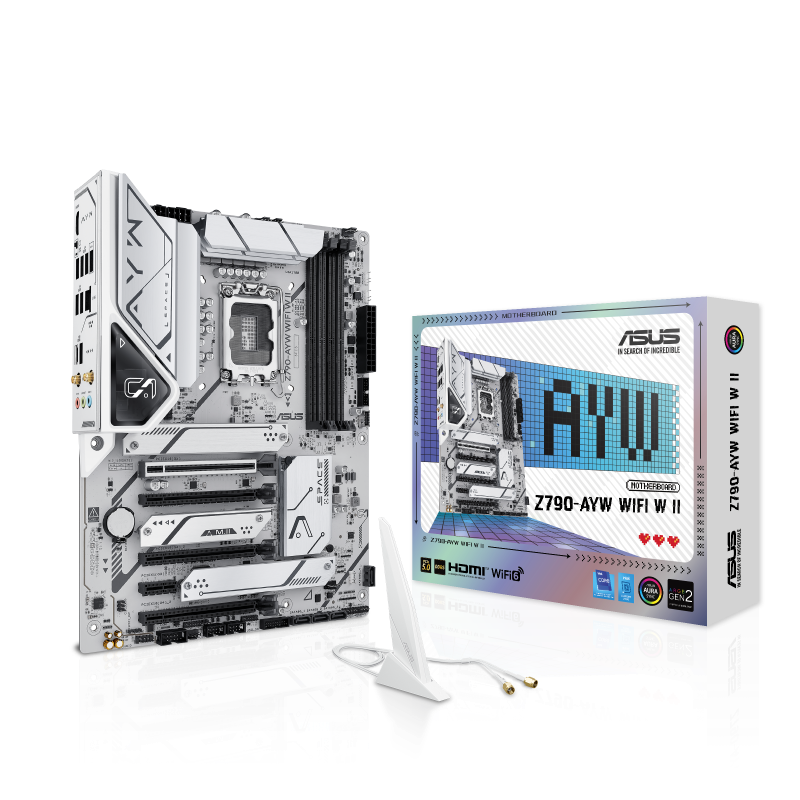

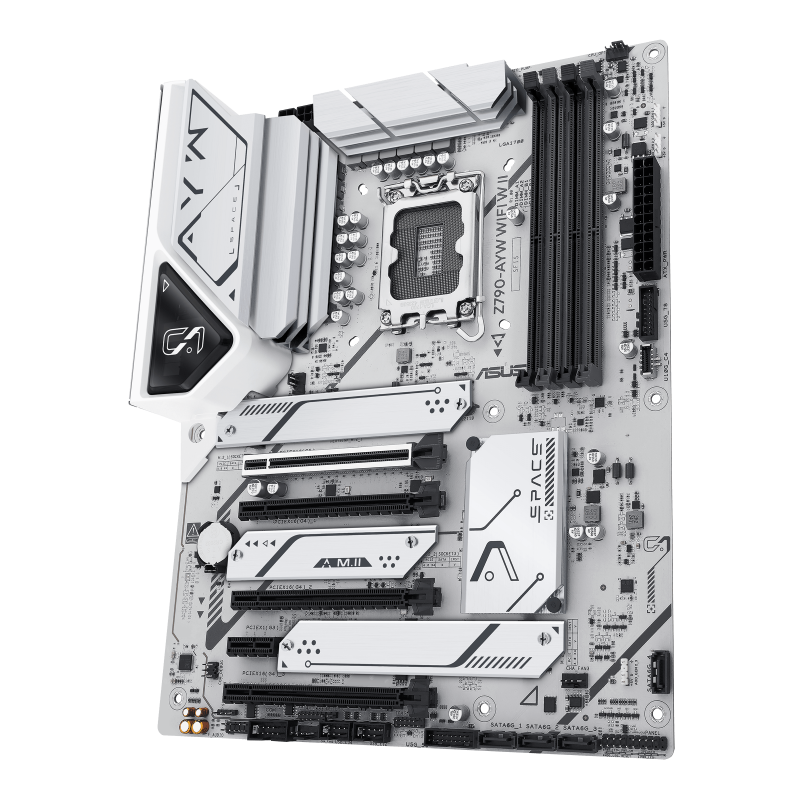

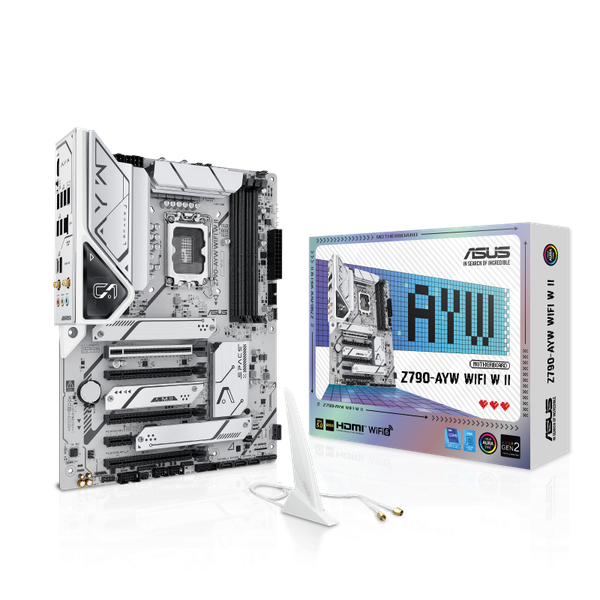

Mainboard Asus Z790-AYW WIFI W II

Thương hiệu: ASUS Mã sản phẩm: Đang cập nhật
So sánh
99,999,999₫ 104,900,000₫
-5%
(Tiết kiệm: 4,900,001₫)
Bảo hành: 36 tháng

Mainboard Asus Z790-AYW WIFI W II DỊCH VỤ NỔI BẬT

  • DỊCH VỤ THU CŨ TẠI NHÀ - ĐỔI MỚI TẬN NƠI
  • DỊCH VỤ VỆ SINH LẮP ĐẶT PC TẠI NHÀ
  • MIỄN PHÍ LẮP ĐẶT TẠI SHOWROOM

Đặt ngay 0938 889 100 (8:30 - 18:00)

  • Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
    Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
  • Hàng chính hãng 100%
    Hàng chính hãng 100%
  • Trả góp qua thẻ tín dụng Visa, Master, JCB
    Trả góp qua thẻ tín dụng Visa, Master, JCB
  • Đổi trả 100% trong 7 ngày
    Đổi trả 100% trong 7 ngày
Phương thức thanh toán

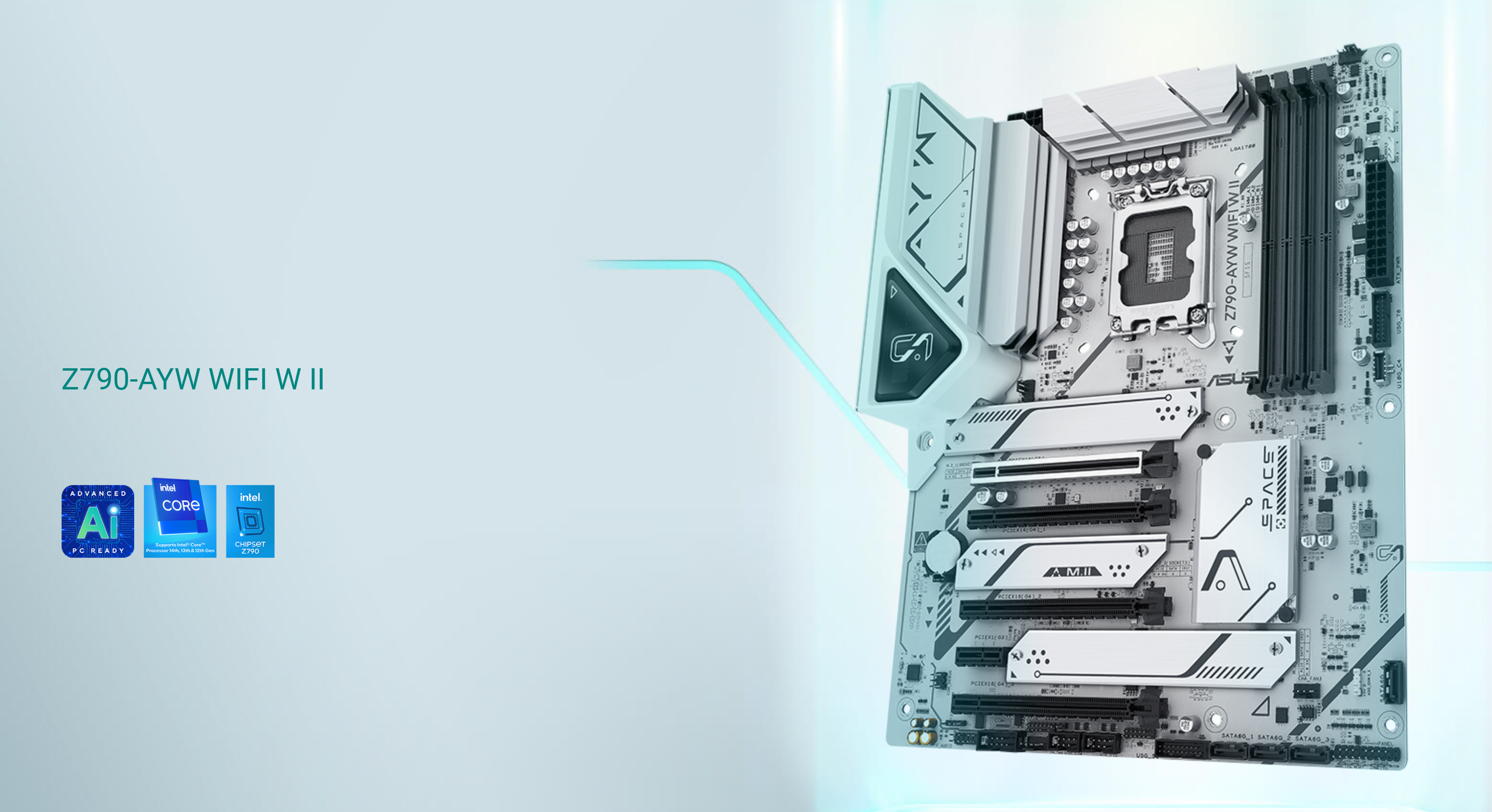

Mainboard Asus Z790-AYW WIFI W II

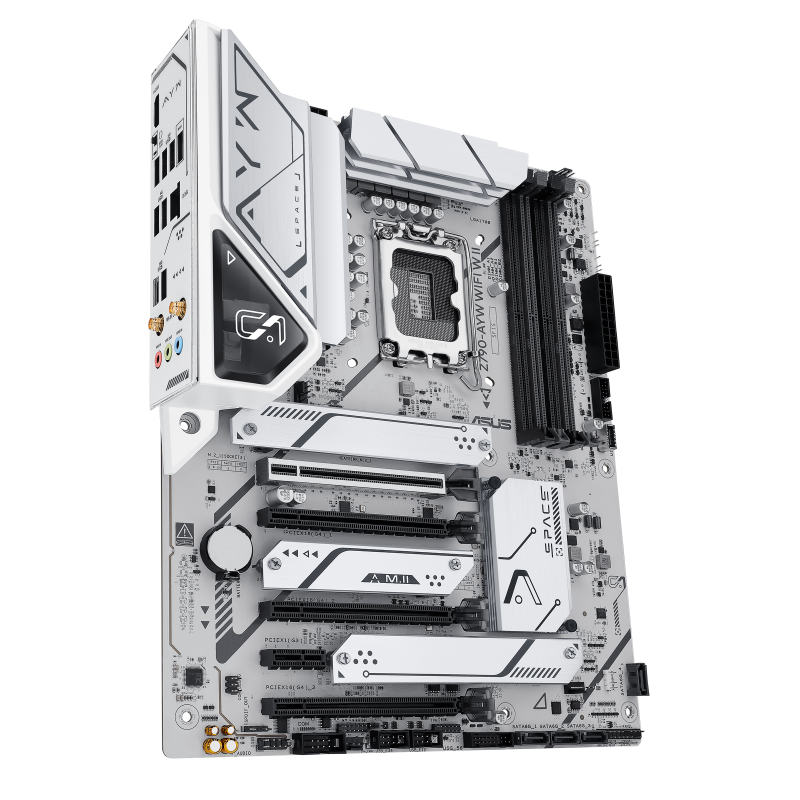

Mainboard Asus Z790-AYW WIFI W II là bo mạch chủ ATX cao cấp, được thiết kế để khai thác tối đa sức mạnh của bộ vi xử lý Intel® Core™ thế hệ 14, 13 và 12. Với chipset Intel® Z790, sản phẩm này mang đến hiệu năng vượt trội, khả năng kết nối đa dạng và độ bền bỉ đáng tin cậy, đáp ứng mọi nhu cầu của game thủ chuyên nghiệp, nhà sáng tạo nội dung và người dùng đam mê công nghệ.





Mainboard Asus Z790-AYW WIFI W II: Mainboard Cao Cấp, Hiệu Năng Vượt, Giá Tốt - BP STORE



pros

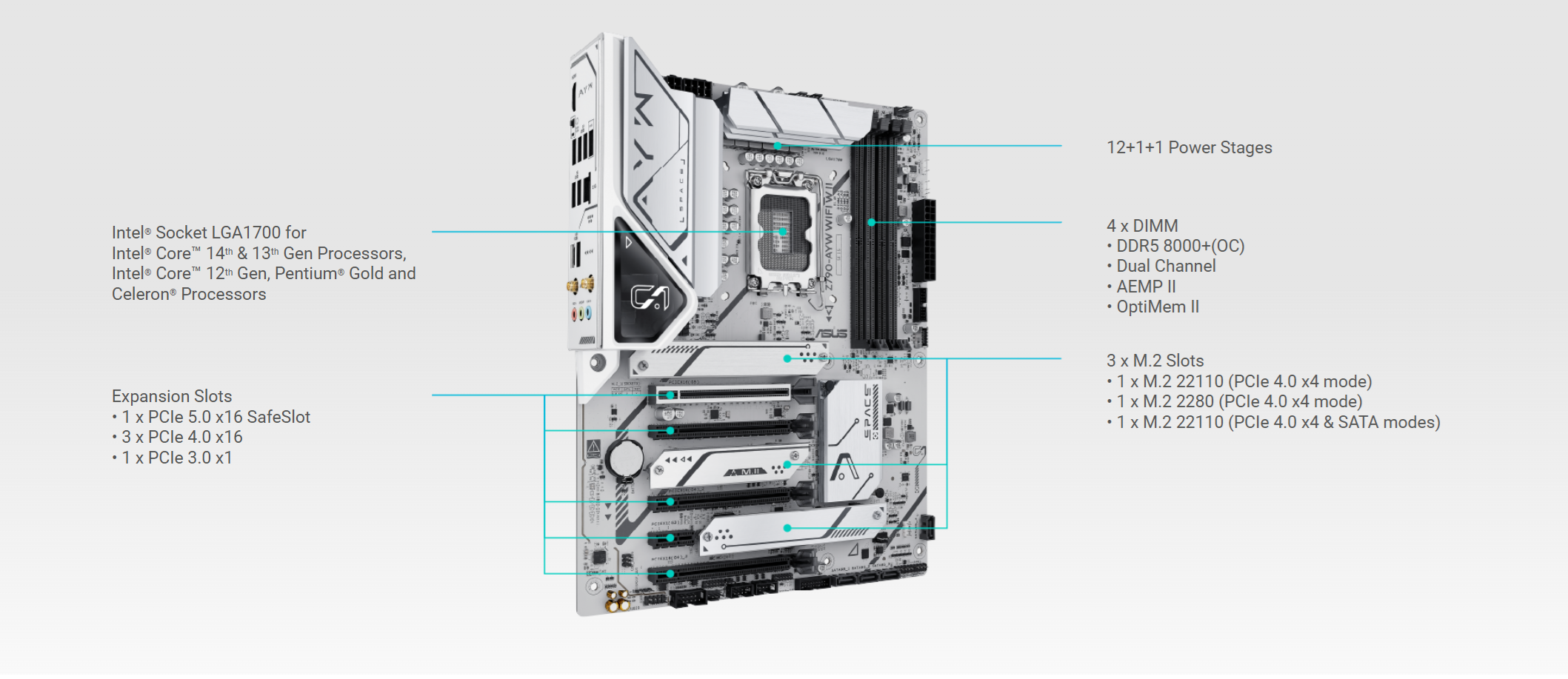

Hiệu năng mạnh mẽ:





  • Socket LGA1700:
    • Hỗ trợ bộ vi xử lý Intel® Core™ thế hệ 14, 13 và 12, Pentium® Gold và Celeron®.
  • 12+1+1 Power Stages:
    • Cung cấp nguồn điện ổn định và mạnh mẽ cho CPU, đảm bảo hiệu năng tối ưu trong mọi tác vụ.
  • DDR5 8000+(OC):
    • Hỗ trợ bộ nhớ DDR5 tốc độ cao, mang đến băng thông rộng và khả năng phản hồi vượt trội.
  • PCIe 5.0:
    • Khe cắm PCIe 5.0 x16 SafeSlot cho card đồ họa thế hệ mới, đảm bảo băng thông tối đa và hiệu năng đồ họa đỉnh cao.
  • 3 khe cắm M.2 PCIe 4.0:
    • Hỗ trợ ổ cứng SSD NVMe tốc độ cao, cho tốc độ truyền dữ liệu siêu nhanh.

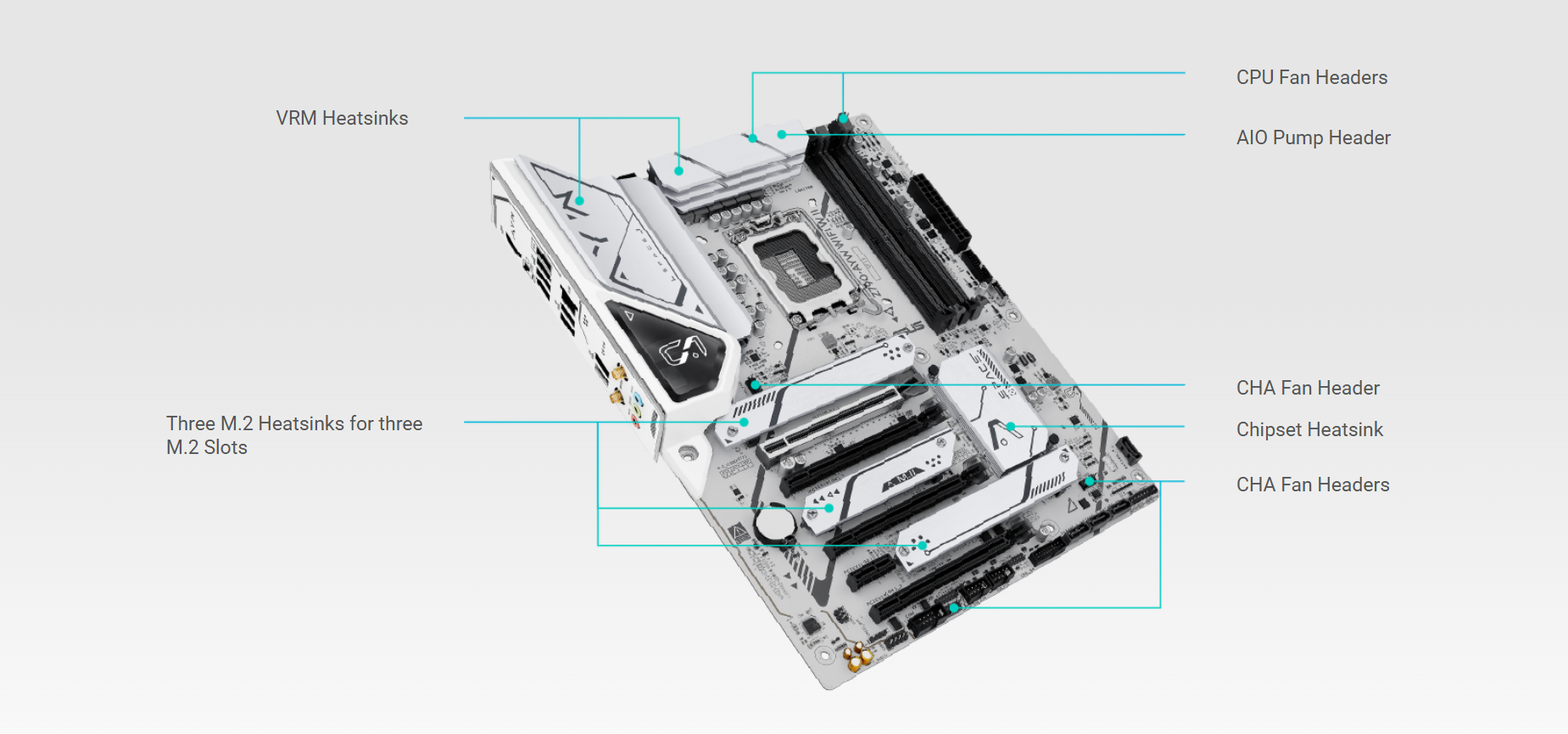

Tản Nhiệt Hiệu Quả, Vận Hành Bền Bỉ

cooling



  • Tản nhiệt VRM:
    • Tản nhiệt lớn cho VRM, đảm bảo nhiệt độ hoạt động ổn định.
  • Tản nhiệt M.2:
    • Tản nhiệt cho 3 khe cắm M.2, giúp ổ cứng SSD hoạt động mát mẻ và bền bỉ.
  • Nhiều đầu cắm quạt:
    • Đầu cắm quạt CPU, AIO Pump và CHA Fan, cho phép tùy chỉnh hệ thống tản nhiệt tối ưu.

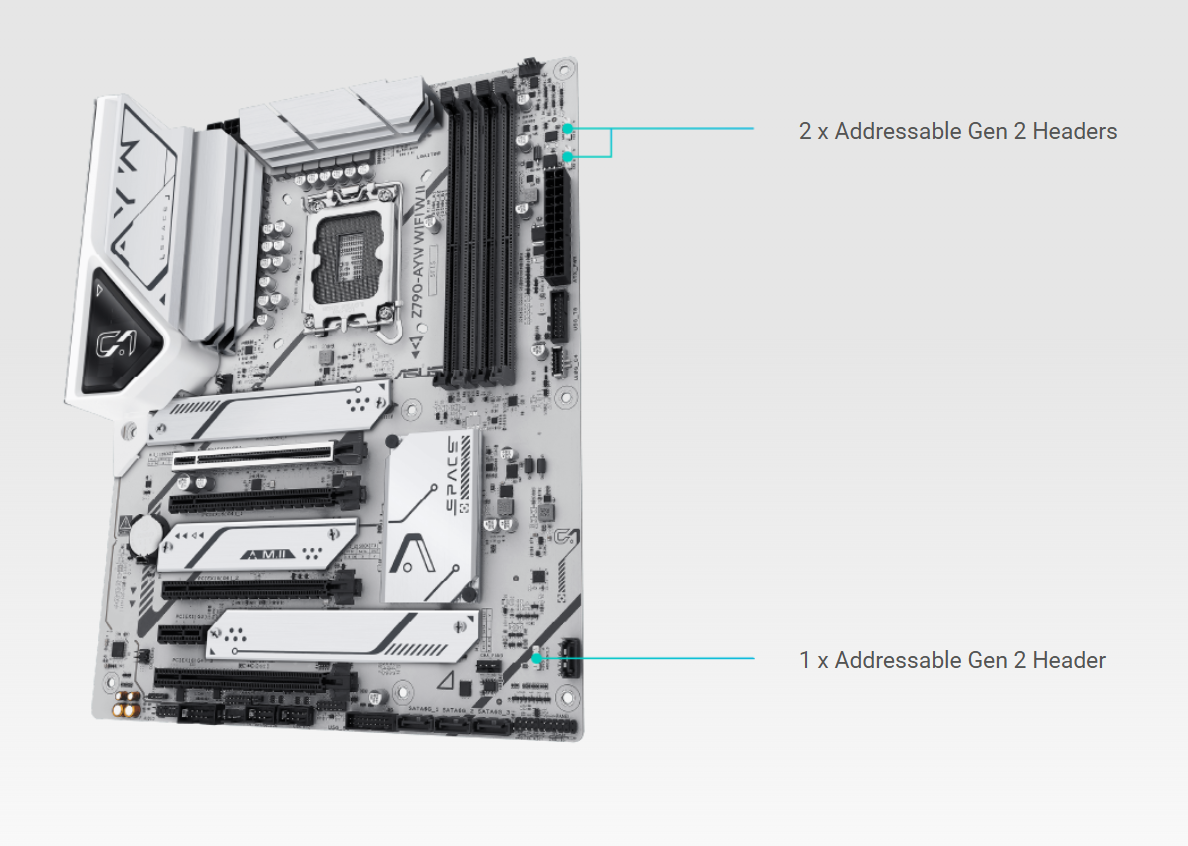

Thiết kế cá nhân hóa

connectivity

  • Đầu cắm Addressable Gen 2:
    • Hai đầu cắm Addressable Gen 2 cho phép kết nối và điều khiển đèn RGB, tạo hiệu ứng ánh sáng độc đáo cho hệ thống.

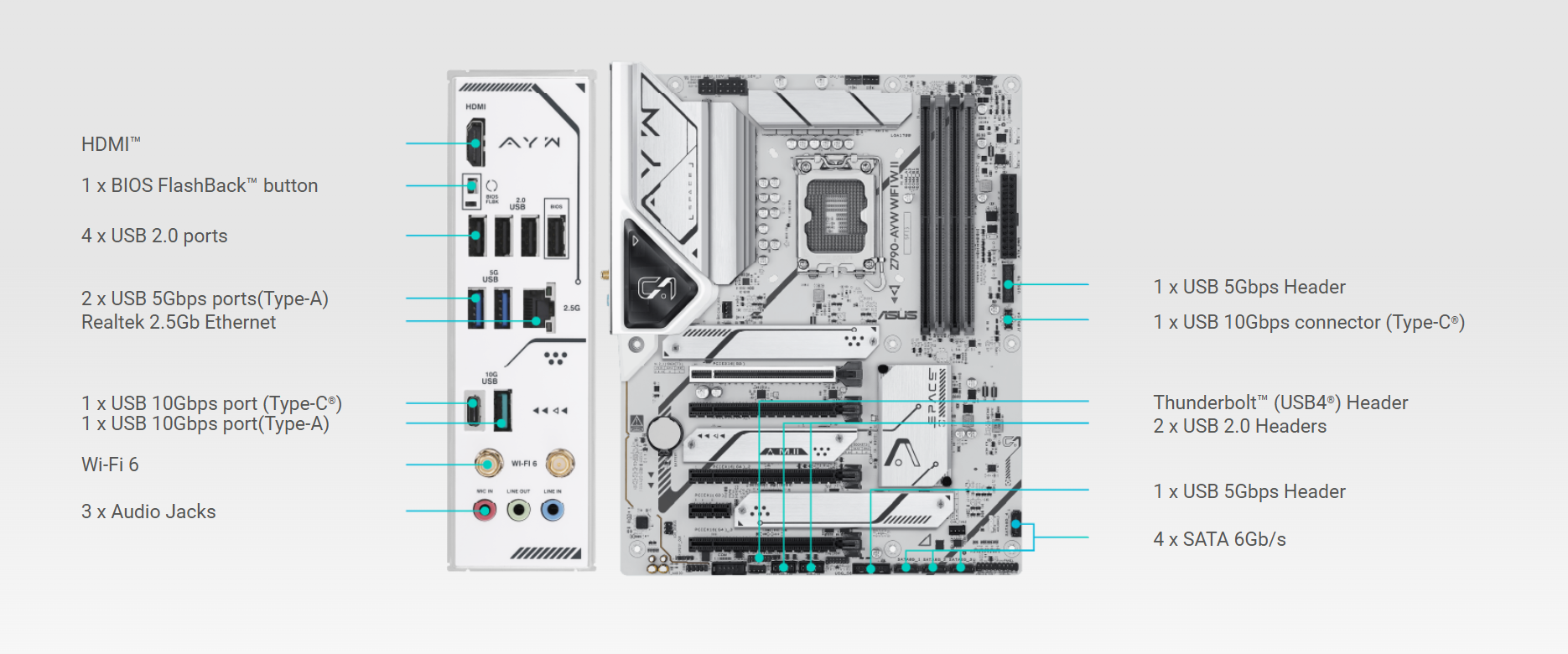

Khả năng kết nối toàn diện

connectivity



  • Wi-Fi 6:
    • Kết nối không dây tốc độ cao, cho trải nghiệm chơi game và làm việc trực tuyến mượt mà.
  • Ethernet 2.5Gb:
    • Kết nối mạng có dây tốc độ cao, đảm bảo độ trễ thấp và băng thông rộng.
  • USB đa dạng:
    • Nhiều cổng USB 2.0, USB 5Gbps, USB 10Gbps (Type-A và Type-C®) và đầu cắm Thunderbolt™ (USB4®) cho khả năng kết nối linh hoạt với mọi thiết bị.
  • HDMI™:
    • Cổng HDMI™ cho kết nối với màn hình và TV.
  • Âm thanh Realtek:
    • Cho chất lượng âm thanh tốt.

Đối Tượng Sử Dụng:

  • Game thủ chuyên nghiệp:
    • Chơi các tựa game AAA ở độ phân giải cao với tốc độ khung hình mượt mà.
  • Nhà sáng tạo nội dung:
    • Những người làm việc với các phần mềm chỉnh sửa video, đồ họa 3D, và các ứng dụng đòi hỏi hiệu năng cao.
  • Người đam mê công nghệ:
    • Những người muốn xây dựng một hệ thống máy tính hiện đại, tiên tiến nhất.
  • Người dùng chuyên nghiệp:
    • Những người làm việc về đồ họa, render video, lập trình cần các thông số kĩ thuật cao.



Kết luận

Bo mạch chủ Asus Z790-AYW WIFI W II là một bo mạch chủ ATX cao cấp, mang đến hiệu năng mạnh mẽ và khả năng kết nối toàn diện. Với thiết kế bền bỉ, tản nhiệt hiệu quả và nhiều tính năng tiên tiến, Z790-AYW WIFI W là lựa chọn lý tưởng cho những người dùng muốn xây dựng một hệ thống PC mạnh mẽ và ổn định.

Đây là sự lựa chọn lý tưởng cho những ai muốn xây dựng một hệ thống máy tính đỉnh cao, sẵn sàng cho cả hiện tại và tương lai. Tuy nhiên, cần lưu ý rằng đây là một sản phẩm cao cấp, đi kèm với mức giá tương ứng.

Nếu bạn đang tìm kiếm một bo mạch chủ không chỉ mang lại hiệu suất vượt trội mà còn thể hiện phong cách cá nhân, Asus Z790-AYW WIFI W II là một lựa chọn đáng cân nhắc.

Mua ngay Asus Z790-AYW WIFI W II tại BP Store để trải nghiệm sức mạnh vượt trội!

Bạn có bất cứ thắc mắc về sản phẩm PC, liên hệ ngay Hotline: 093 888 9100. Hoặc nhắn tin đến BP Store để giải đáp mọi thắc mắc của bạn nhé.

Mainboard Asus Z790-AYW WIFI W II

Model

Z790-AYW WIFI W II

CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/
for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

CHIPSET

Intel® Z790 Chipset

MEMORY

4 x DIMM slots, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

GRAPHICS

1 x HDMITM port**
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.

EXPANSION SLOT

Intel® Core™ Processors (14th & 13th & 12th Gen)*
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
3 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

STORAGE

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)

M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

ETHERNET

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6 (802.11 ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3*
* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 8 ports)
2 x USB 10Gbps ports (1 x Type-A+1 x Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB_E1 port, USB_E2 port and USB_E6 port share the bandwidth.
* USB_E3 port, USB_E4 port, USB_E7 port and USB_E8 port share the bandwidth.

AUDIO

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

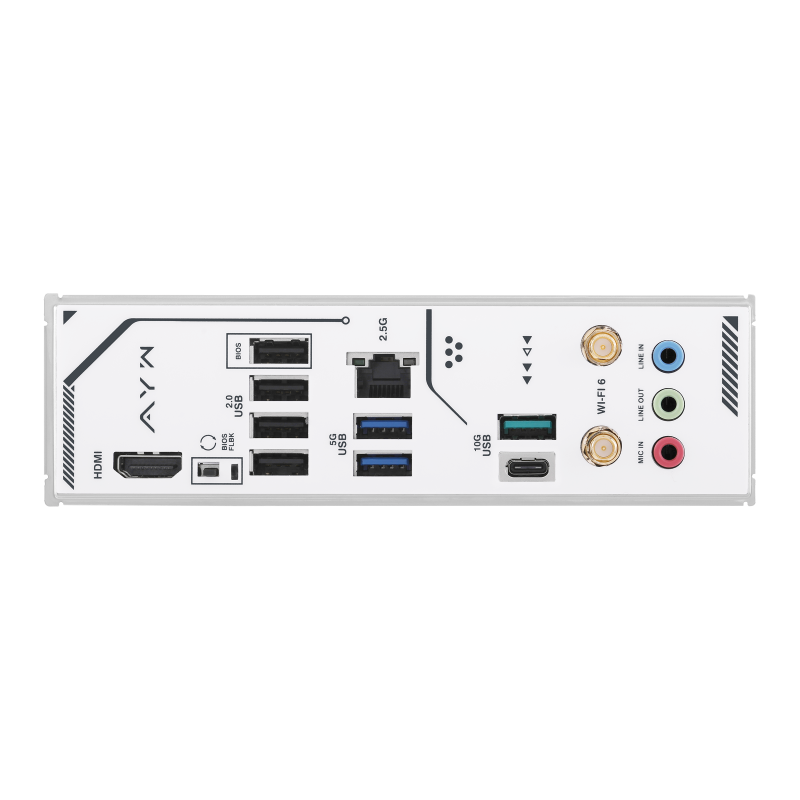

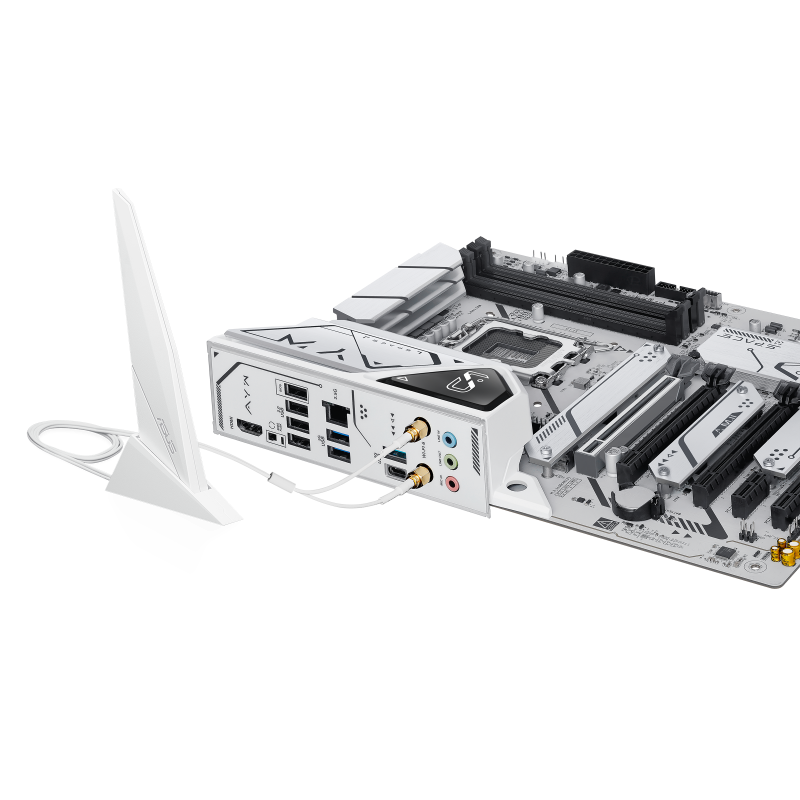

Back Panel I/O Ports

2 x USB 10Gbps ports (1 x Type-A+1 x Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMITM port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button

Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5 pin Front Panel System header
1 x Thunderbolt™ (USB4®) Header

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsinks design
ASUS EZ DIY
- BIOS FlashBack™ button
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Addressable RGB Gen 2 headers

Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancelation
ASUS DriverHub
AI Suite 3
-TurboV EVO
-PC Cleaner
-DIGI+ VRM
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

Manageability

WOL by PME, PXE

BIOS

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

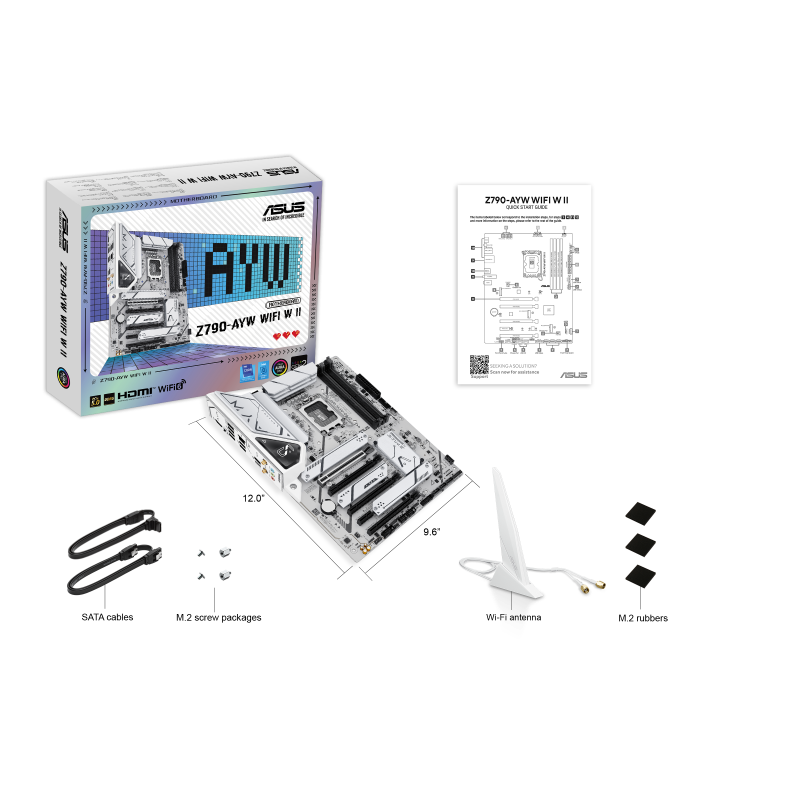

ACCESSORIES

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide

OPERATION SYSTEM

Windows® 11, Windows® 10 64-bit

FORM FACTOR

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

WARRANTY

36 Months
