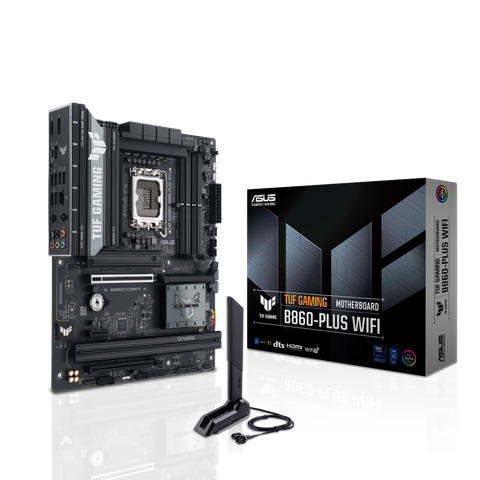

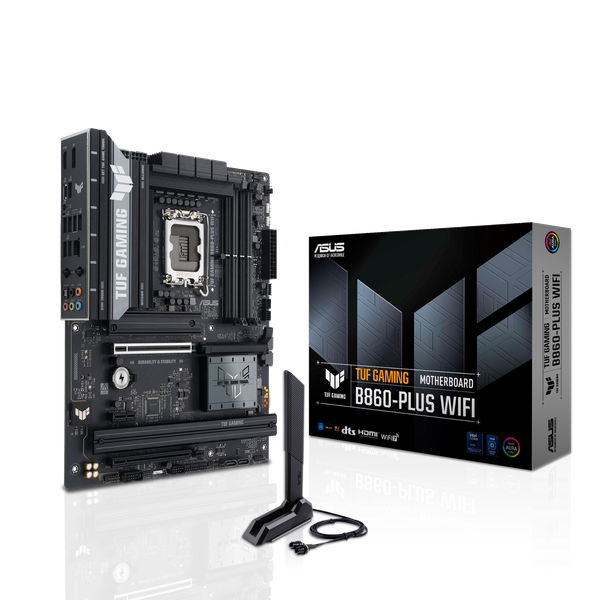

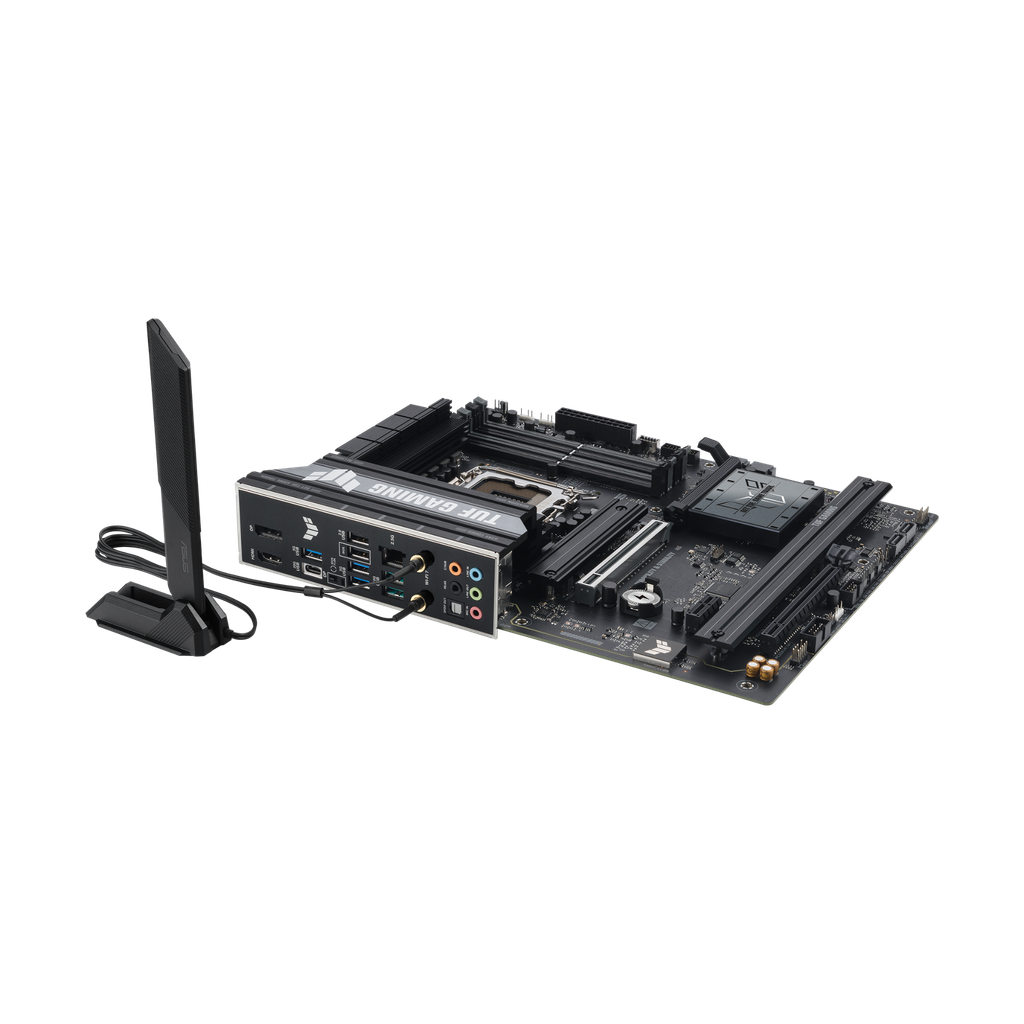

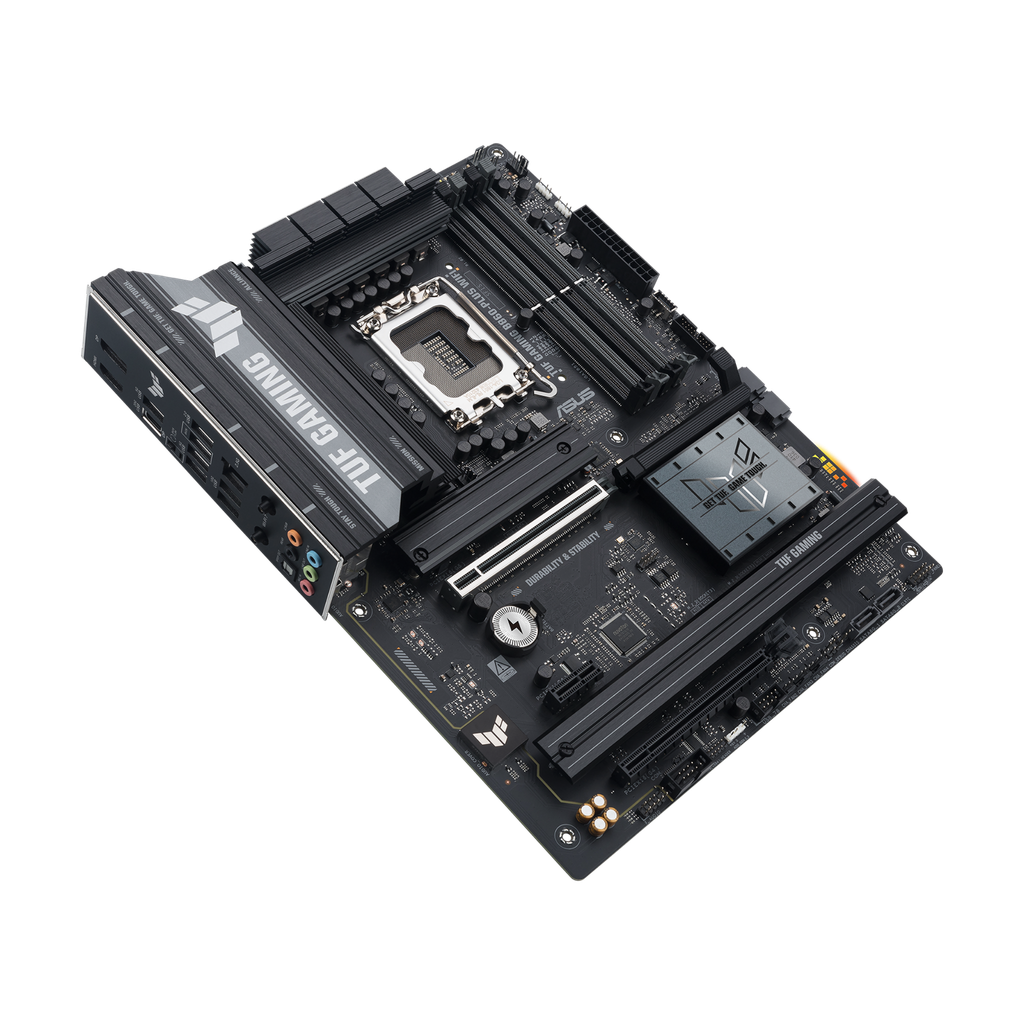

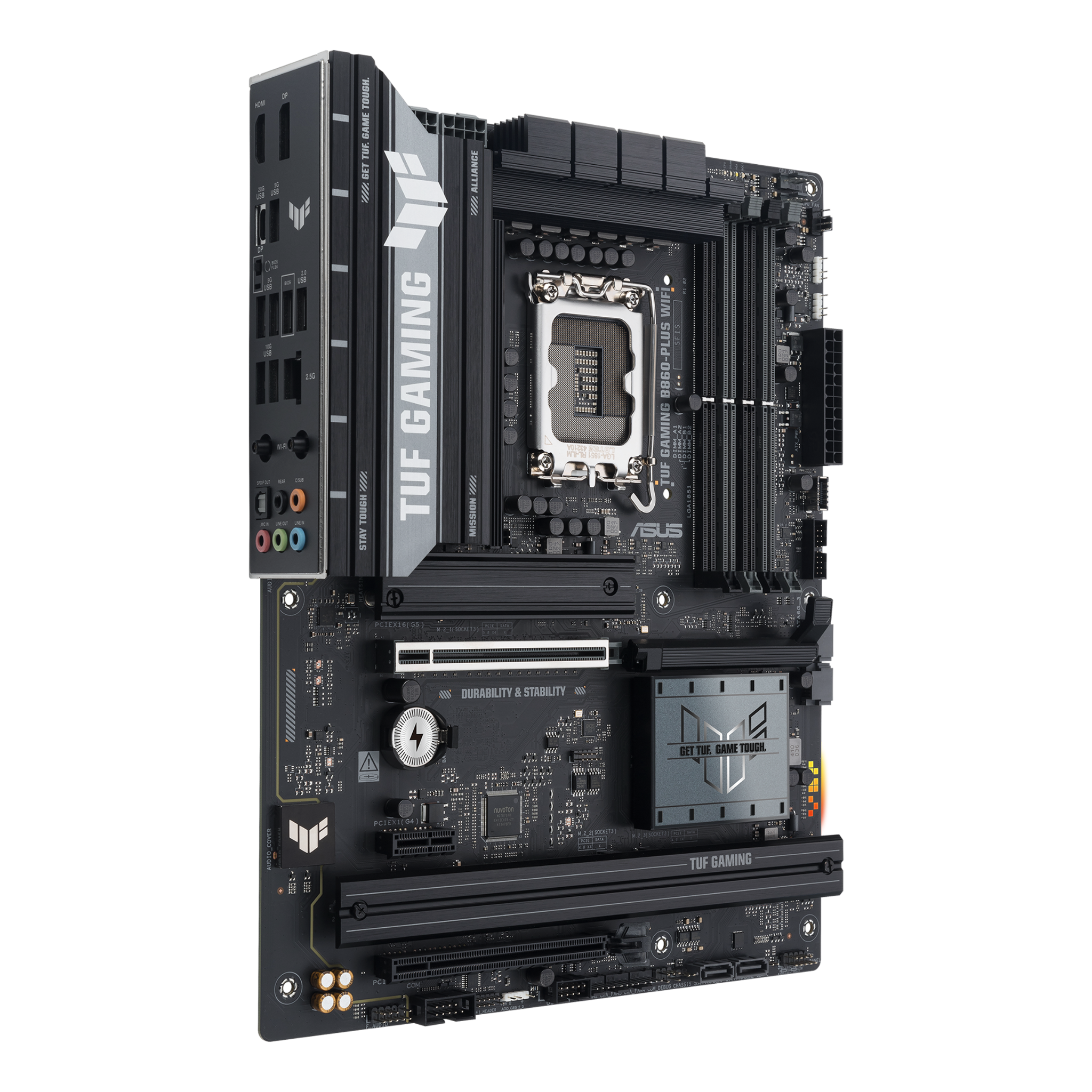

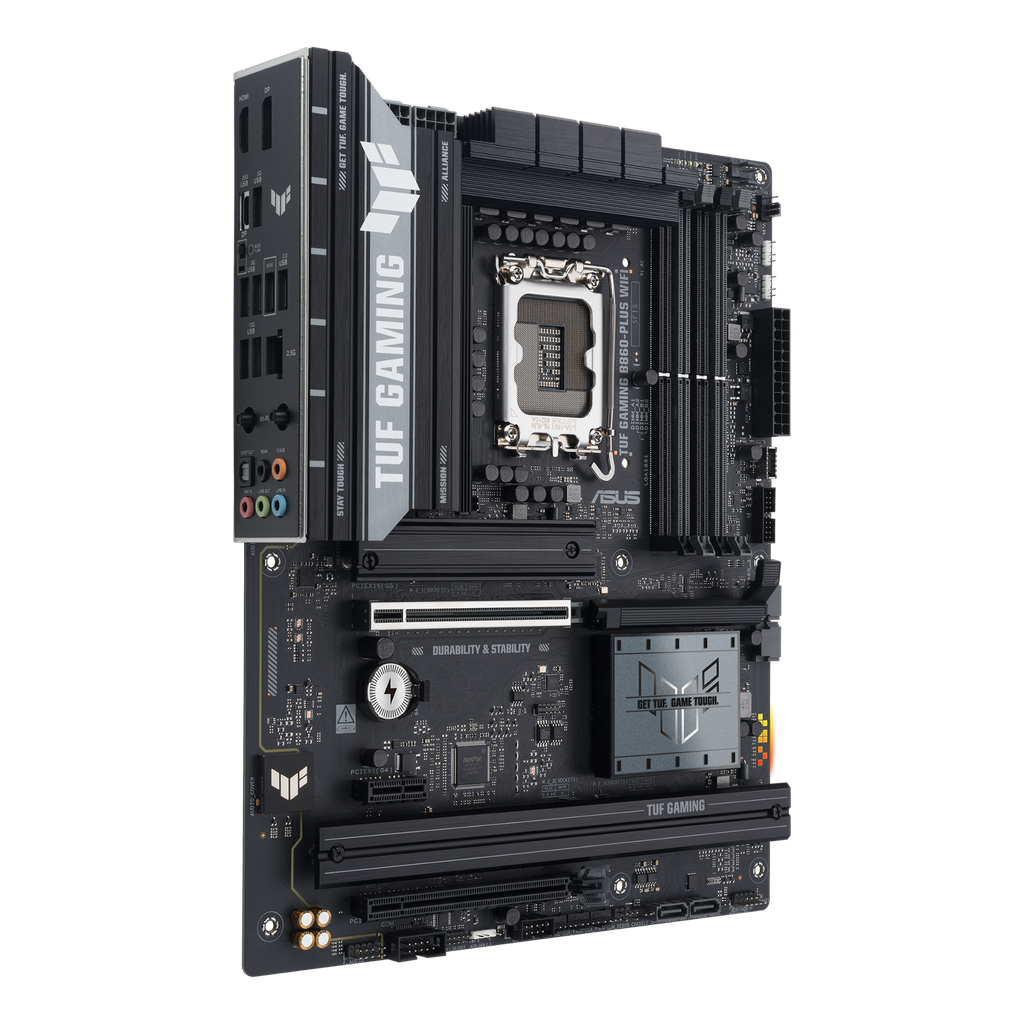

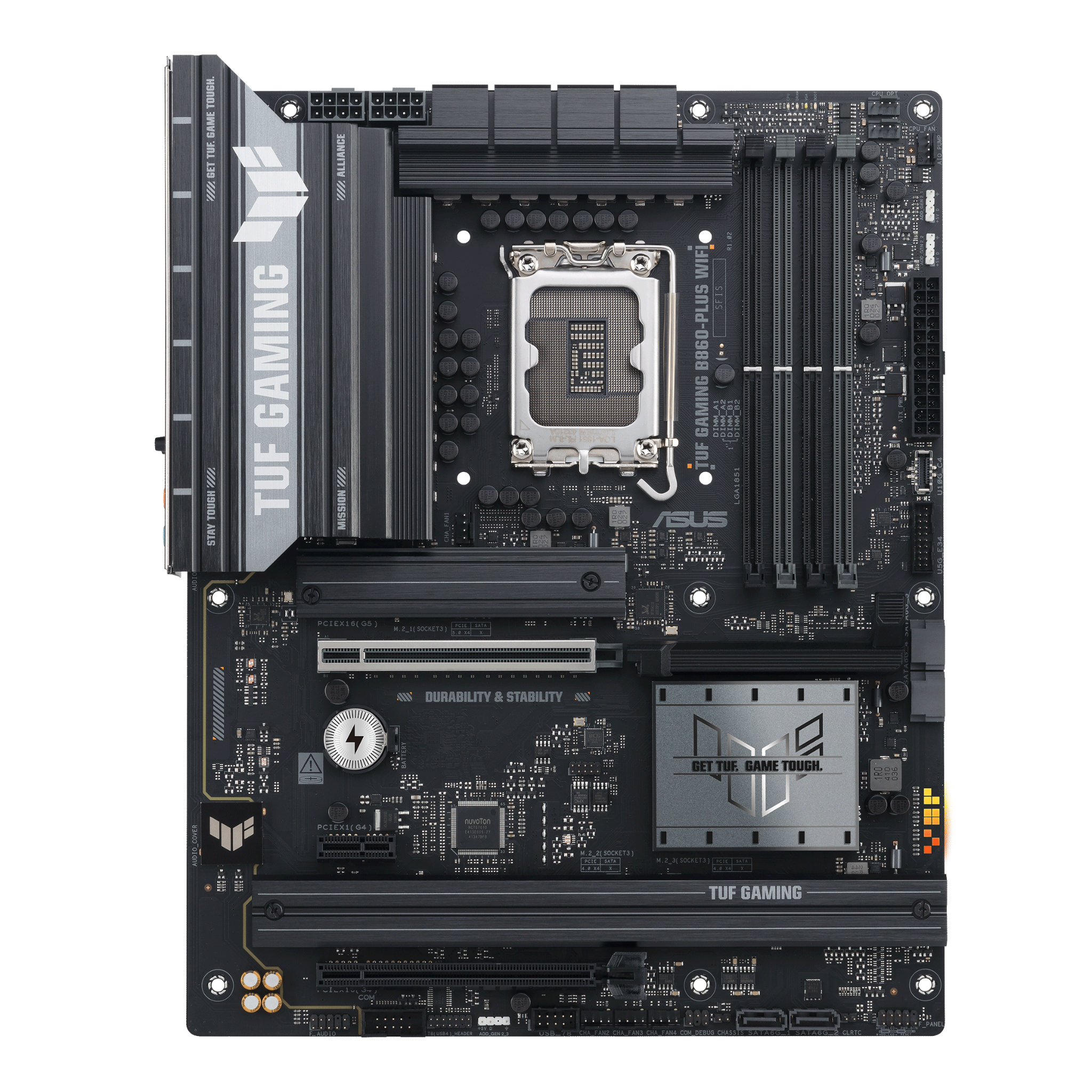

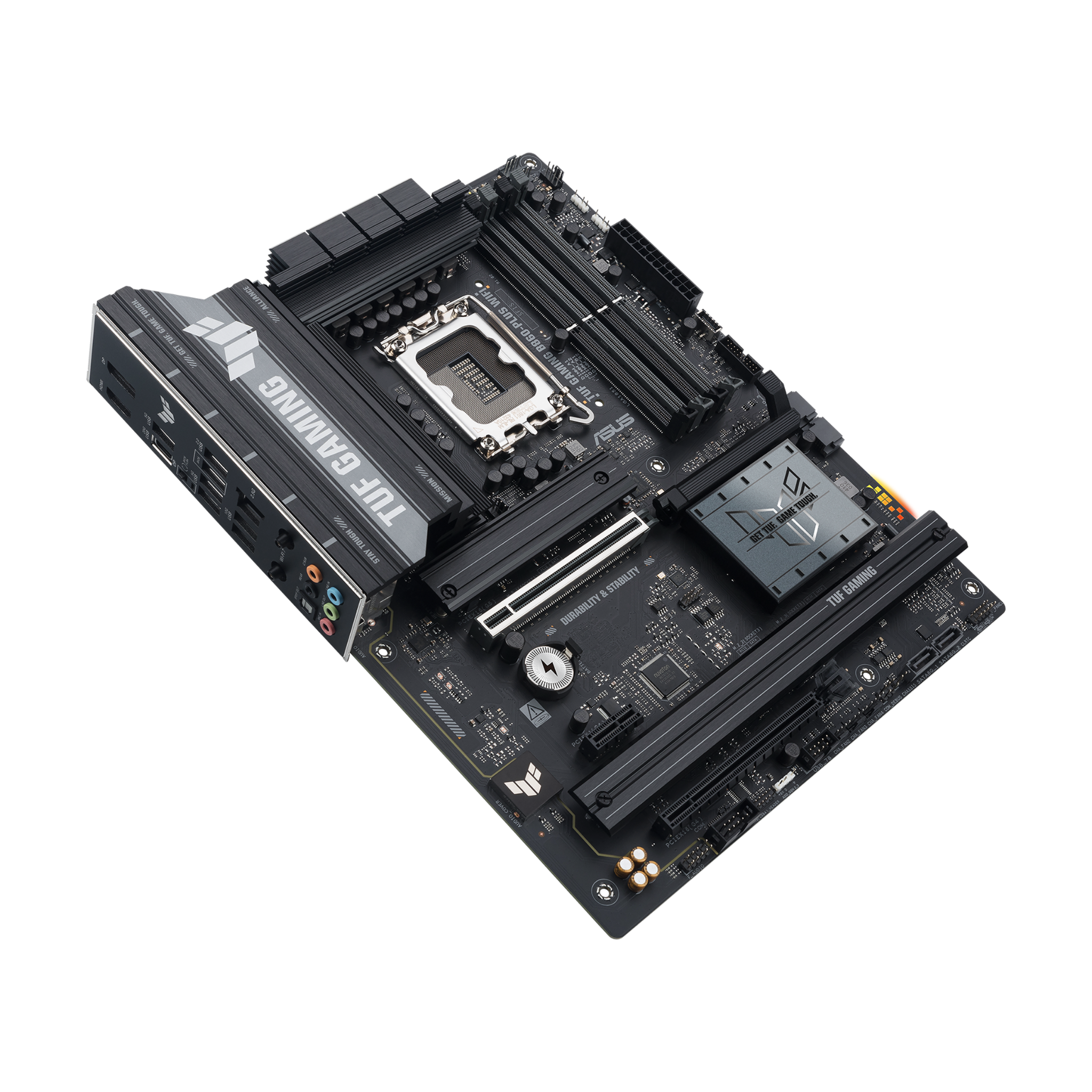

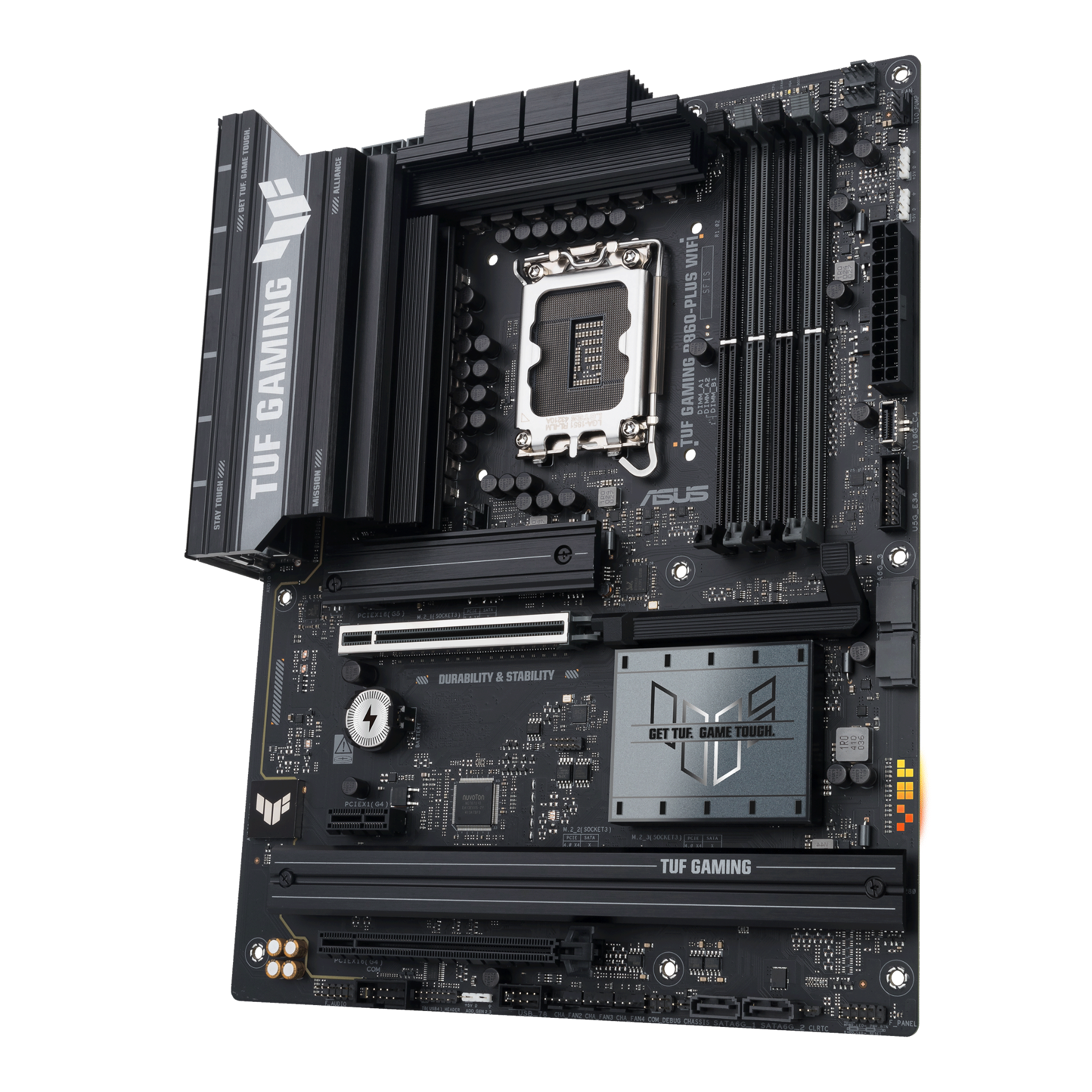

Mainboard Asus TUF GAMING B860-PLUS WIFI

Thương hiệu: ASUS Mã sản phẩm: Đang cập nhật
So sánh
6,890,000₫
Bảo hành: 36 tháng Tình trạng: Mới

Mainboard Asus TUF GAMING B860-PLUS WIFI DỊCH VỤ NỔI BẬT

  • DỊCH VỤ THU CŨ TẠI NHÀ - ĐỔI MỚI TẬN NƠI
  • DỊCH VỤ VỆ SINH LẮP ĐẶT PC TẠI NHÀ
  • MIỄN PHÍ LẮP ĐẶT TẠI SHOWROOM

Đặt ngay 0938 889 100 (8:30 - 18:00)

  • Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
    Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
  • Hàng chính hãng 100%
    Hàng chính hãng 100%
  • Trả góp qua thẻ tín dụng Visa, Master, JCB
    Trả góp qua thẻ tín dụng Visa, Master, JCB
  • Đổi trả 100% trong 7 ngày
    Đổi trả 100% trong 7 ngày
Phương thức thanh toán

Mainboard Asus TUF GAMING B860-PLUS WIFI

ASUS TUF GAMING B860-PLUS WIFI: Nền tảng vững chắc cho hệ thống gaming và sáng tạo đỉnh cao - BP STOREMainboard Asus TUF GAMING B860-PLUS WIFI

Bo mạch chủ ASUS TUF GAMING B860-PLUS WIFI là một bo mạch chủ ATX được thiết kế dành riêng cho các game thủ và nhà sáng tạo nội dung. Tìm hiểu ngay tại BP STORE!

Giới thiệu:

Bo mạch chủ ASUS TUF GAMING B860-PLUS WIFI cung cấp sự kết hợp hoàn hảo giữa hiệu năng mạnh mẽ, độ bền cao, khả năng kết nối ấn tượng và tính năng vượt trội.

Điểm nổi bật:

  • Hiệu năng vượt trội:
    • Hỗ trợ bộ vi xử lý Intel Core Ultra thế hệ mới nhất, mang đến hiệu năng xử lý cực kỳ mạnh mẽ.
    • Khe cắm PCIe 5.0 x16 cho card đồ họa, đảm bảo tốc độ truyền dữ liệu nhanh chóng và ổn định.
    • Hỗ trợ bộ nhớ DDR5 với tốc độ cao lên đến 8666+ MT/s (OC), giúp tăng cường hiệu suất tổng thể của hệ thống.
  • Kết nối không dây siêu tốc:
    • Wi-Fi 7 mới nhất mang đến tốc độ truyền dữ liệu lên đến 2.9Gbps, lý tưởng cho chơi game online, streaming mượt mà và tải xuống file nhanh chóng.
    • Bluetooth® v5.4 hỗ trợ kết nối ổn định với các thiết bị ngoại vi không dây.
  • Độ bền cao:
    • Công nghệ TUF Gaming: Đảm bảo độ bền và ổn định trong điều kiện khắc nghiệt.
    • VRM được tăng cường, giúp cung cấp nguồn điện ổn định cho CPU.
  • Nhiều tính năng:
    • ASUS Q-Design: Các tính năng thiết kế thông minh giúp quá trình lắp ráp dễ dàng hơn.
    • TUF LANGuard: Bảo vệ kết nối mạng, đảm bảo độ ổn định trong quá trình chơi game trực tuyến.
    • 2.5Gb Ethernet: Cung cấp tốc độ truyền dữ liệu qua mạng LAN nhanh hơn.
    • Aura Sync: Tùy chỉnh ánh sáng RGB để tạo nên một hệ thống máy tính độc đáo.
  • Lưu trữ linh hoạt:
    • Hỗ trợ 3 khe cắm M.2 và 4 cổng SATA 6Gb/s, đáp ứng mọi nhu cầu lưu trữ của bạn.
  • USB đa dạng:
    • Cung cấp nhiều cổng USB với các chuẩn kết nối khác nhau (USB 20Gbps, USB 10Gbps, USB 5Gbps và USB 2.0) để kết nối với nhiều thiết bị ngoại vi.

Thông số kỹ thuật:

  • Chipset: Intel B860
  • Socket: LGA1851
  • Bộ nhớ: 4 khe DDR5, tối đa 256GB
  • Khe cắm mở rộng: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x1
  • Lưu trữ: 3 x M.2, 4 x SATA 6Gb/s
  • Mạng: Realtek 2.5Gb Ethernet, Wi-Fi 7
  • Âm thanh: Realtek 7.1, Bluetooth® v5.4
  • Các tính năng khác: ASUS Q-Design, TUF LANGuard, Aura Sync...

Đối tượng sử dụng

  • Game thủ: Trải nghiệm chơi game mượt mà ở độ phân giải cao với cài đặt đồ họa tối đa.
  • Nhà sáng tạo nội dung: Render video, thiết kế đồ họa, chỉnh sửa video chuyên nghiệp.
  • Người dùng cần hiệu năng cao: Làm việc, học tập và giải trí với hiệu suất tối ưu.

Kết luận:

ASUS TUF GAMING B860-PLUS WIFI là một lựa chọn tuyệt vời cho những ai đang tìm kiếm một bo mạch chủ mạnh mẽ, đáng tin cậy và đầy đủ tính năng. Với Wi-Fi 7 mới nhất, hiệu năng vượt trội và các tùy chọn kết nối linh hoạt, bo mạch chủ này sẽ đáp ứng mọi nhu cầu của bạn để xây dựng một hệ thống máy tính chơi game đỉnh cao hoặc phục vụ cho công việc sáng tạo.

Order ASUS TUF GAMING B860-PLUS WIFI tại BP Store để trải nghiệm sức mạnh tối cao!

Bạn có bất cứ thắc mắc về sản phẩm PC, liên hệ ngay Hotline: 093 888 9100. Hoặc nhắn tin đến BP Store để giải đáp mọi thắc mắc của bạn nhé.

Mainboard Asus TUF GAMING B860-PLUS WIFI

Mainboard Asus TUF GAMING B860-PLUS WIFI

Model

TUF GAMING B860-PLUS WIFI

CPU

Support Intel® Core™ Ultra Processors(Series 2) , LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Bộ Chip

Intel® B860 Chipset

Bộ nhớ

4 x DIMM slots, max. 256GB, DDR5
Support up to 8666+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*"
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
**Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Đồ họa

1 x DisplayPort**
1 x HDMI™ port***
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
****Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***** VGA resolution support depends on processors' or graphic cards' resolution.
******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Khe cắm mở rộng

Intel® Core™ Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slot
Intel® B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)*
1 x PCIe 4.0 x1 slot*
* PCIEX16(G4) shares bandwidth with PCIEX1(G4). When PCIEX1(G4) runs at PCIe x1 mode, PCIEX16(G4) will only run at PCIe x2 mode.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Lưu trữ

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(Series 2)*

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 2.5Gb Ethernet
TUF LANGuard

Wireless & Bluetooth

Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require  24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
2 x USB 10Gbps ports (2 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 5 ports)
1 x USB USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

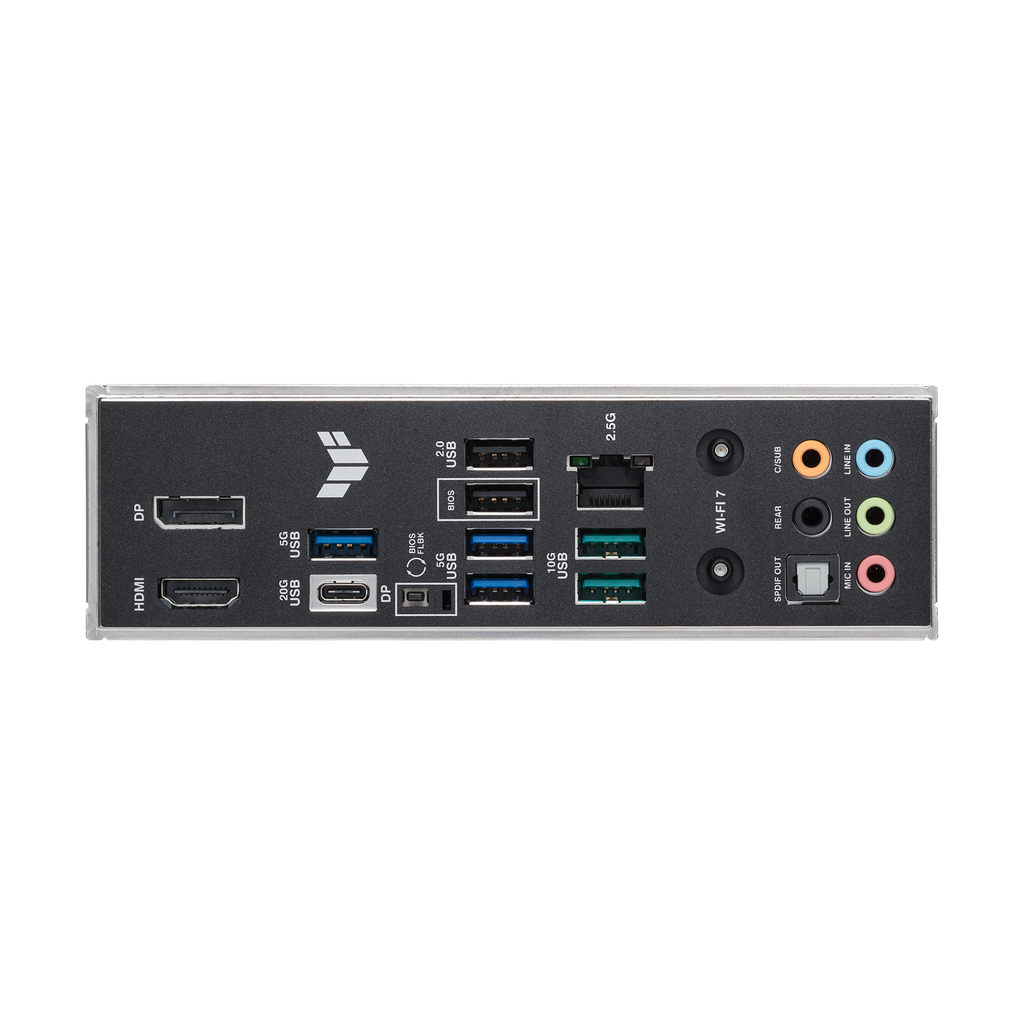

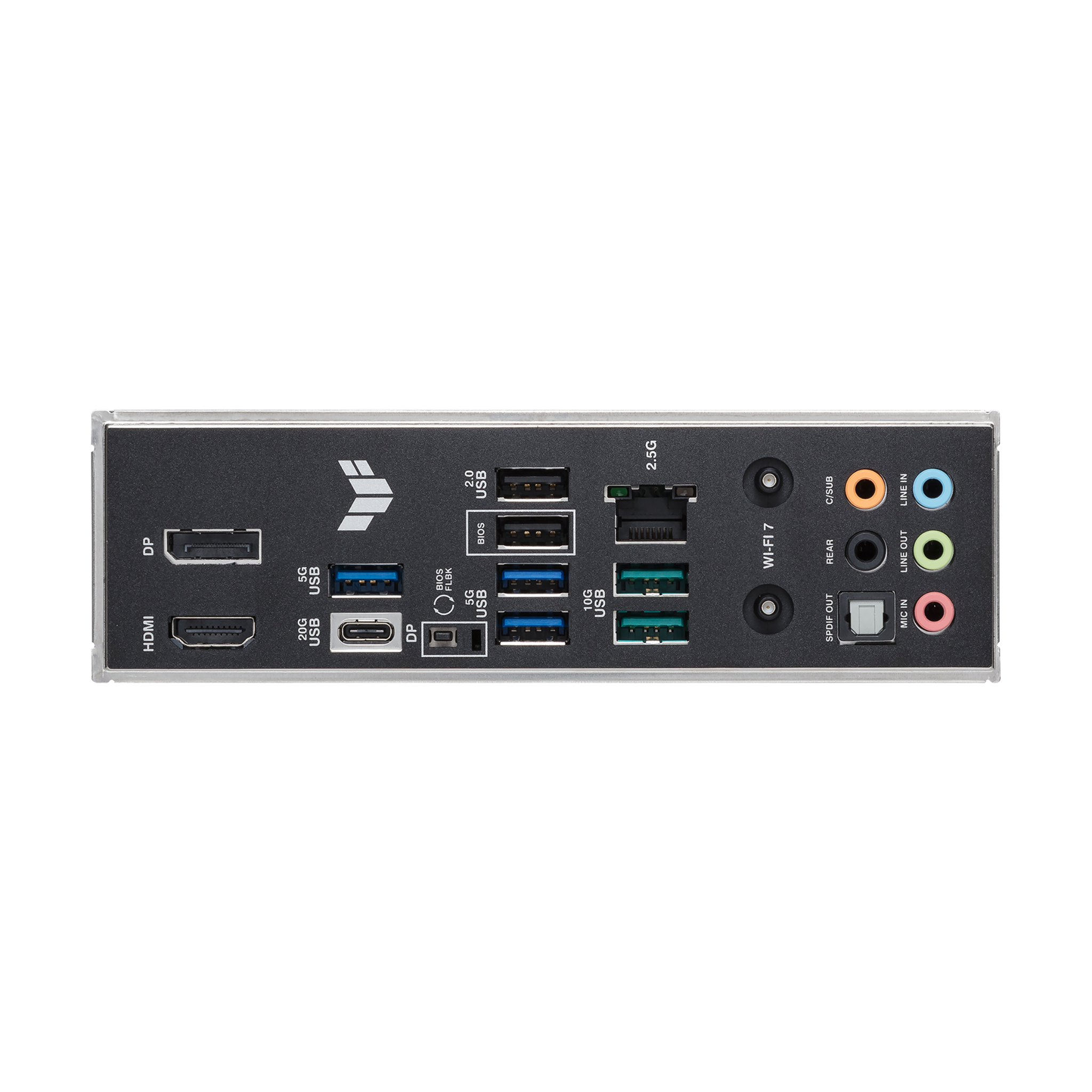

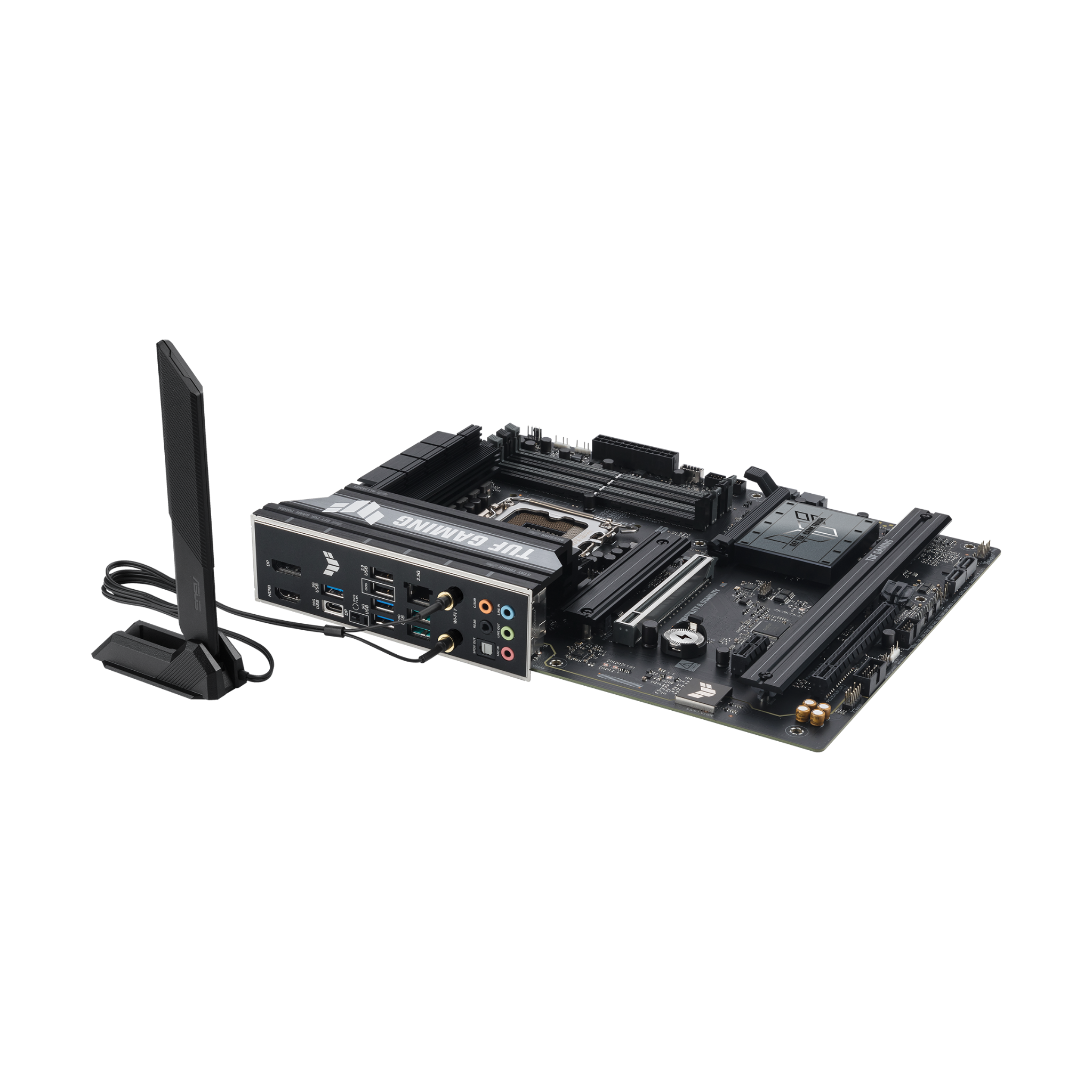

Cổng I/O mặt sau

1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
2 x USB 10Gbps ports (2 x USB Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
Đầu nối I/O nội bộ

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header

Các tính năng đặc biệt

ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers

Tính năng phần mềm

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
ASUS DriverHub
ASUS GlideX
TUF GAMING CPU-Z
Adobe Creative Cloud (Free Trial)
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

BIOS

2 x 128 Mb Flash ROM, UEFI AMI BIOS

Khả năng quản lý

WOL by PME, PXE

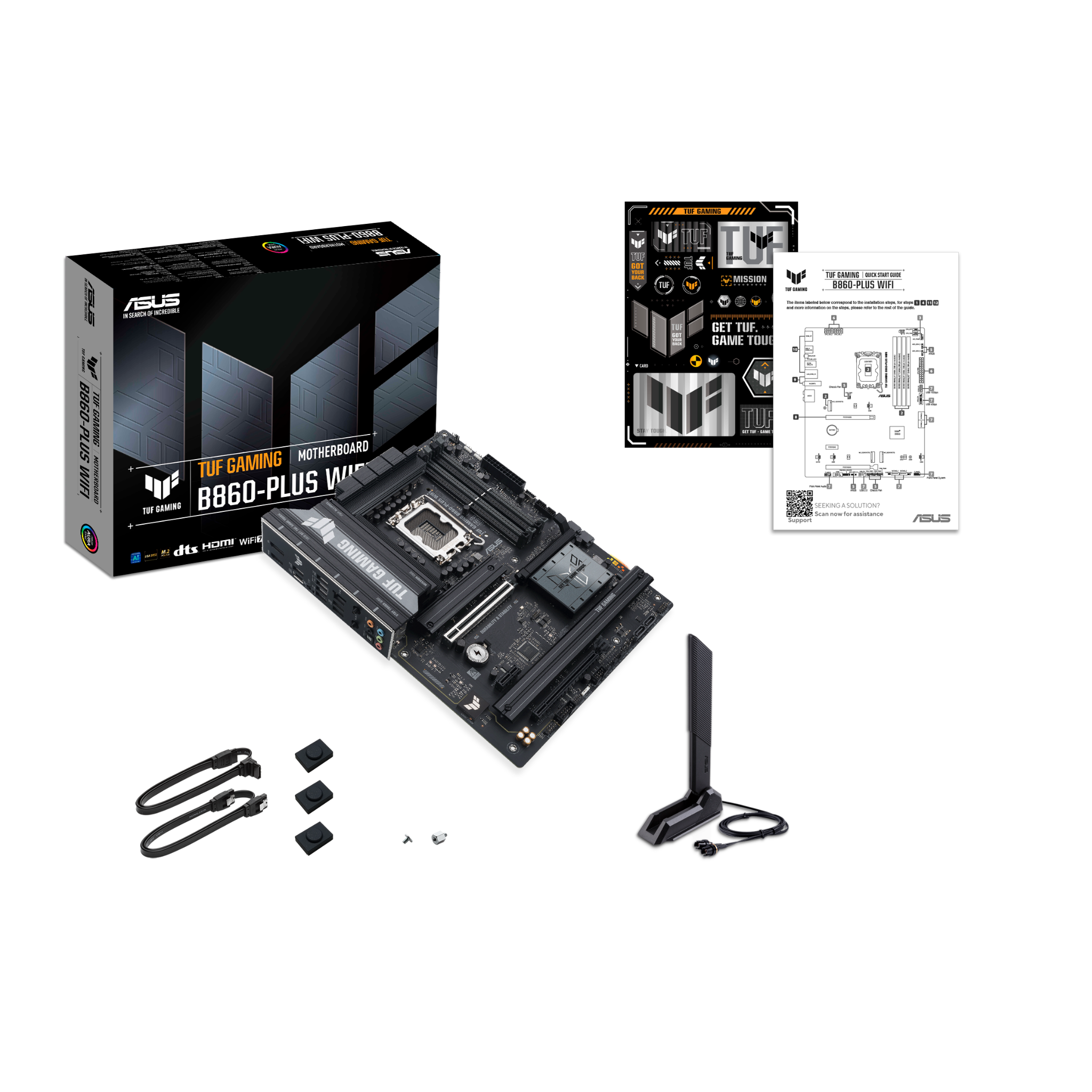

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x Quick start guide

Hệ điều hành

Windows® 11 (22H2 & later)

Form Factor


ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm)

Warranty

36 months
