Mainboard Asus TUF Gaming B850 Plus WIFI

Thương hiệu: ASUS Mã sản phẩm: Đang cập nhật
So sánh
8,090,000₫ 8,790,000₫
-8%
(Tiết kiệm: 700,000₫)
Bảo hành: 36 tháng Tình trạng: Mới

Mainboard Asus TUF Gaming B850 Plus WIFI DỊCH VỤ NỔI BẬT

  • DỊCH VỤ THU CŨ TẠI NHÀ - ĐỔI MỚI TẬN NƠI
  • DỊCH VỤ VỆ SINH LẮP ĐẶT PC TẠI NHÀ
  • MIỄN PHÍ LẮP ĐẶT TẠI SHOWROOM

Đặt ngay 0938 889 100 (8:30 - 18:00)

  • Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
    Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
  • Hàng chính hãng 100%
    Hàng chính hãng 100%
  • Trả góp qua thẻ tín dụng Visa, Master, JCB
    Trả góp qua thẻ tín dụng Visa, Master, JCB
  • Đổi trả 100% trong 7 ngày
    Đổi trả 100% trong 7 ngày
Phương thức thanh toán

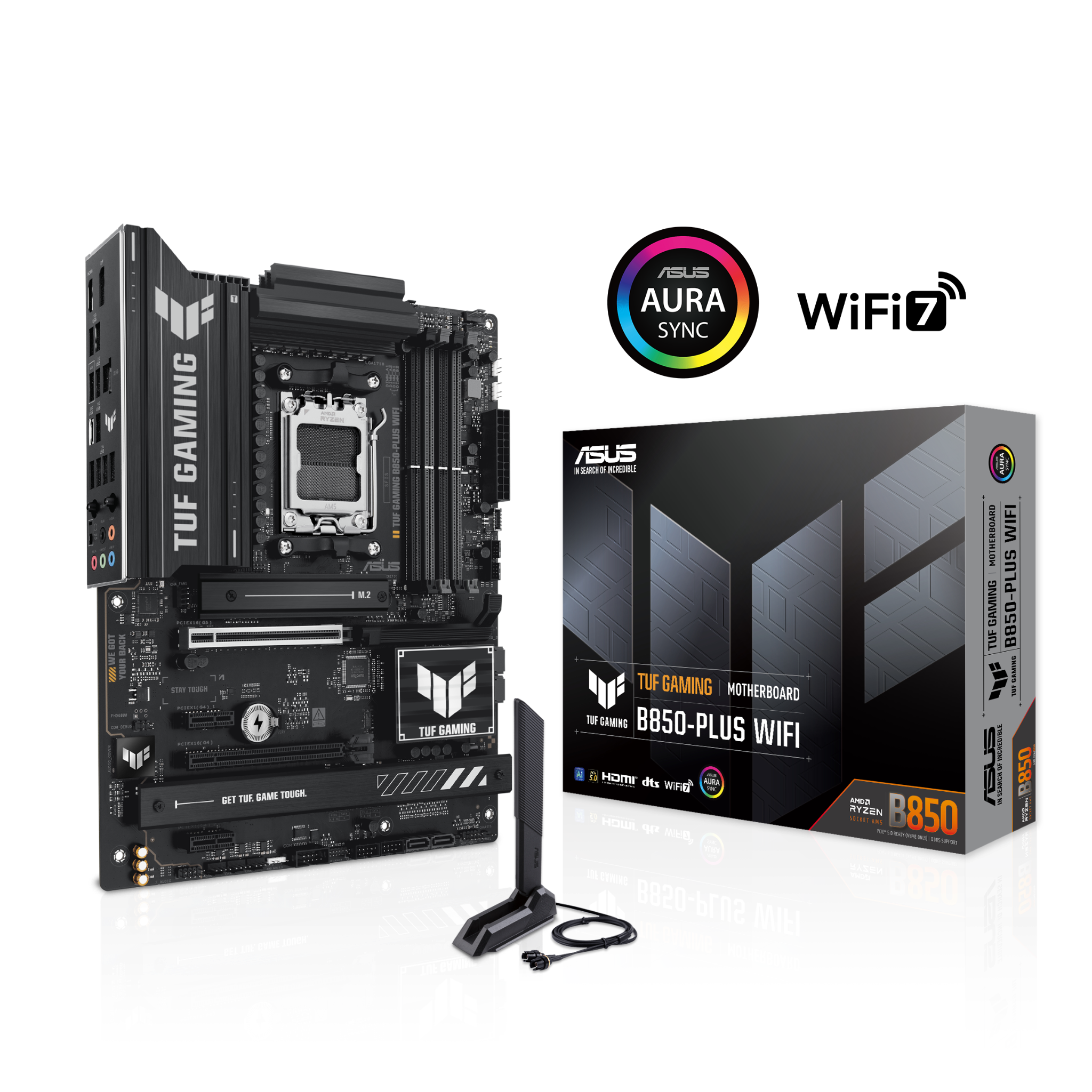

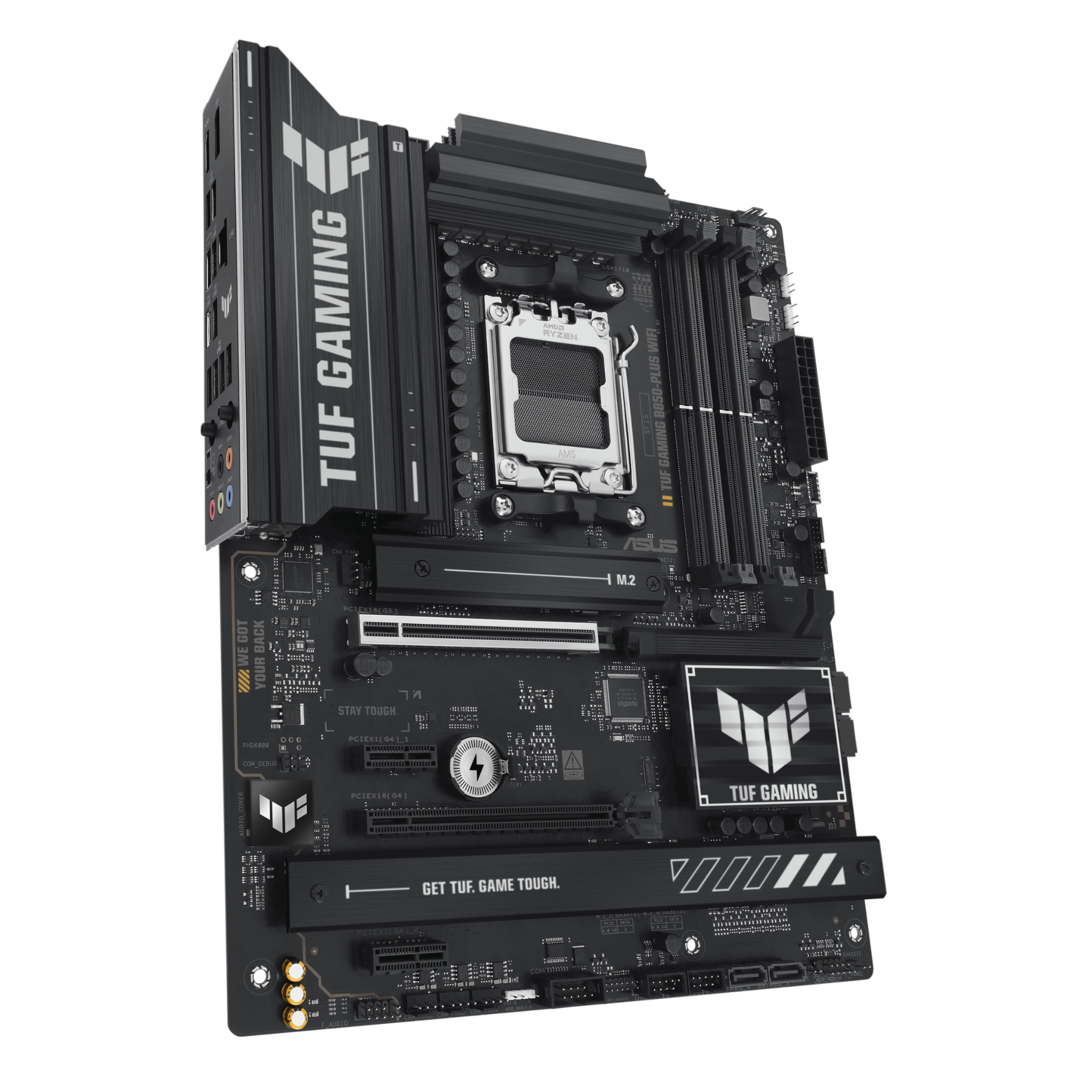

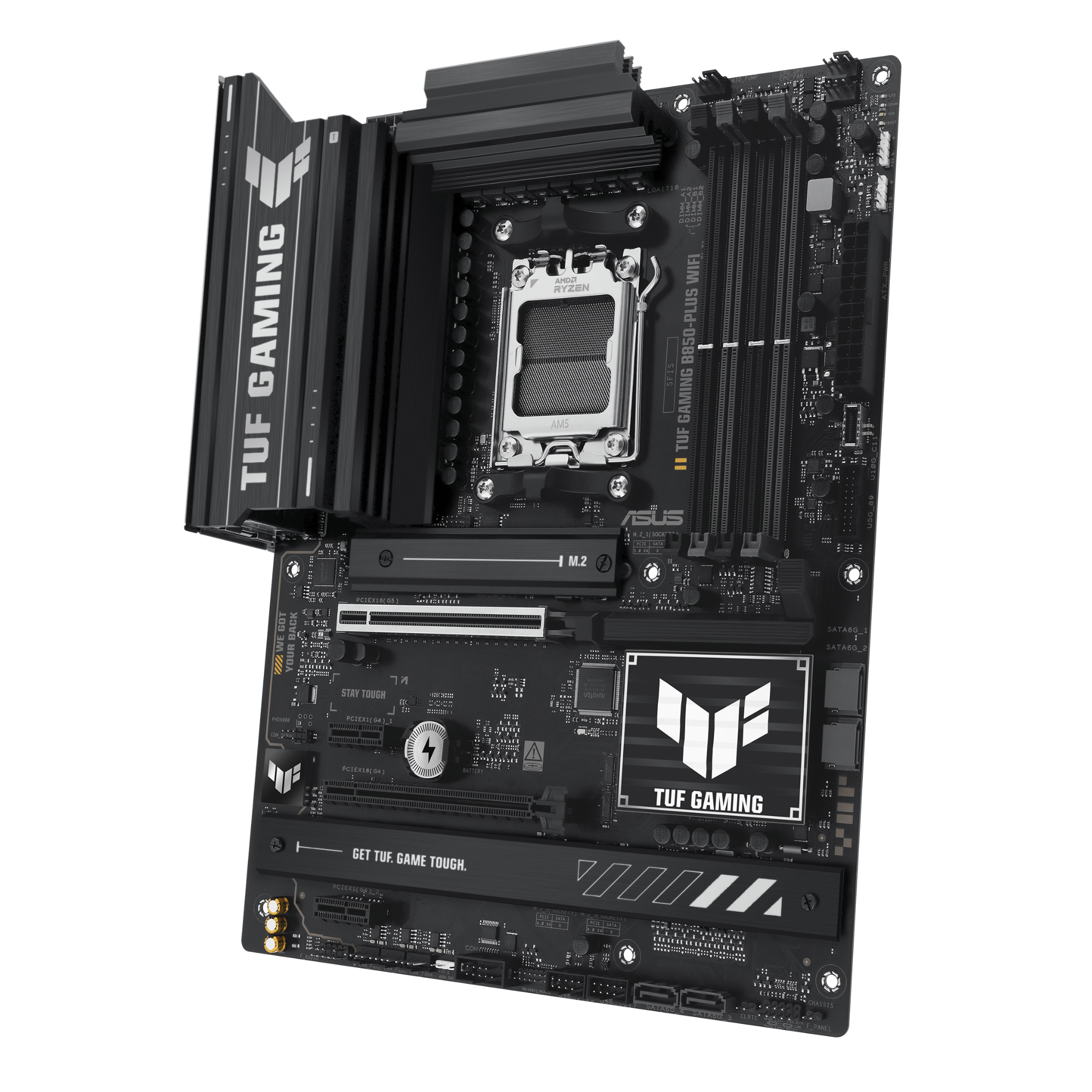

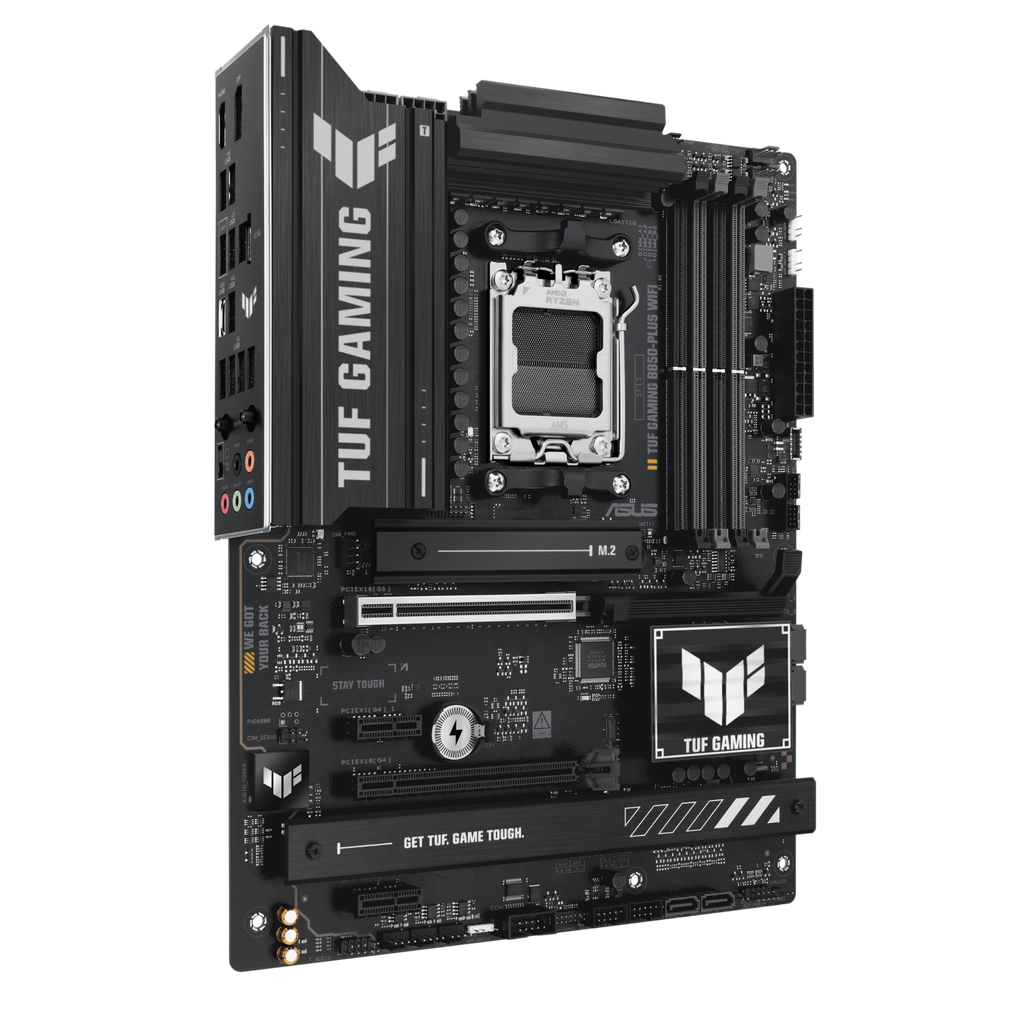

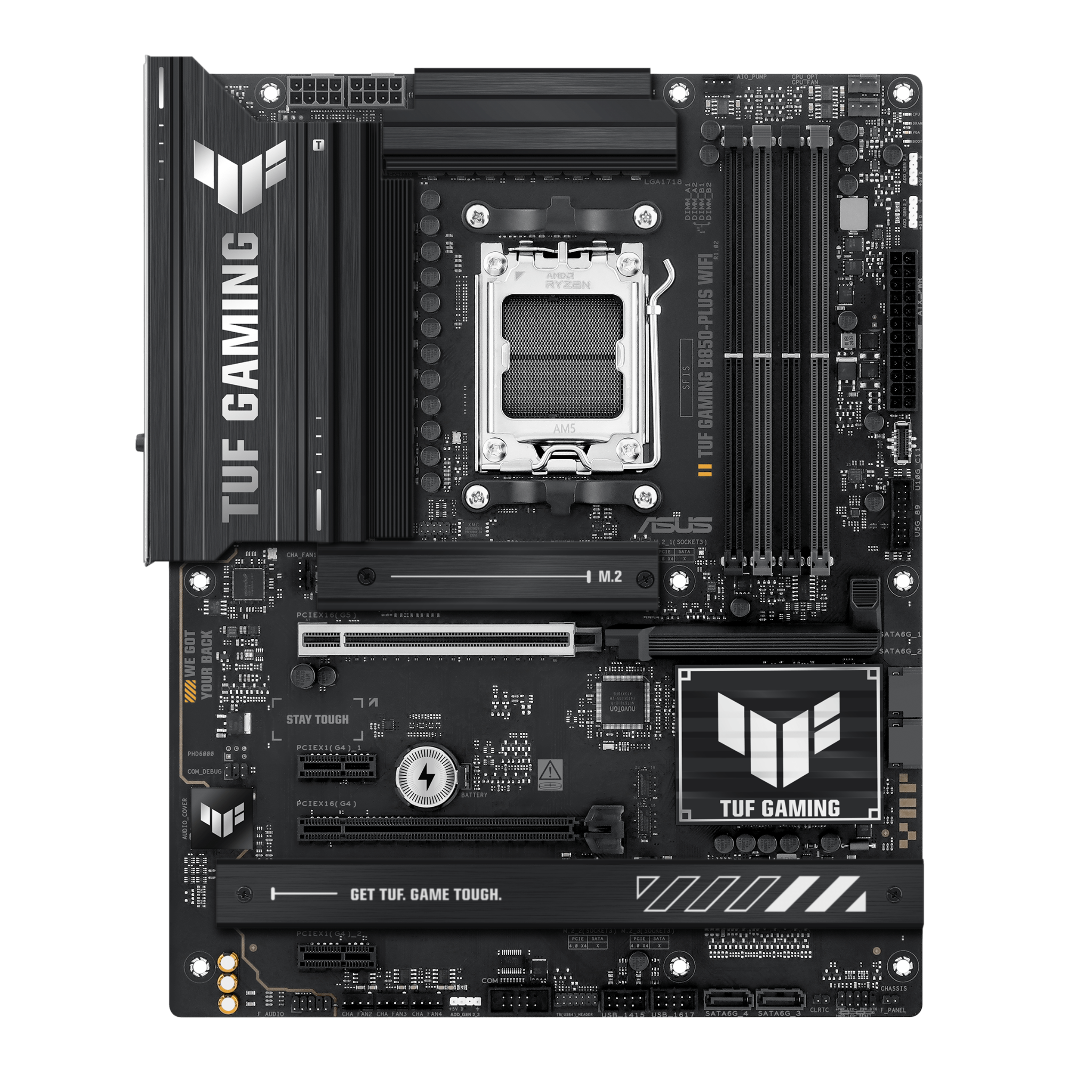

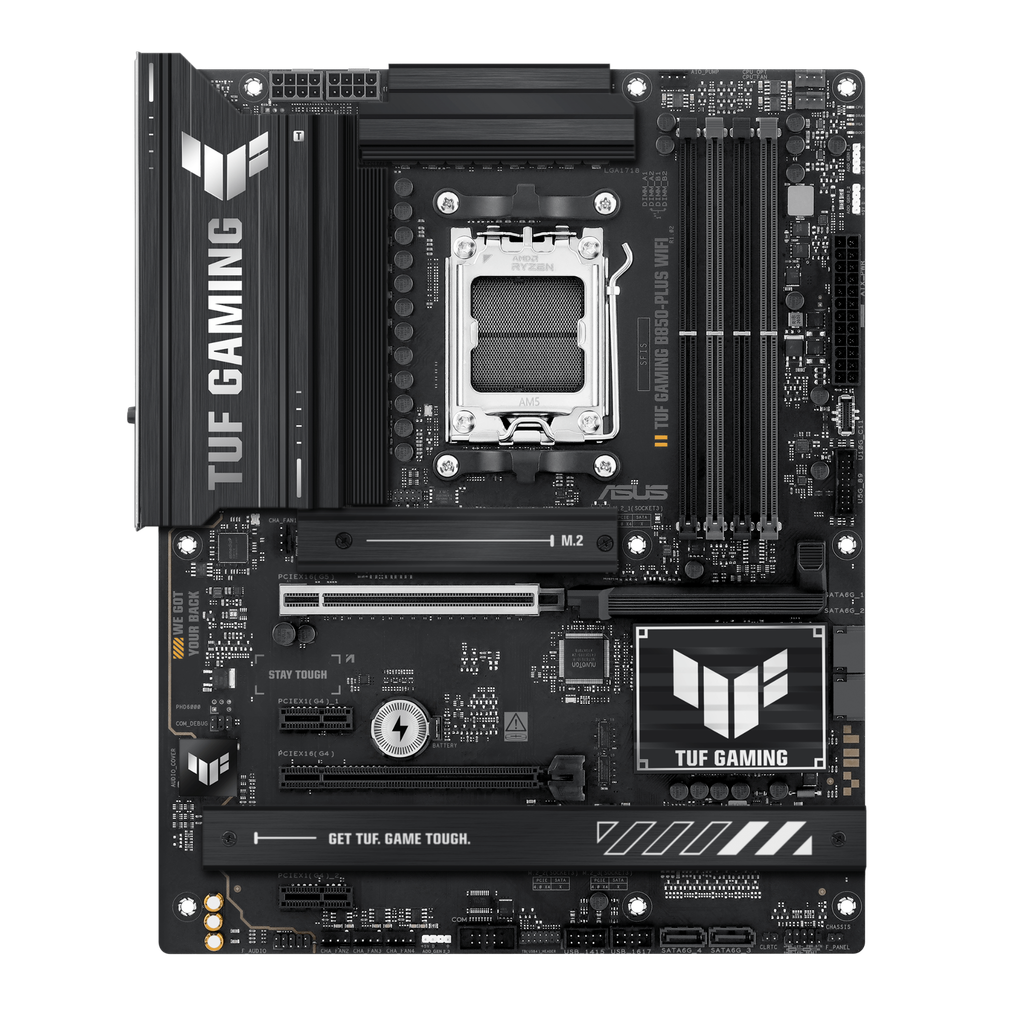

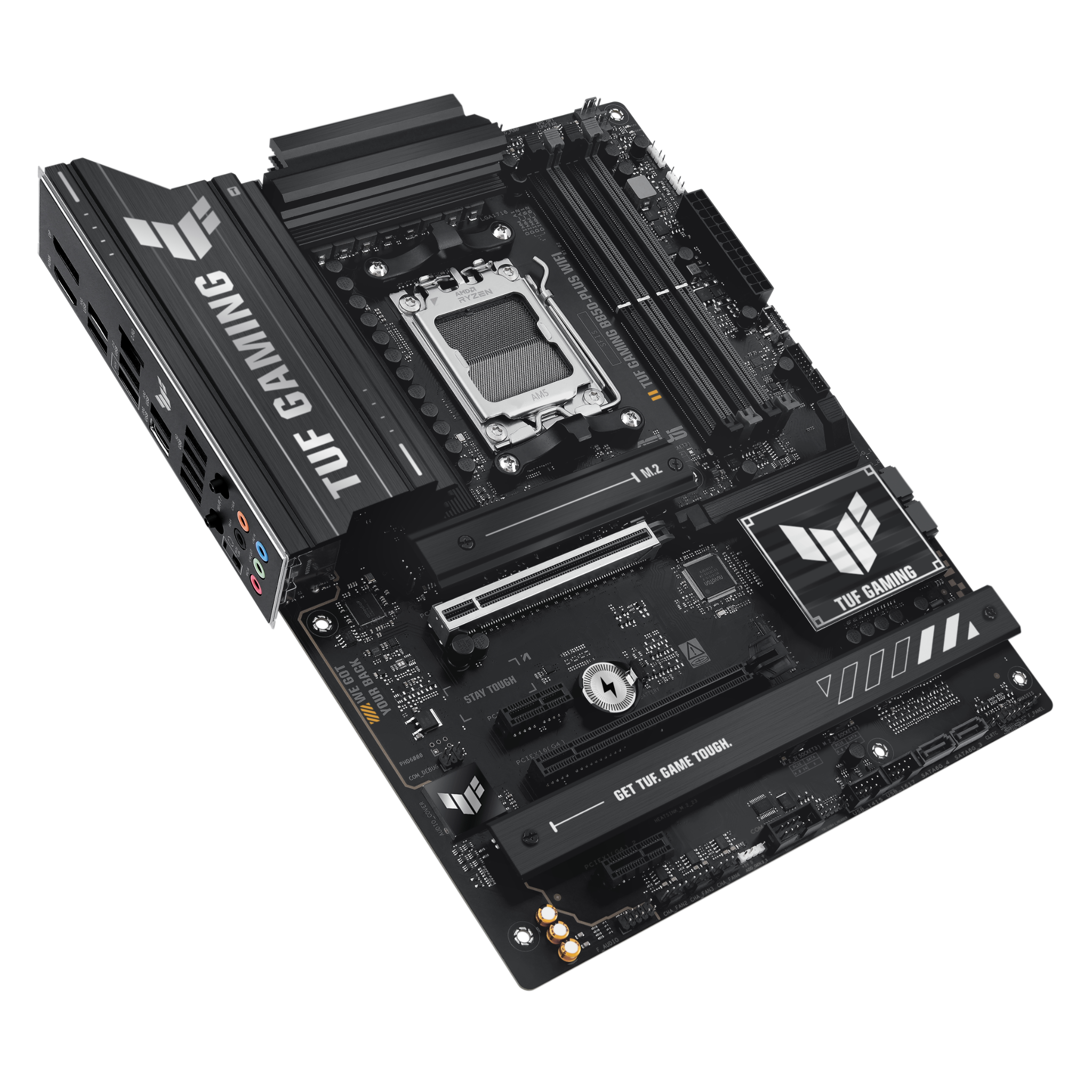

Mainboard Asus TUF Gaming B850 Plus WIFI

Mainboard Asus TUF Gaming B850-PLUS WIFI: Hiệu Năng Mạnh Mẽ, Kết Nối Tối Ưu, Wi-Fi 7 Tốc Độ Cao - BP STORE

Mainboard Asus TUF Gaming B850-PLUS WIFI với chipset AMD B850, hỗ trợ CPU AMD Ryzen 9000/8000/7000 series, Wi-Fi 7 tốc độ cao, 2.5Gb Ethernet và thiết kế ATX mạnh mẽ, là sự lựa chọn lý tưởng cho người dùng xây dựng hệ thống PC gaming hiệu năng cao và kết nối tối ưu. Tìm hiểu ngay tại BP STORE!

Giới thiệu:

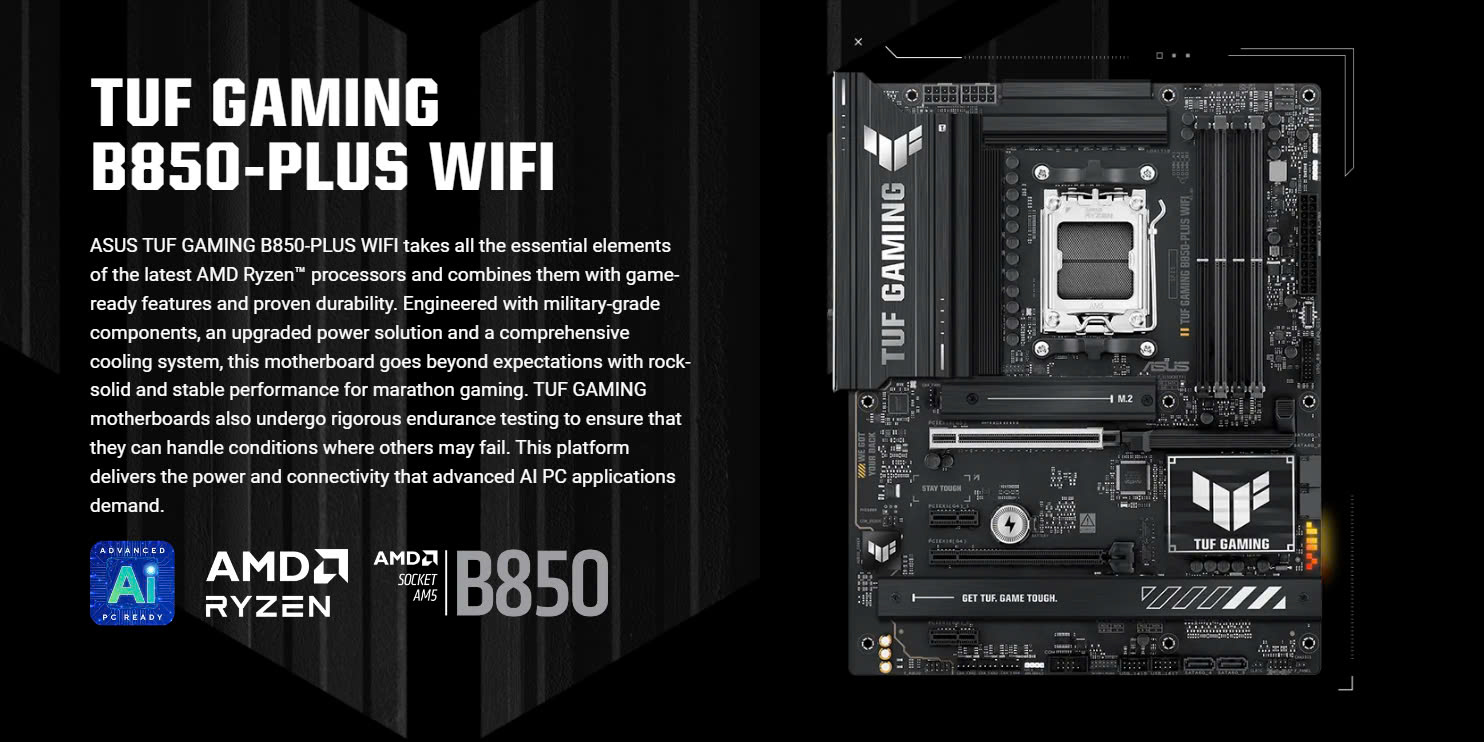

Mainboard Asus TUF Gaming B850-PLUS WIFI là bo mạch chủ ATX mạnh mẽ với chipset AMD B850, mang đến hiệu năng vượt trội và kết nối tối ưu cho hệ thống PC gaming của bạn. Với thiết kế bền bỉ, linh kiện chất lượng cao và Wi-Fi 7 tốc độ cao, TUF Gaming B850-PLUS WIFI là sự lựa chọn lý tưởng cho người dùng xây dựng hệ thống PC gaming mạnh mẽ và ổn định.

Điểm nổi bật:

  • Hỗ trợ CPU AMD Ryzen 9000/8000/7000 series: Tương thích với các bộ vi xử lý AMD Ryzen mới nhất, mang đến hiệu năng mạnh mẽ cho hệ thống gaming.
  • Chipset AMD B850: Cung cấp hiệu năng ổn định và các tính năng kết nối đa dạng.
  • Wi-Fi 7 tốc độ cao: Kết nối không dây siêu nhanh, đảm bảo trải nghiệm gaming trực tuyến mượt mà và không độ trễ.
  • 2.5Gb Ethernet: Kết nối mạng có dây tốc độ cao, đảm bảo trải nghiệm trực tuyến mượt mà.
  • Hỗ trợ DDR5 tốc độ cao: Tăng cường hiệu năng hệ thống với bộ nhớ DDR5 tốc độ lên đến 8000+MT/s (OC).
  • Khe cắm M.2 PCIe 5.0 & 4.0: Hỗ trợ ổ cứng SSD NVMe tốc độ cao, tăng tốc độ khởi động và tải game.
  • ASUS TUF PROTECTION: Bảo vệ hệ thống khỏi các sự cố điện áp, quá dòng và tĩnh điện, đảm bảo độ bền bỉ.
  • ASUS Q-Design: Giúp việc lắp đặt và nâng cấp linh kiện trở nên dễ dàng hơn.
  • Aura Sync: Đồng bộ hóa ánh sáng RGB với các linh kiện tương thích, tạo nên hệ thống PC gaming đẹp mắt.
  • BIOS FlashBack™: Cập nhật BIOS dễ dàng mà không cần CPU hoặc RAM.
  • Kích thước ATX: Cung cấp nhiều không gian cho các linh kiện cao cấp và tản nhiệt hiệu quả.

Thông số kỹ thuật:

  • Model: TUF Gaming B850-PLUS WIFI
  • Chipset: AMD B850
  • CPU: AMD Socket AM5, Ryzen 9000/8000/7000 series
  • Bộ nhớ: 4 x DIMM, DDR5, tối đa 256GB, 8000+MT/s (OC)
  • Khe cắm mở rộng: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1
  • Lưu trữ: 3 x M.2, 4 x SATA 6Gb/s
  • Mạng: 2.5Gb Ethernet, Wi-Fi 7, Bluetooth v5.4
  • USB: Rear: 1 x USB 20Gbps Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 2 x USB 2.0 Type-A; Front: 1 x USB 10Gbps Type-C, 1 x USB 5Gbps header, 2 x USB 2.0 header
  • Âm thanh: Realtek ALC1220P 7.1 Surround Sound
  • Kích thước: ATX

Đối tượng sử dụng

  • Người dùng xây dựng hệ thống PC gaming hiệu năng cao.
  • Người dùng cần kết nối mạng tốc độ cao với Wi-Fi 7 và 2.5Gb Ethernet.
  • Người dùng muốn hệ thống PC gaming ổn định và bền bỉ với ASUS TUF PROTECTION.
  • Người dùng muốn tùy chỉnh ánh sáng RGB với Aura Sync.
  • Người dùng muốn hệ thống PC gaming mạnh mẽ và đa năng cho mọi nhu cầu.

Kết luận:

Mainboard Asus TUF Gaming B850-PLUS WIFI là sự lựa chọn tuyệt vời cho người dùng xây dựng hệ thống PC gaming hiệu năng mạnh mẽ, kết nối tối ưu và độ bền bỉ cao. Với chipset AMD B850, Wi-Fi 7 tốc độ cao và nhiều tính năng khác, TUF Gaming B850-PLUS WIFI đáp ứng tốt nhu cầu của người dùng trong các thùng máy ATX.

Order Mainboard Asus TUF Gaming B850-PLUS WIFI tại BP Store để trải nghiệm sức mạnh tối cao!

Bạn có bất cứ thắc mắc về sản phẩm PC, liên hệ ngay Hotline: 093 888 9100. Hoặc nhắn tin đến BP Store để giải đáp mọi thắc mắc của bạn nhé.

Mainboard Asus TUF Gaming B850 Plus WIFI

Model

TUF GAMING B850-PLUS WIFI

News & Updates

Please visit our GLOBAL website to check and download the latest updates.

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset

AMD B850 Chipset

Memory

4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)***
2 x PCIe 4.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
*** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)*
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10

Ethernet

1 x Realtek 2.5Gb Ethernet
TUF LANGuard

Wireless & Bluetooth

Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
Bluetooth® v5.4***
* Wi-Fi features may vary depending on the operating system.
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 10 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A.

Audio

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

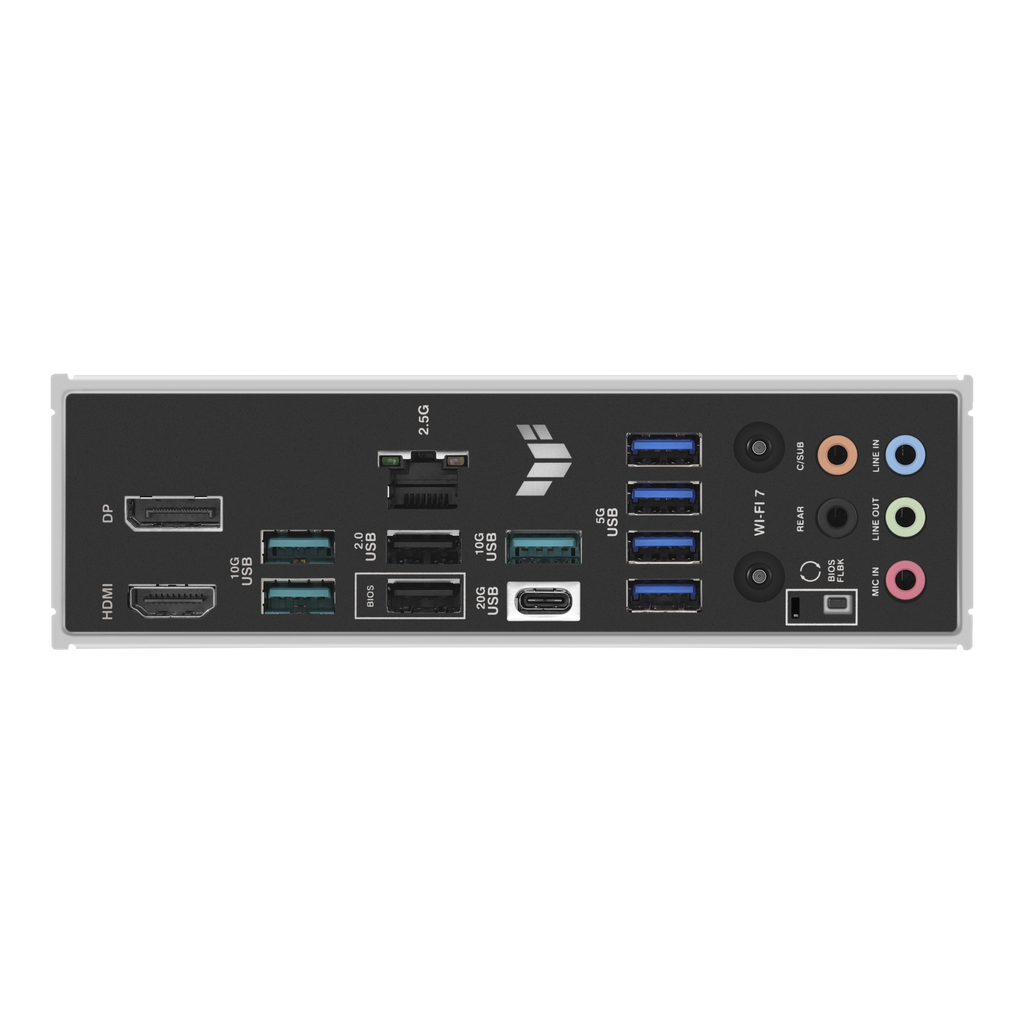

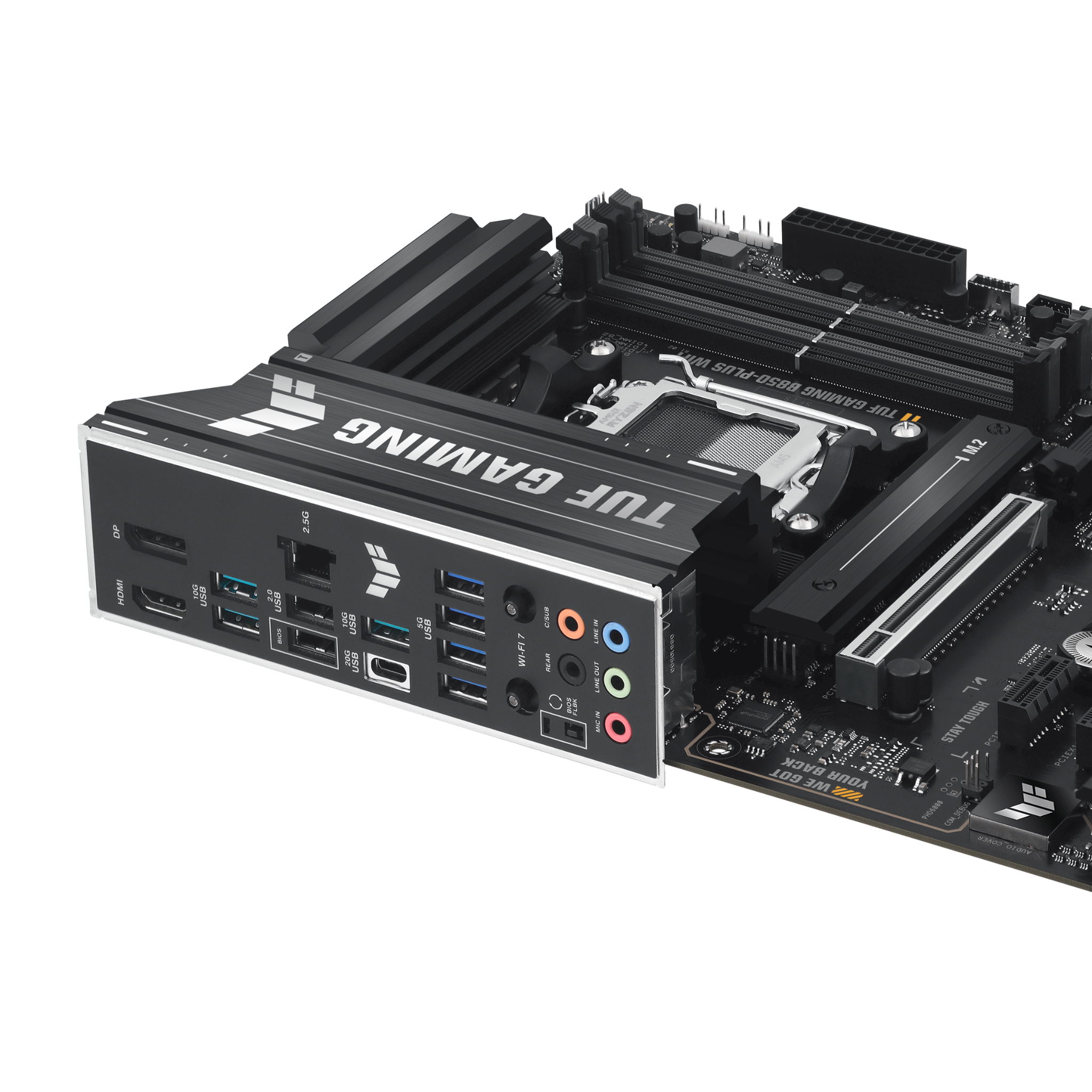

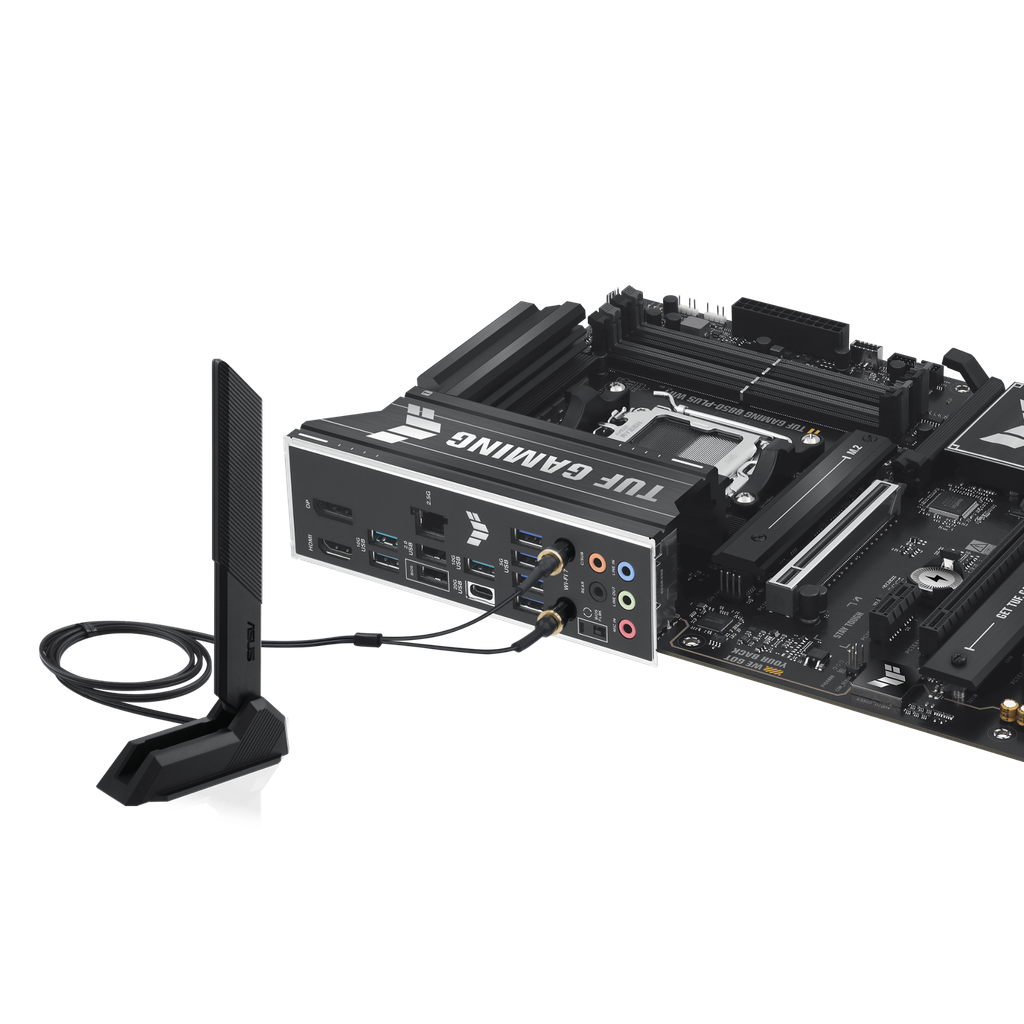

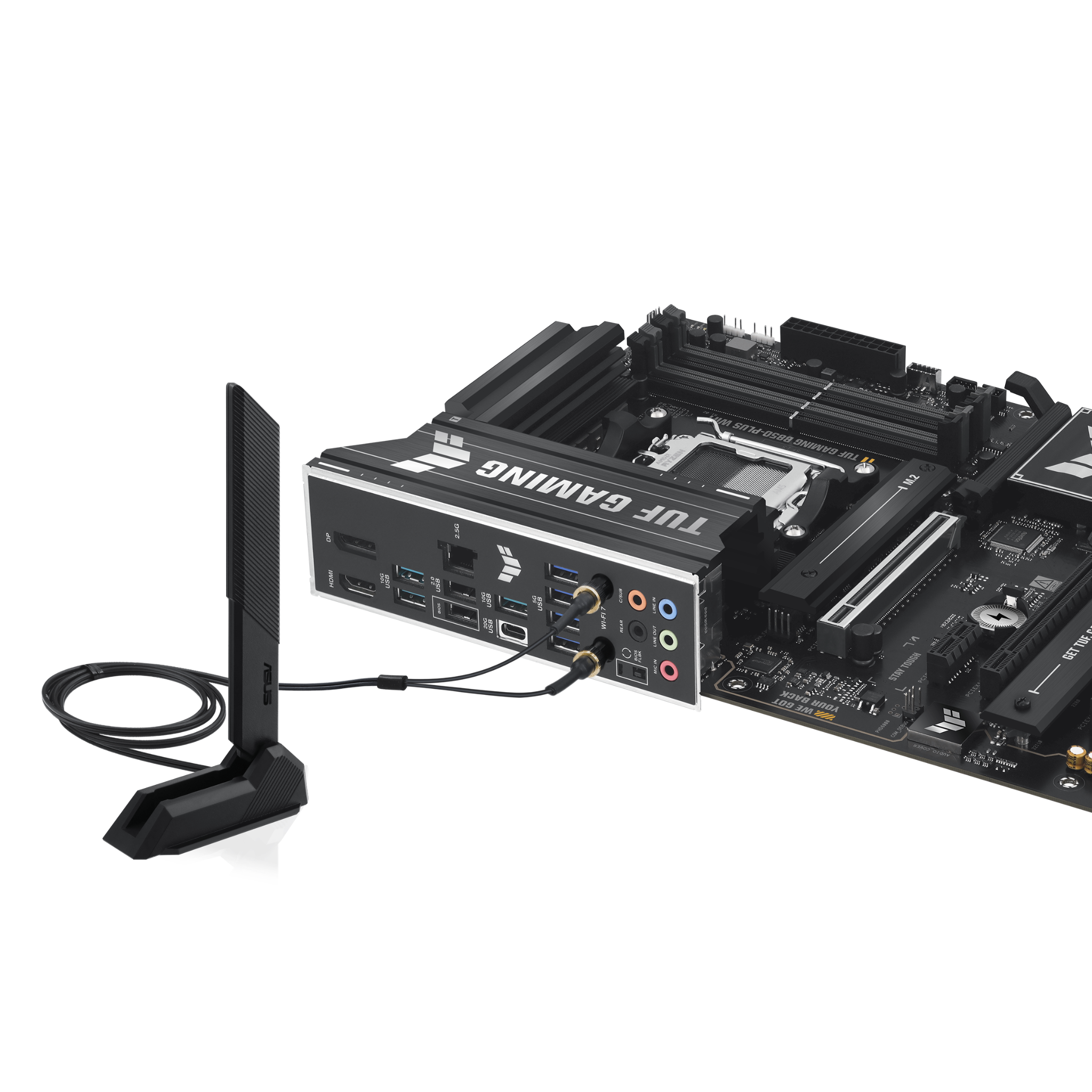

Back Panel I/O Ports

1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors


Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header

Special Features

ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers

Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

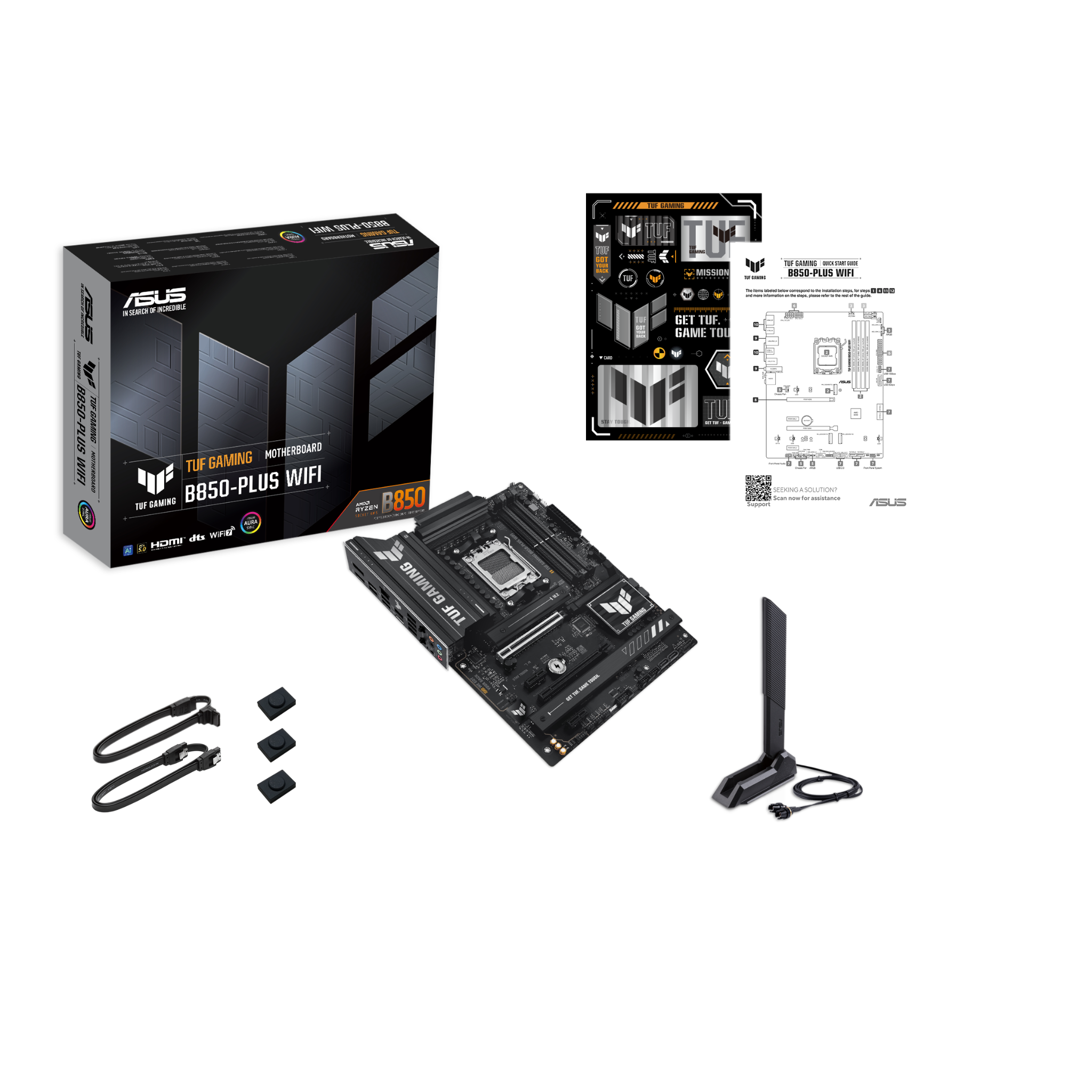

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x TUF GAMING sticker
2 x M.2 rubber packages
Documentation
1 x Quick start guide

Operating System

Windows 11

Form Factor


ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty

36 months
