Mainboard Asus Pro H810M-C-CSM

Thương hiệu: ASUS Mã sản phẩm: Đang cập nhật
So sánh
Liên hệ
Bảo hành: 36 tháng Tình trạng: Mới

Mainboard Asus Pro H810M-C-CSM DỊCH VỤ NỔI BẬT

  • DỊCH VỤ THU CŨ TẠI NHÀ - ĐỔI MỚI TẬN NƠI
  • DỊCH VỤ VỆ SINH LẮP ĐẶT PC TẠI NHÀ
  • MIỄN PHÍ LẮP ĐẶT TẠI SHOWROOM

Đặt ngay 0938 889 100 (8:30 - 18:00)

  • Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
    Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
  • Hàng chính hãng 100%
    Hàng chính hãng 100%
  • Trả góp qua thẻ tín dụng Visa, Master, JCB
    Trả góp qua thẻ tín dụng Visa, Master, JCB
  • Đổi trả 100% trong 7 ngày
    Đổi trả 100% trong 7 ngày
Phương thức thanh toán

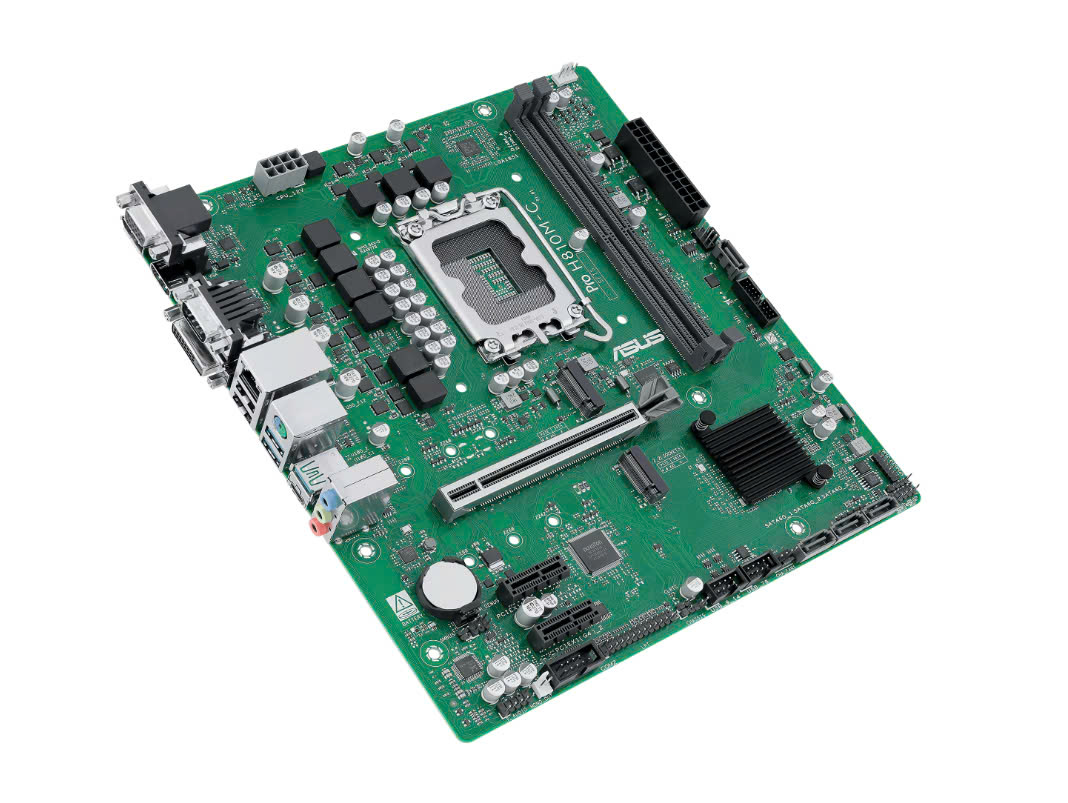

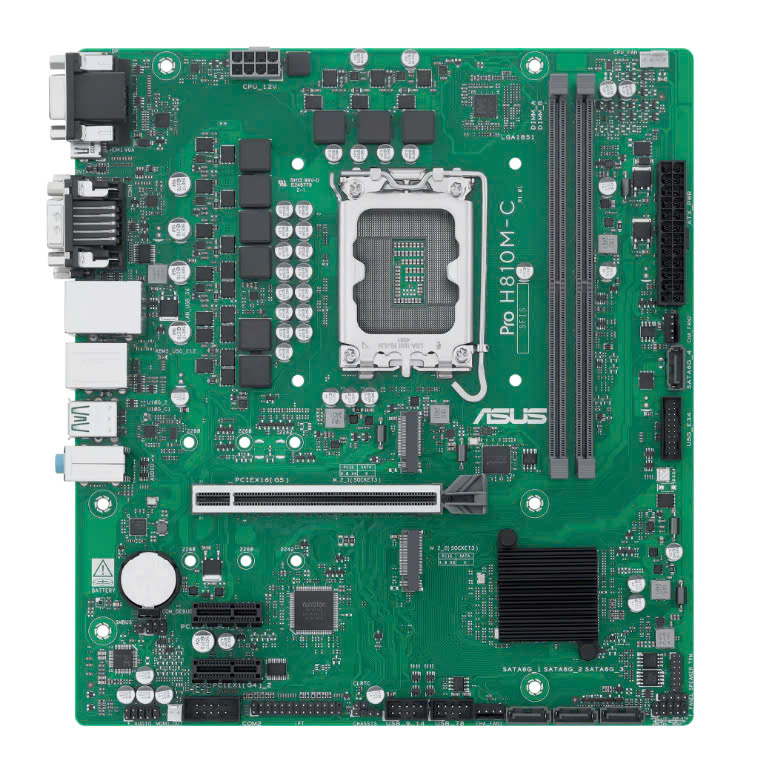

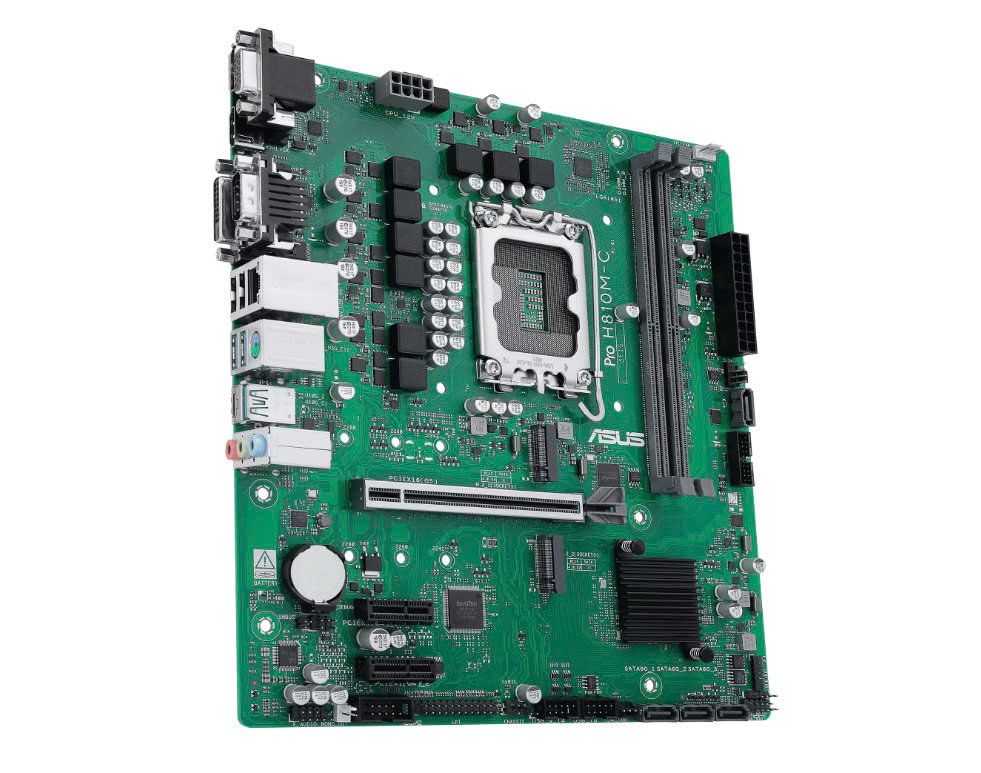

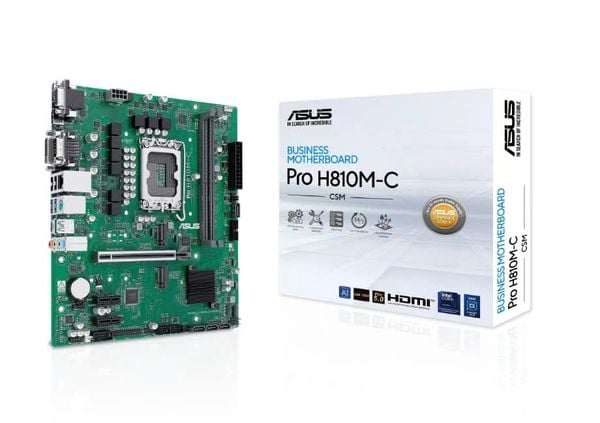

Mainboard Asus Pro H810M-C-CSM

Mainboard ASUS Pro H810M-C-CSM: Giải pháp tối ưu cho doanh nghiệp - BP STOREMainboard Asus Pro H810M-C-CSM

Mainboard ASUS Pro H810M-C-CSM là bo mạch chủ micro-ATX được thiết kế đặc biệt cho môi trường doanh nghiệp. Tìm hiểu ngay tại BP STORE!

Giới thiệu:

MainboardASUS Pro H810M-C-CSM là bo mạch chủ cung cấp sự ổn định, độ bền bỉ và các tính năng quản lý nâng cao. Dựa trên chipset Intel H810, bo mạch chủ này hỗ trợ bộ vi xử lý Intel Core Ultra thế hệ mới nhất (Series 2) và nhiều tính năng đáng chú ý.

Điểm nổi bật:

  • Hỗ trợ CPU Intel Core Ultra thế hệ mới nhất (Series 2) cho socket LGA 1851: Sẵn sàng cho các bộ vi xử lý mạnh mẽ, mang lại hiệu năng vượt trội cho mọi tác vụ. Hỗ trợ Intel® Turbo Boost Technology 2.0 và Intel® Turbo Boost Max Technology 3.0 (tùy thuộc vào CPU).
  • Hỗ trợ RAM DDR5: Tận dụng tốc độ vượt trội của RAM DDR5 với khả năng hỗ trợ lên đến 6400MT/s và dung lượng tối đa 128GB, giúp hệ thống hoạt động nhanh chóng và hiệu quả hơn. Hỗ trợ Intel® Extreme Memory Profile (XMP) và ASUS Enhanced Memory Profile II (AEMP II).
  • Kết nối đồ họa đa dạng: Trang bị cổng DisplayPort, VGA, DVI-D và HDMI, cho phép kết nối linh hoạt với nhiều loại màn hình, hỗ trợ tối đa 3 màn hình cùng lúc.
  • Khe cắm mở rộng PCIe 5.0: Khe cắm PCIe 5.0 x16 cho card đồ họa rời, cho phép nâng cấp hiệu năng đồ họa khi cần thiết.
  • Lưu trữ tốc độ cao: Hai khe cắm M.2 (PCIe 4.0 x4 và PCIe 4.0 x2) và 4 cổng SATA 6Gb/s, hỗ trợ nhiều tùy chọn lưu trữ tốc độ cao.
  • Kết nối mạng Intel 1Gb Ethernet: Đảm bảo kết nối mạng ổn định và nhanh chóng. Tích hợp công nghệ ASUS LANGuard bảo vệ chống sốc điện và tĩnh điện.
  • USB đa dạng: 2 cổng USB 10Gbps (1x Type-A + 1x Type-C), 2 cổng USB 5Gbps (Type-A) và 2 cổng USB 2.0 (Type-A) ở mặt sau; 1 header USB 5Gbps (hỗ trợ 2 cổng) và 2 header USB 2.0 (hỗ trợ 4 cổng) ở mặt trước.
  • Âm thanh chất lượng cao Realtek 7.1: Mang đến trải nghiệm âm thanh sống động và chân thực.
  • Tính năng ASUS Q-Design: Giúp việc lắp ráp và bảo trì dễ dàng hơn với Q-LED Core và Q-Slot.
  • Tính năng ASUS EZ DIY: Box headers, Dual DIMM clips và SafeSlot giúp việc lắp ráp dễ dàng và an toàn hơn.
  • Tính năng đặc biệt cho doanh nghiệp: ASUS Self-Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS Kit (liên hệ FAE địa phương), Anti-moisture coating, độ tin cậy 24/7 và Overcurrent protection.
  • Phần mềm quản lý IT: Hỗ trợ ASUS Control Center Express (ACCE).
  • Hỗ trợ ASUS DASH LAN Card (bán riêng): Cho phép quản lý từ xa.

Thông số kỹ thuật:

  • CPU: Hỗ trợ Intel Core Ultra Processors (Series 2), LGA1851
  • Chipset: Intel H810
  • Bộ nhớ: 2 x DIMM DDR5, tối đa 128GB
  • Khe cắm mở rộng: 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x1
  • Lưu trữ: 2 x M.2, 4 x SATA 6Gb/s
  • Mạng: Intel 1Gb Ethernet
  • Âm thanh: Realtek 7.1 Surround Sound
  • Cổng kết nối: DisplayPort, VGA, DVI-D, HDMI, USB Type-C, USB Type-A
  • Kích thước: micro-ATX

Đối tượng sử dụng

  • Doanh nghiệp
  • Văn phòng
  • Các tổ chức cần độ ổn định và tính năng quản lý cao

Kết luận:

ASUS Pro H810M-C-CSM là một lựa chọn lý tưởng cho các doanh nghiệp cần một bo mạch chủ ổn định, bền bỉ và có các tính năng quản lý nâng cao. Với hiệu năng tốt, kết nối đa dạng và các tính năng đặc biệt, bo mạch chủ này sẽ là nền tảng vững chắc cho hệ thống máy tính của bạn, đáp ứng mọi nhu cầu làm việc.

Order ASUS Pro H810M-C-CSM tại BP Store để trải nghiệm sức mạnh tối cao!

Bạn có bất cứ thắc mắc về sản phẩm PC, liên hệ ngay Hotline: 093 888 9100. Hoặc nhắn tin đến BP Store để giải đáp mọi thắc mắc của bạn nhé.

Mainboard Asus Pro H810M-C-CSM

Mainboard Asus Pro H810M-C-CSM

Model

Pro H810M-C-CSM

CPU

Supports Intel® Core Ultra Processors (Series 2), LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® H810 Chipset

Memory

2 x DIMM slots, max. 128GB, DDR5
Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x VGA port
1 x DVI-D port
1 x HDMI port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** Supports up to 3 displays simultaneously.

Expansion Slots

Intel® Core Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
Intel® H810 Chipset
2 x PCIe 4.0 x1 slots
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H810 Chipset

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports

Ethernet

1 x Intel® 1Gb Ethernet port*
ASUS LANGuard
* With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.

USB

Rear USB (Total 6 ports)
2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

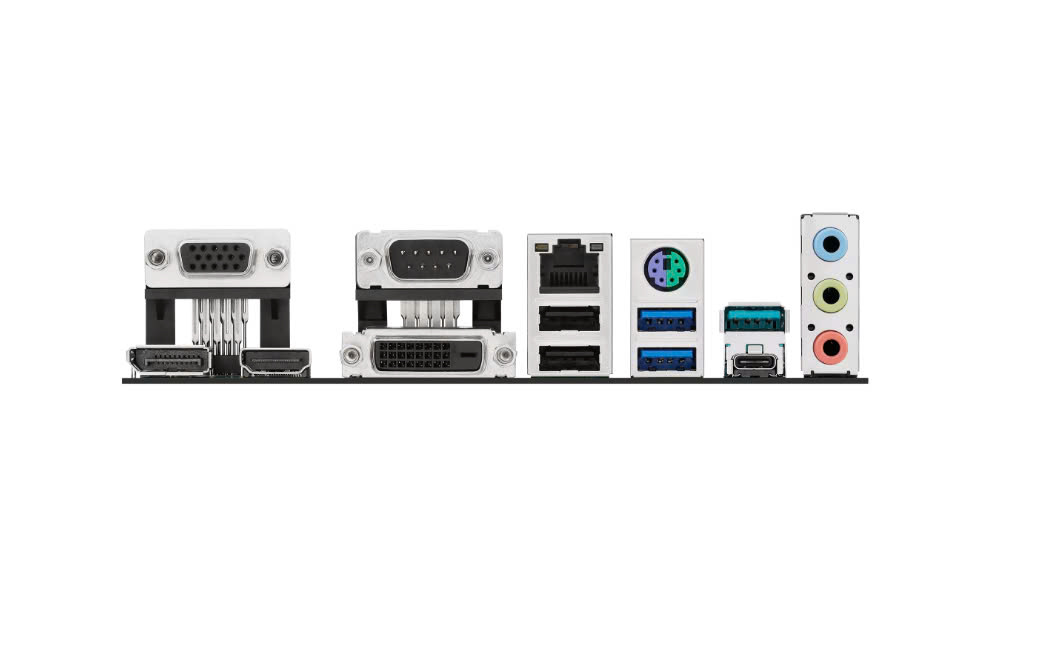

Back Panel I/O Ports

2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x DVI-D port
1 x HDMI port
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x COM port
1 x PS/2 keyboard/mouse combo port
Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x COM Debug header
1 x LPT header
1 x Mono-Out Audio header (with Amp IC)
1 x SMBUS header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header

Special Features

ASUS Q-Design
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- Box headers
- Dual DIMM clips
- SafeSlot
Bespoke Motherboard Design & Business Focused Features
- ASUS Self-Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS Kit*
- Anti-moisture coating
- 24/7 reliability
- Overcurrent protection
* Please contact local FAE for Commercial BIOS kit.

Software Features


ASUS Exclusive Software
ASUS DriverHub
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS MyHotkey

Remote Management Features

IT Management software supported
- ASUS Control Center Express (ACCE)
Ready for ASUS DASH LAN Card*
1 x SMBUS header
* ASUS DASH LAN Card is sold separately.

BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

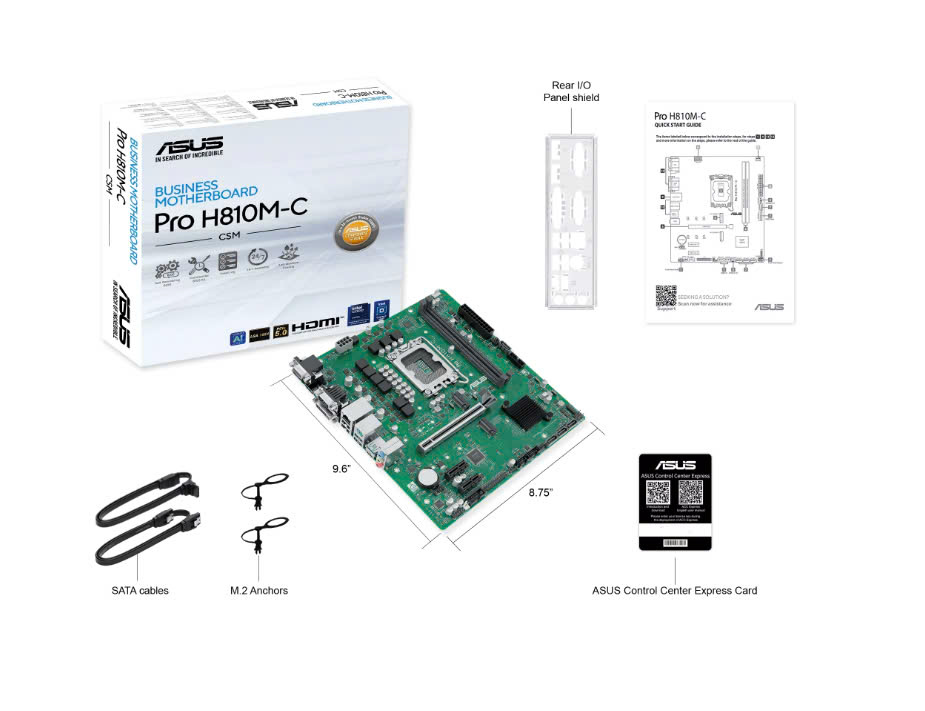

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous

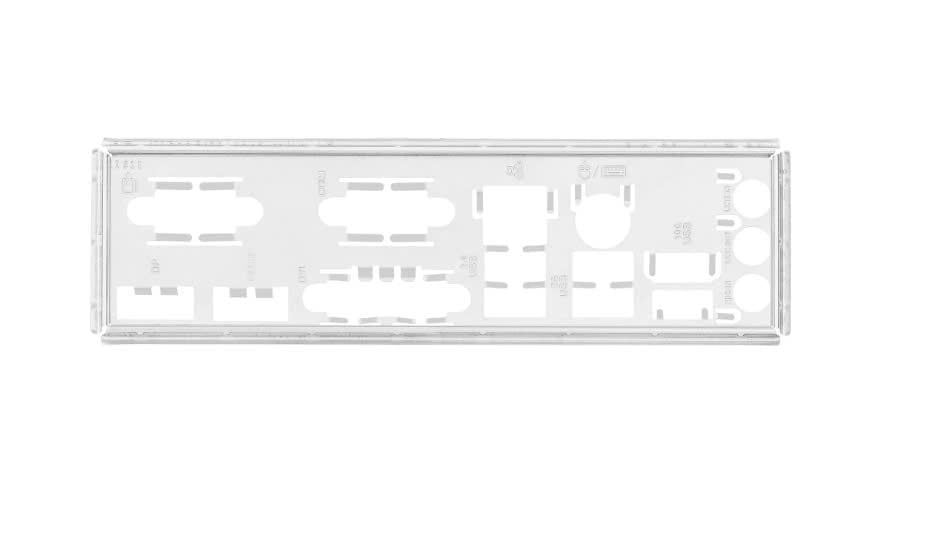

1 x I/O shield
1 x M.2 anchor package
Documentation
1 x ACC Express activation key card
1 x Quick start guide

Operating System

Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Form Factor


micro-ATX Form Factor
9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )

Warranty

36 months
