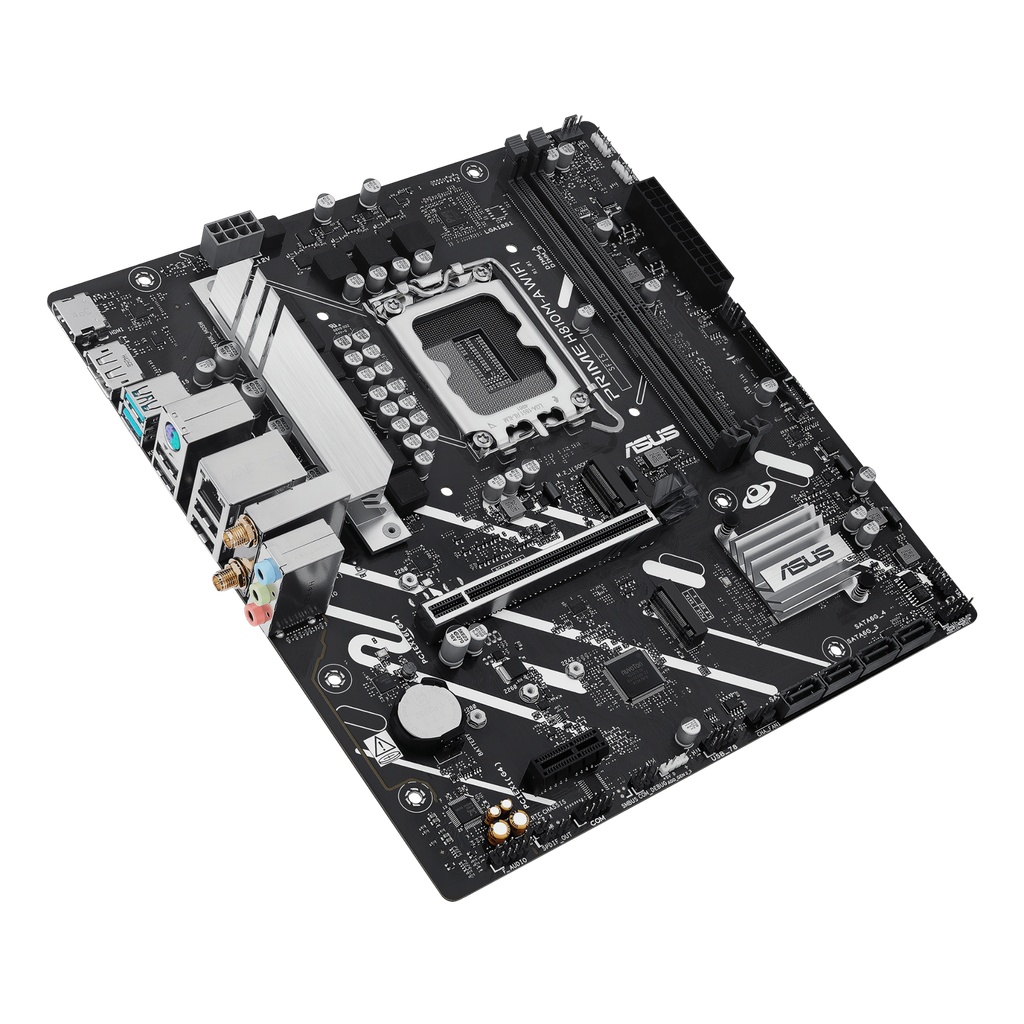

Mainboard Asus PRIME H810M-A WIFI

Thương hiệu: ASUS Mã sản phẩm: Đang cập nhật
So sánh
Liên hệ
Bảo hành: 36 tháng Tình trạng: Mới

Mainboard Asus PRIME H810M-A WIFI DỊCH VỤ NỔI BẬT

  • DỊCH VỤ THU CŨ TẠI NHÀ - ĐỔI MỚI TẬN NƠI
  • DỊCH VỤ VỆ SINH LẮP ĐẶT PC TẠI NHÀ
  • MIỄN PHÍ LẮP ĐẶT TẠI SHOWROOM

Đặt ngay 0938 889 100 (8:30 - 18:00)

  • Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
    Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
  • Hàng chính hãng 100%
    Hàng chính hãng 100%
  • Trả góp qua thẻ tín dụng Visa, Master, JCB
    Trả góp qua thẻ tín dụng Visa, Master, JCB
  • Đổi trả 100% trong 7 ngày
    Đổi trả 100% trong 7 ngày
Phương thức thanh toán

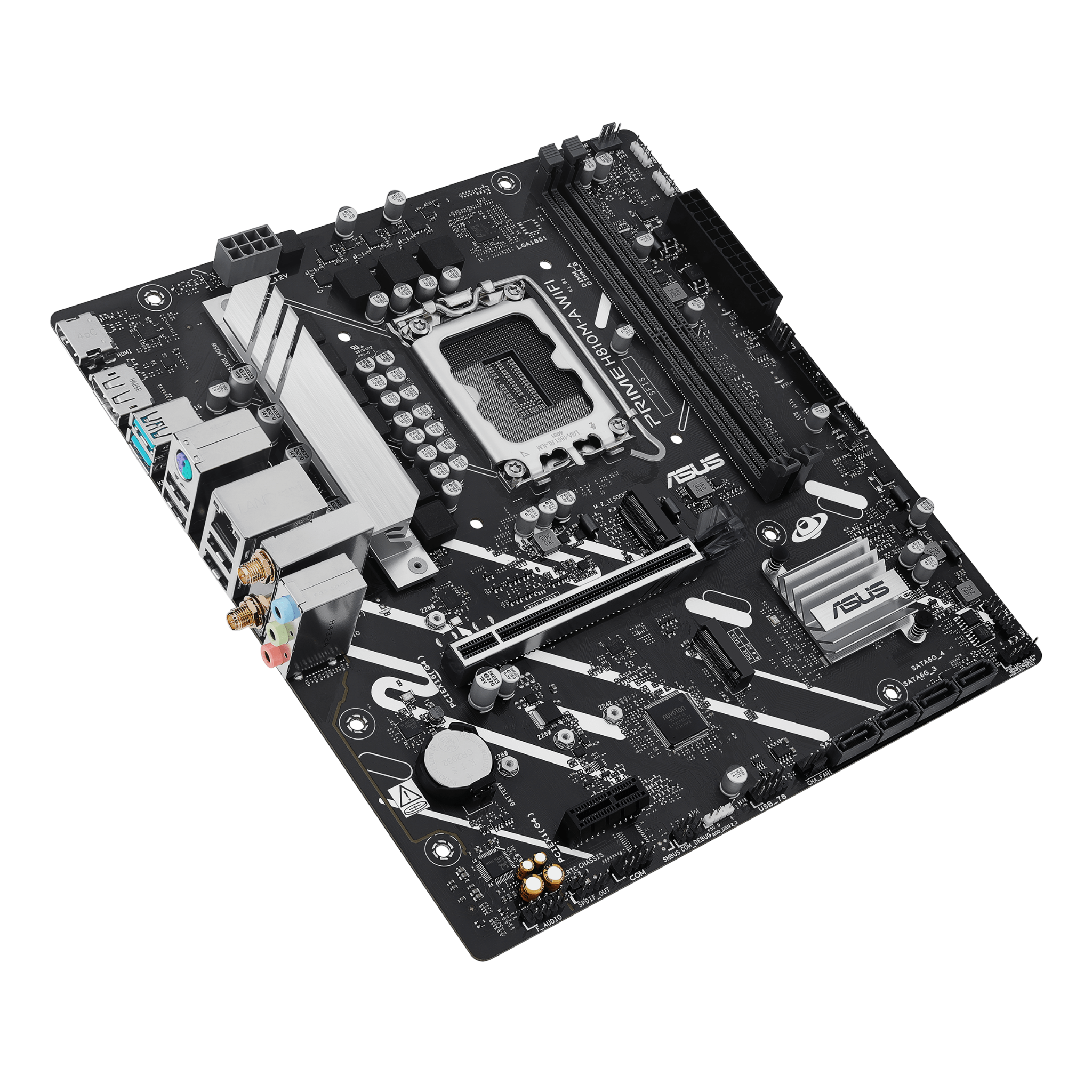

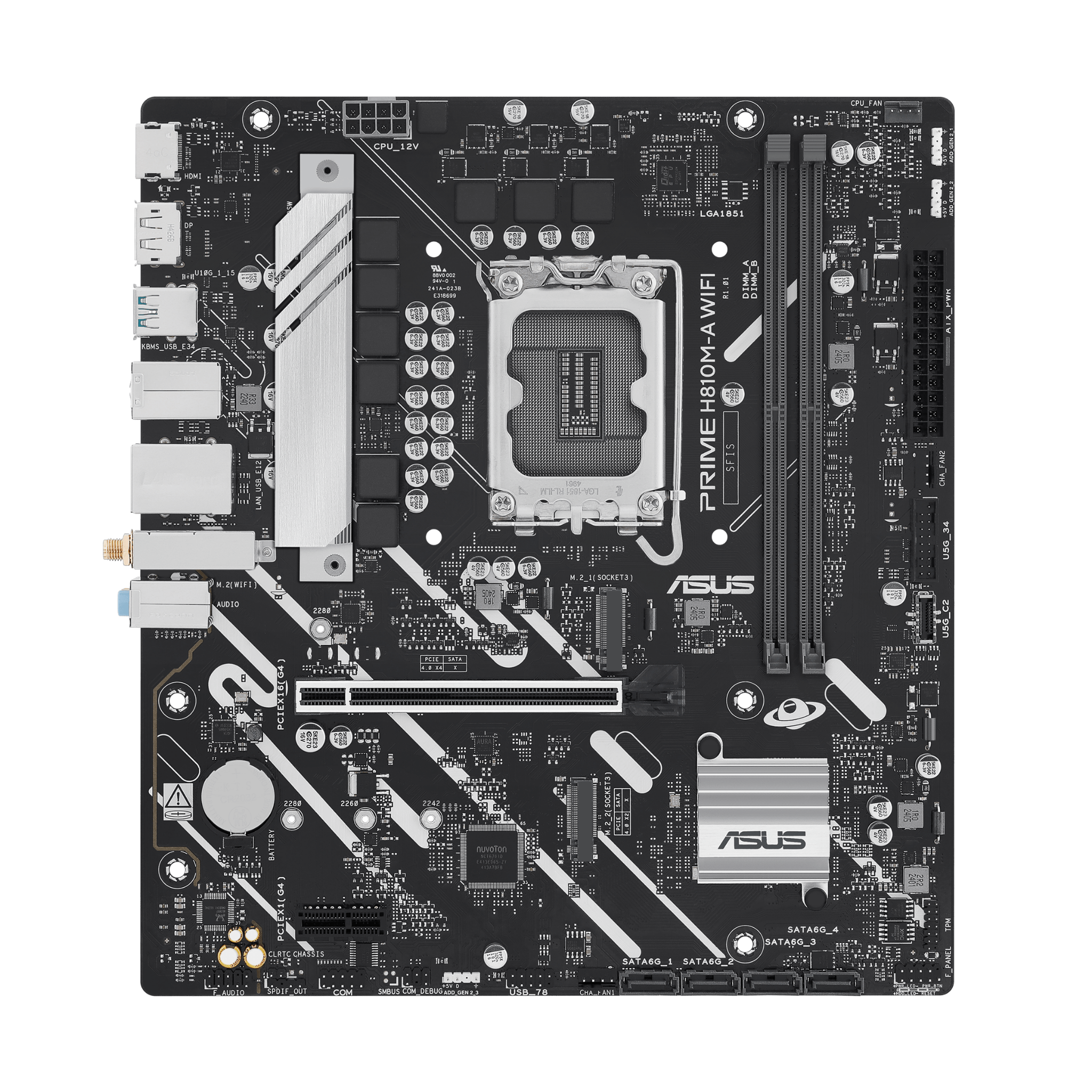

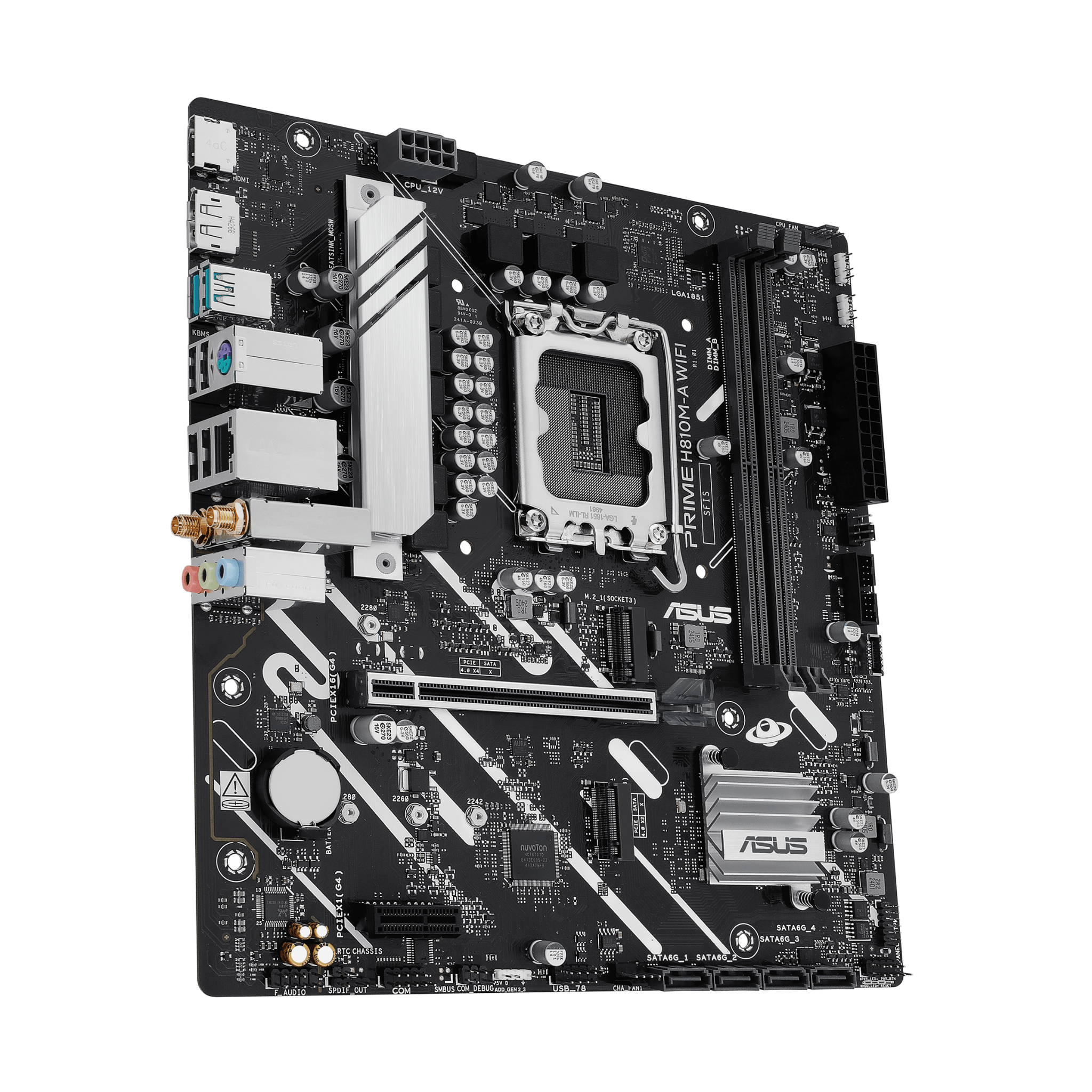

Mainboard Asus PRIME H810M-A WIFI

Mainboard ASUS PRIME H810M-A WIFI: Kết nối không dây tốc độ cao cho hệ thống của bạn - BP STOREMainboard Asus PRIME H810M-A WIFI

Mainboard ASUS PRIME H810M-A WIFI là bo mạch chủ micro-ATX được thiết kế để đáp ứng nhu cầu của người dùng, từ công việc văn phòng đến giải trí đa phương tiện. Tìm hiểu ngay tại BP STORE!

Giới thiệu:

ASUS PRIME H810M-A WIFI mang đến kết nối không dây tốc độ cao. Với chipset Intel H810, bo mạch chủ này hỗ trợ bộ vi xử lý Intel Core Ultra thế hệ mới nhất (Series 2), RAM DDR5 và tích hợp Wi-Fi 6 cùng Bluetooth 5.3.

Điểm nổi bật:

  • Hỗ trợ CPU Intel Core Ultra thế hệ mới nhất (Series 2) cho socket LGA 1851: Sẵn sàng cho các bộ vi xử lý mạnh mẽ, mang lại hiệu năng vượt trội cho mọi tác vụ. Hỗ trợ Intel® Turbo Boost Technology 2.0 và Intel® Turbo Boost Max Technology 3.0 (tùy thuộc vào CPU).
  • Hỗ trợ RAM DDR5: Tận dụng tốc độ vượt trội của RAM DDR5 với khả năng hỗ trợ lên đến 6400MT/s và dung lượng tối đa 128GB, giúp hệ thống hoạt động nhanh chóng và hiệu quả hơn. Hỗ trợ Intel® Extreme Memory Profile (XMP) và ASUS Enhanced Memory Profile II (AEMP II).

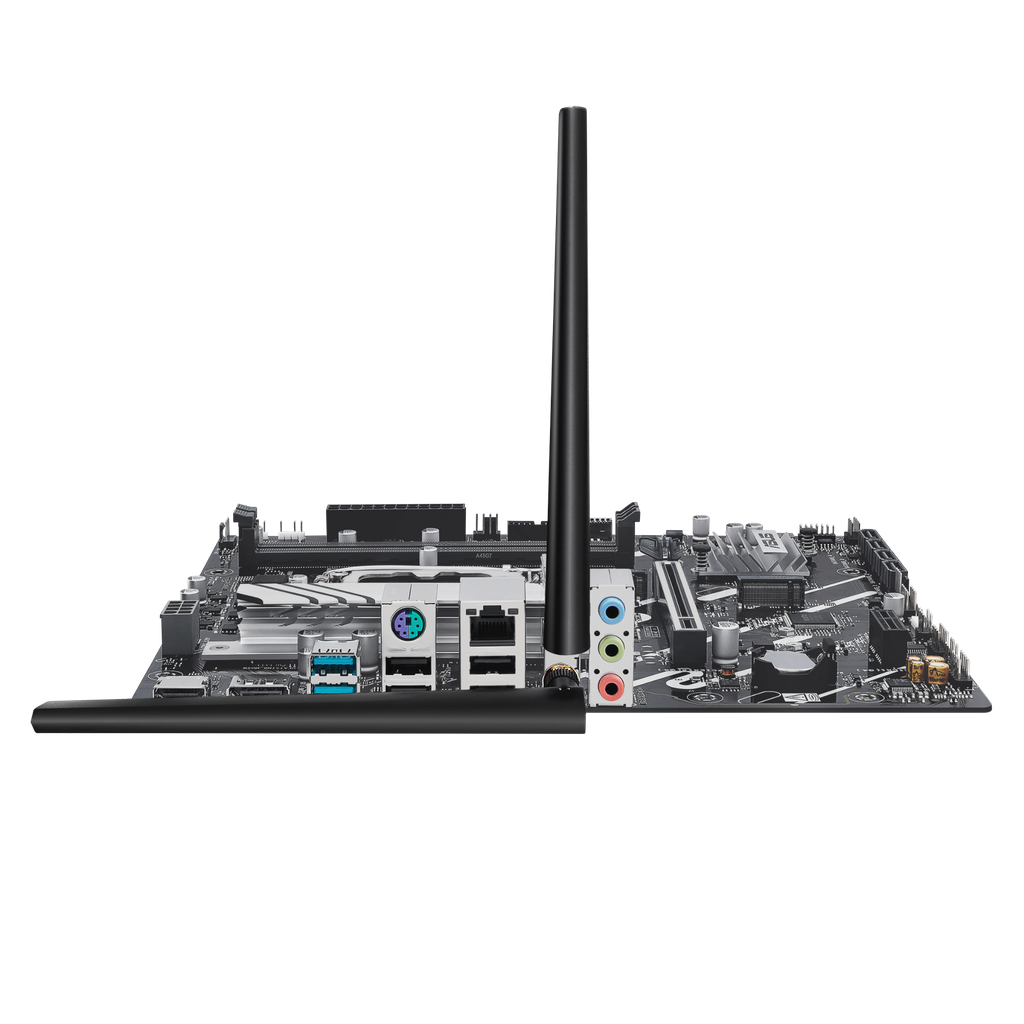

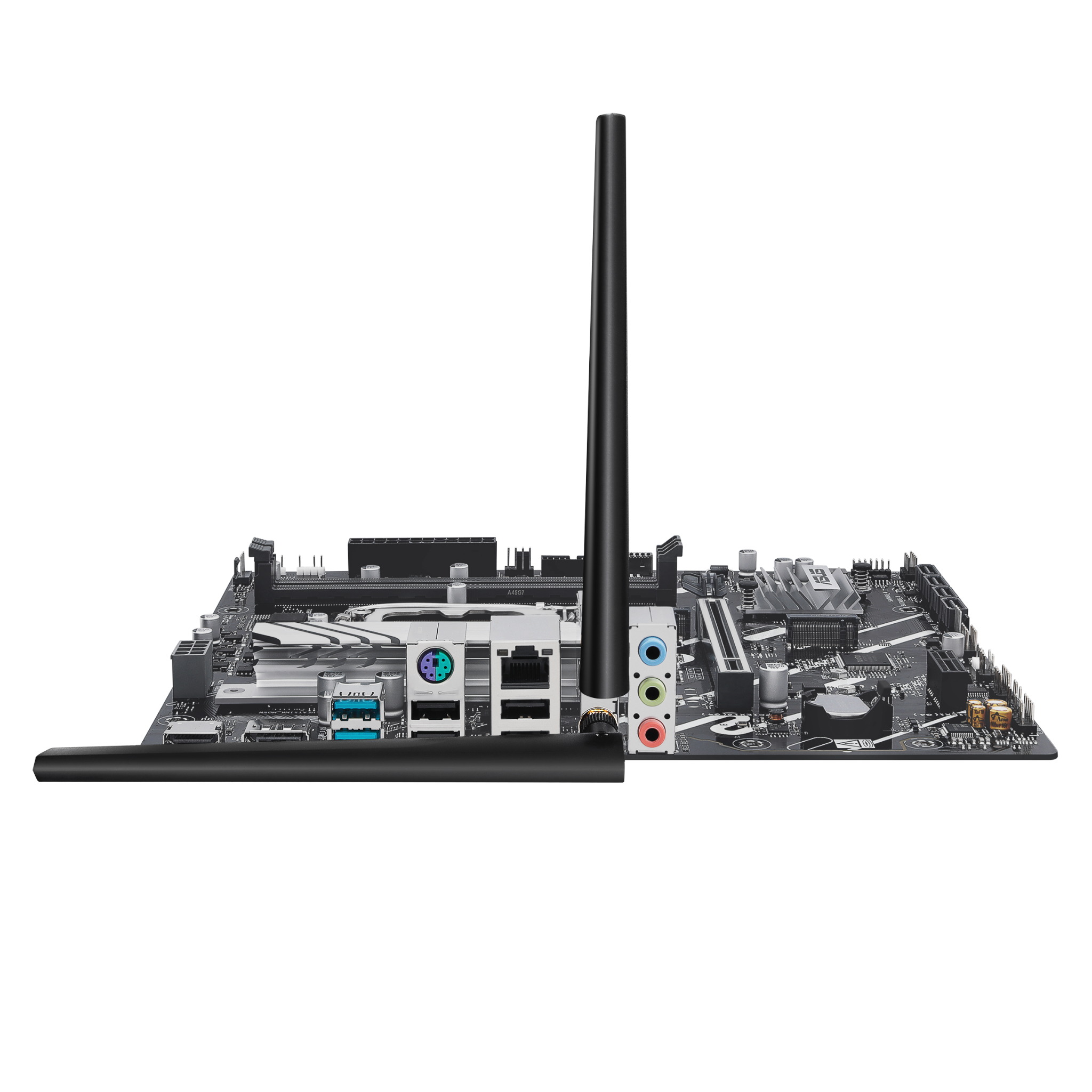

  • Kết nối Wi-Fi 6 và Bluetooth 5.3: Tận hưởng tốc độ internet không dây cực nhanh và kết nối ổn định với các thiết bị ngoại vi.
  • Kết nối đồ họa đa dạng: Trang bị cổng DisplayPort và HDMI, cho phép kết nối linh hoạt với nhiều loại màn hình.
  • Khe cắm mở rộng PCIe 4.0: Khe cắm PCIe 4.0 x16 cho card đồ họa rời, cho phép nâng cấp hiệu năng đồ họa khi cần thiết.
  • Lưu trữ tốc độ cao: Hai khe cắm M.2 (1x PCIe 4.0 x4 và 1x PCIe 4.0 x2) và 4 cổng SATA 6Gb/s, hỗ trợ nhiều tùy chọn lưu trữ tốc độ cao.
  • Kết nối mạng Intel 1Gb Ethernet: Đảm bảo kết nối mạng ổn định và nhanh chóng. Tích hợp công nghệ ASUS LANGuard bảo vệ chống sốc điện và tĩnh điện.
  • Âm thanh chất lượng cao Realtek 7.1: Mang đến trải nghiệm âm thanh sống động và chân thực. Tích hợp các tính năng Audio Shielding, Premium audio capacitors và Dedicated audio PCB layers.
  • USB đa dạng: 2 cổng USB 10Gbps (Type-A) ở mặt sau, 1 cổng USB 5Gbps (Type-C) và 1 header USB 5Gbps (hỗ trợ 2 cổng) ở mặt trước, 1 header USB 2.0 (hỗ trợ 2 cổng).
  • Tính năng ASUS 5X PROTECTION III: Bảo vệ toàn diện hệ thống với DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot Core+ và Stainless-steel back I/O.
  • Thiết kế ASUS Q-Design: Giúp việc lắp ráp và bảo trì dễ dàng hơn với Q-DIMM, Q-Dashboard, Q-LED Core và Q-Slot.
  • Phần mềm ASUS Armoury Crate: Cho phép tùy chỉnh và quản lý hệ thống một cách dễ dàng. Hỗ trợ Aura Sync cho phép đồng bộ đèn RGB với các thiết bị tương thích.

Thông số kỹ thuật:

  • CPU: Hỗ trợ Intel Core Ultra Processors (Series 2), LGA1851
  • Chipset: Intel H810
  • Bộ nhớ: 2 x DIMM DDR5, tối đa 128GB
  • Khe cắm mở rộng: 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x1
  • Lưu trữ: 2 x M.2, 4 x SATA 6Gb/s
  • Mạng: Intel 1Gb Ethernet, Wi-Fi 6, Bluetooth 5.3
  • Âm thanh: Realtek 7.1 Surround Sound
  • Cổng kết nối: DisplayPort, HDMI, USB Type-C, USB Type-A
  • Kích thước: micro-ATX

Đối tượng sử dụng

  • Người dùng văn phòng
  • Người dùng gia đình
  • Người dùng phổ thông
  • Người dùng cần kết nối không dây tốc độ cao

Kết luận:

ASUS PRIME H810M-A WIFI là một lựa chọn tuyệt vời cho những ai tìm kiếm một bo mạch chủ micro-ATX mạnh mẽ, ổn định, đầy đủ tính năng và có kết nối không dây tốc độ cao. Với những công nghệ tiên tiến và kết nối đa dạng, bo mạch chủ này sẽ là nền tảng vững chắc cho hệ thống máy tính của bạn, đáp ứng mọi nhu cầu từ công việc hàng ngày đến giải trí đa phương tiện

Order ASUS PRIME H810M-A WIFI tại BP Store để trải nghiệm sức mạnh tối cao!

Bạn có bất cứ thắc mắc về sản phẩm PC, liên hệ ngay Hotline: 093 888 9100. Hoặc nhắn tin đến BP Store để giải đáp mọi thắc mắc của bạn nhé.

Mainboard Asus PRIME H810M-A WIFI

Mainboard Asus PRIME H810M-A WIFI

Model

PRIME H810M-A WIFI

CPU

Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® H810 Chipset

Memory

2 x DIMM slots, max. 128GB, DDR5
Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel® H810 Chipset
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H810 Chipset

M.2_1 slot (Key M), type 2280  (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports

Ethernet

1 x Intel® 1Gb Ethernet port*
ASUS LANGuard
*With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.

Wireless & Bluetooth

Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3*
* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 6 ports)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 5Gbps connector (supports USB Type-C®)*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

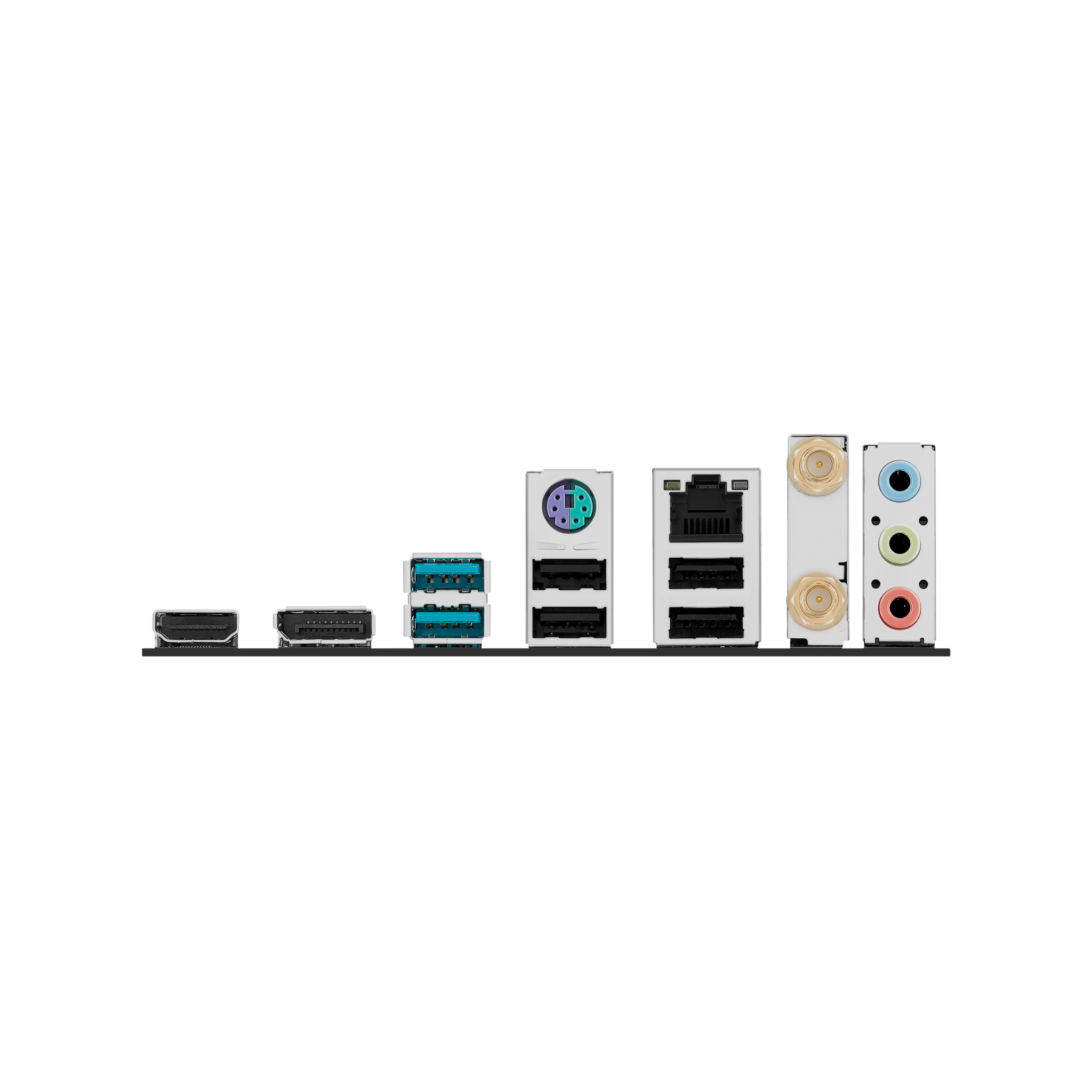

Back Panel I/O Ports

2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard/mouse combo port
Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- Q-DIMM
- Q-Dashboard
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
Aura Sync
- Addressable Gen 2 headers

Software Features


ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

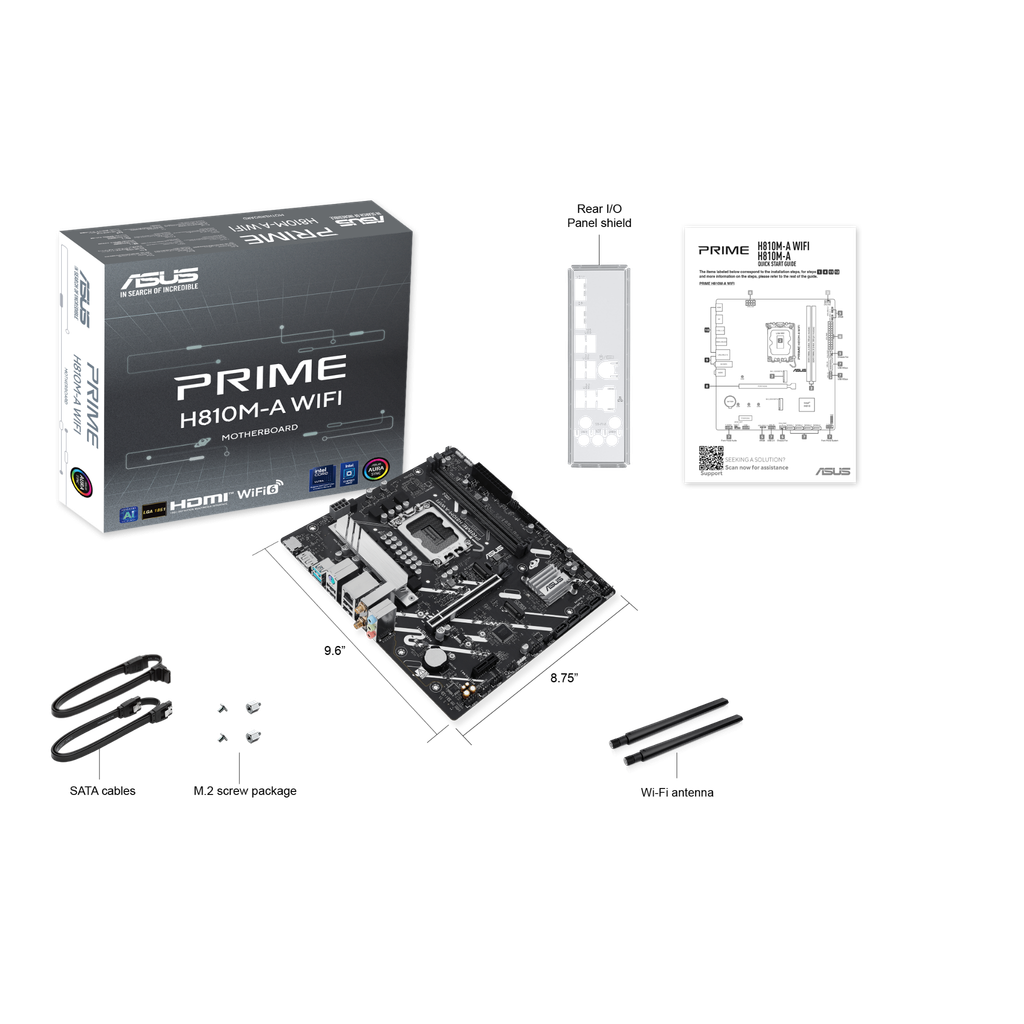

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna

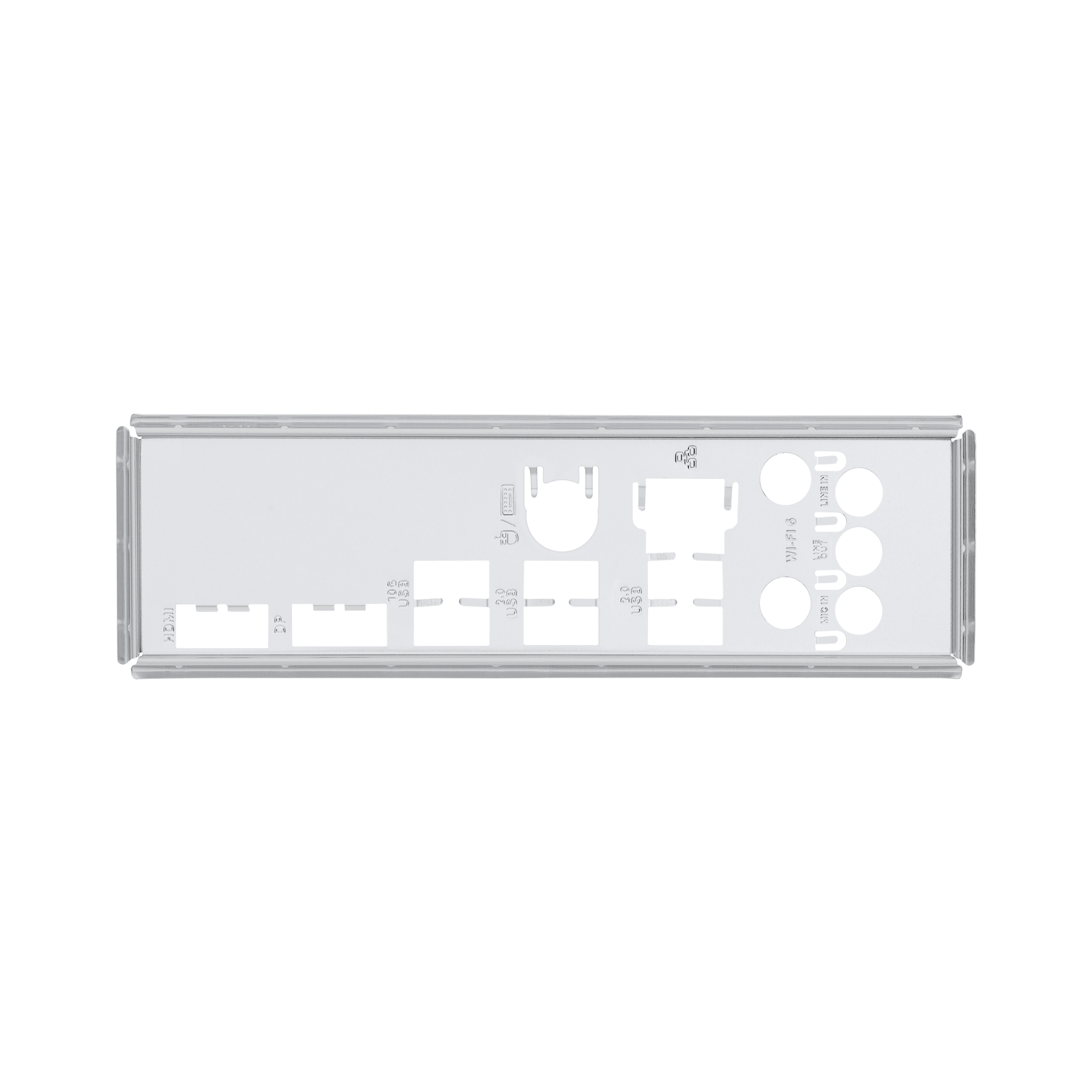

1 x I/O shield
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide

Operating System

Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Form Factor


micro-ATX Form Factor
9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)

Warranty

36 months
