Mainboard Asus PRIME B860M-A WIFI-CSM

Thương hiệu: ASUS Mã sản phẩm: Đang cập nhật
So sánh
5,590,000₫
Bảo hành: 36 tháng Tình trạng: Mới

Mainboard Asus PRIME B860M-A WIFI-CSM DỊCH VỤ NỔI BẬT

  • DỊCH VỤ THU CŨ TẠI NHÀ - ĐỔI MỚI TẬN NƠI
  • DỊCH VỤ VỆ SINH LẮP ĐẶT PC TẠI NHÀ
  • MIỄN PHÍ LẮP ĐẶT TẠI SHOWROOM

Đặt ngay 0938 889 100 (8:30 - 18:00)

  • Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
    Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
  • Hàng chính hãng 100%
    Hàng chính hãng 100%
  • Trả góp qua thẻ tín dụng Visa, Master, JCB
    Trả góp qua thẻ tín dụng Visa, Master, JCB
  • Đổi trả 100% trong 7 ngày
    Đổi trả 100% trong 7 ngày
Phương thức thanh toán

Mainboard Asus PRIME B860M-A WIFI-CSM

ASUS PRIME B860M-A WIFI-CSM: Bo mạch chủ micro-ATX mạnh mẽ với kết nối Wi-Fi 6E - BP STOREMainboard Asus PRIME B860M-A WIFI-CSM

ASUS PRIME B860M-A WIFI-CSM là bo mạch chủ micro-ATX sử dụng chipset Intel B860. Tìm hiểu ngay tại BP STORE!

Giới thiệu:

ASUS PRIME B860M-A WIFI-CSM hỗ trợ kết nối Wi-Fi 6E mới nhất, lý tưởng cho các game thủ và người dùng cần một hệ thống máy tính nhỏ gọn, mạnh mẽ và có khả năng kết nối không dây tốc độ cao.

Điểm nổi bật:

  • Hiệu năng mạnh mẽ:
    • Hỗ trợ bộ vi xử lý Intel Core Ultra thế hệ mới nhất, mang đến hiệu năng xử lý vượt trội.
    • Khe cắm PCIe 5.0 x16 cho card đồ họa rời, đảm bảo hiệu suất đồ họa cao.
    • Hỗ trợ bộ nhớ DDR5 với tốc độ cao lên đến 8666+ MT/s (OC), giúp cải thiện khả năng đa nhiệm và tốc độ load game.
  • Kết nối không dây tốc độ cao:
    • Wi-Fi 6E mới nhất mang đến tốc độ truyền dữ liệu lên đến 10.7Gbps, lý tưởng cho chơi game online, streaming mượt mà và tải xuống file nhanh chóng.
    • Bluetooth® v5.3 hỗ trợ kết nối ổn định với các thiết bị ngoại vi không dây.
  • Lưu trữ tốc độ cao:
    • Hai khe cắm M.2 hỗ trợ chuẩn PCIe 4.0 x4, lý tưởng cho ổ cứng thể rắn M.2 NVMe cung cấp tốc độ đọc/ghi dữ liệu siêu nhanh.
    • Bốn cổng SATA 6Gb/s hỗ trợ ổ cứng HDD hoặc SSD truyền thống.
  • Kết nối mạng ổn định:
    • Card mạng Gigabit LAN 2.5 Realtek cung cấp tốc độ truyền dữ liệu qua mạng nhanh hơn gấp 2.5 lần so với chuẩn Gigabit LAN thông thường, đảm bảo trải nghiệm chơi game online mượt mà.
  • Âm thanh chất lượng cao:
    • Realtek 7.1 Surround Sound High Definition Audio CODEC mang đến chất lượng âm thanh trung thực, sống động.
  • Khả năng mở rộng linh hoạt:
    • Khe cắm PCIe 5.0 x16 cho card đồ họa rời.
    • Khe cắm PCIe 4.0 x16 (x4 mode) và PCIe 4.0 x1 cho các card mở rộng khác.
  • ASUS Q-Design: Các tính năng thiết kế thông minh giúp quá trình lắp ráp dễ dàng hơn, tiết kiệm thời gian.
  • Aura Sync: Tùy chỉnh hiệu ứng ánh sáng RGB để tạo sự cá tính cho hệ thống máy tính.

Thông số kỹ thuật:

  • Chipset: Intel B860
  • Socket: LGA1851
  • Bộ nhớ: 2 khe DDR5, tối đa 128GB
  • Khe cắm mở rộng: 4 khe DDR5, tối đa 256GB

Đối tượng sử dụng

  • Game thủ: Chơi các tựa game yêu thích ở độ phân giải cao với tốc độ khung hình mượt mà.
  • Người dùng cần hiệu năng cao: Chỉnh sửa ảnh, video, làm việc đa nhiệm hiệu quả.
  • Người dùng văn phòng: Documente word, excel, lướt web...

Kết luận:

ASUS PRIME B860M-A WIFI-CSM là một lựa chọn tuyệt vời cho những người dùng đang tìm kiếm một bo mạch chủ micro-ATX mạnh mẽ, ổn định và đầy đủ tính năng. Với chipset Intel B860, hỗ trợ bộ vi xử lý Intel thế hệ mới nhất, kết nối Wi-Fi 6E siêu tốc và các tính năng tiên tiến khác, bo mạch chủ này đáp ứng được mọi nhu cầu của người dùng, từ làm việc, học tập đến giải trí.

Order ASUS PRIME B860M-A WIFI-CSM tại BP Store để trải nghiệm sức mạnh tối cao!

Bạn có bất cứ thắc mắc về sản phẩm PC, liên hệ ngay Hotline: 093 888 9100. Hoặc nhắn tin đến BP Store để giải đáp mọi thắc mắc của bạn nhé.

Mainboard Asus PRIME B860M-A WIFI-CSM

Mainboard Asus PRIME B860M-A WIFI-CSM

Model

PRIME B860M-A WIFI-CSM

CPU

Support Intel® Core™ Ultra Processors (Series 2) , LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
*Refer to https://www.asus.com/support/download-center/ for CPU support list.
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Bộ Chip

Intel® B860 Chipset

Bộ nhớ

4 x DIMM slots, max. 256GB, DDR5
Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Đồ họa

2 x DisplayPort**
1 x HDMI™ port***
 * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
***** VGA resolution support depends on processors' or graphic cards' resolution.
******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Khe cắm mở rộng

Intel® Core™ Ultra Processors(series 2)*
1 x PCIe 5.0 x16 slot
Intel® B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Lưu trữ

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)
Intel®B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later
** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A )
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)**
Front USB (Total 5 ports)
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
*USB Type-C® power delivery output: max. 5V/3A
**USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

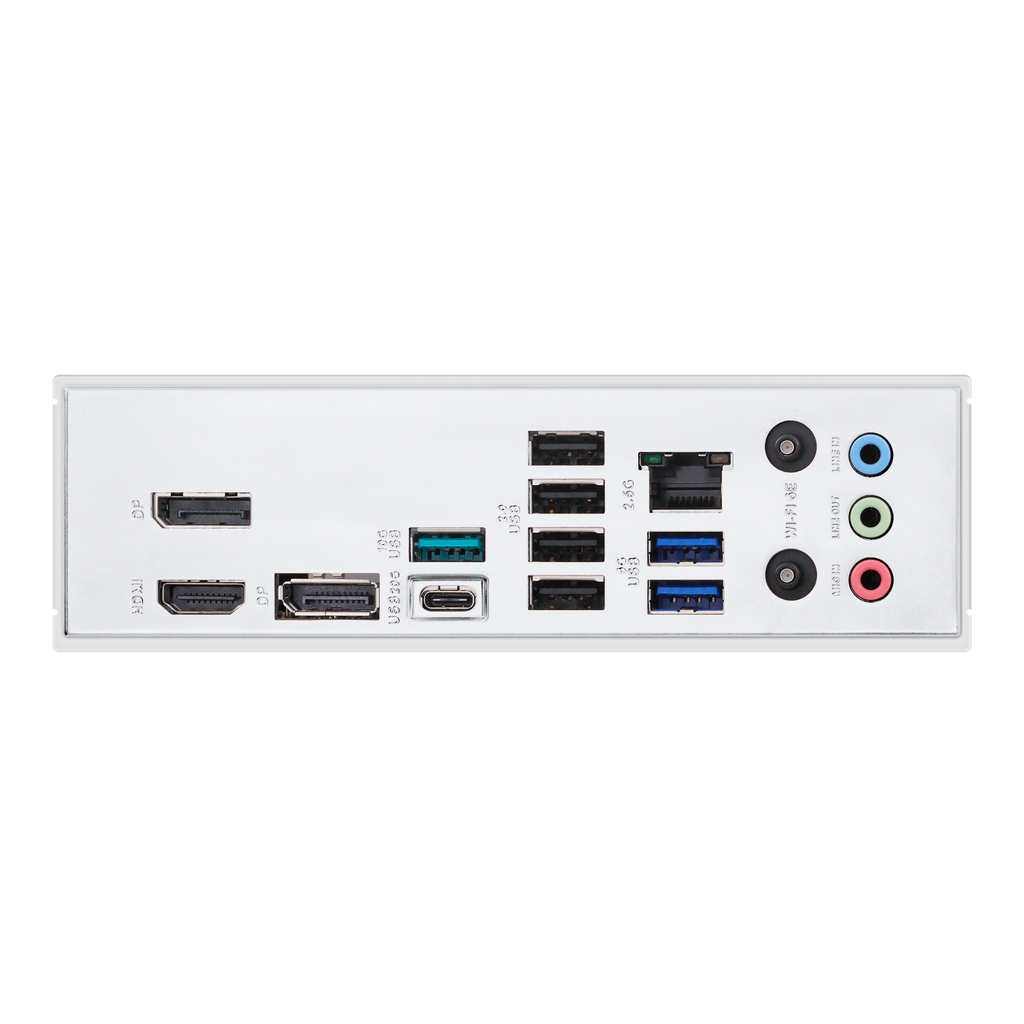

Cổng I/O mặt sau

1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A )
2 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Đầu nối I/O nội bộ

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additionalUSB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header

Các tính năng đặc biệt

ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Aura RGB header
- Addressable Gen2 headers

Tính năng phần mềm

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Khả năng quản lý

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
1 x Screw package for M.2 SSD
Documentation
1 x ACC Express Activation Key Card
1 x Quick start guide

Hệ điều hành

Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)

Form Factor


micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Warranty

36 months
