Mainboard Asus PRIME B860-PLUS WIFI

Mainboard Asus PRIME B860-PLUS WIFI: Kết nối hoàn hảo, hiệu năng tối ưu - BP STOREMainboard Asus PRIME B860-PLUS WIFI

Mainboard Asus PRIME B860-PLUS WIFI là bo mạch chủ ATX mạnh mẽ, được thiết kế để đáp ứng nhu cầu làm việc và giải trí đa dạng, đồng thời mang đến kết nối không dây tốc độ cao. Tìm hiểu ngay tại BP STORE!

Giới thiệu:

Mainboard Asus PRIME B860-PLUS WIFI dựa trên chipset Intel B860, hỗ trợ bộ vi xử lý Intel Core Ultra thế hệ mới nhất (Series 2) cho socket LGA 1851, RAM DDR5 tốc độ cao, kết nối 2.5Gb Ethernet, Wi-Fi 6E và Bluetooth 5.3, cùng nhiều tính năng tiên tiến khác.

Điểm nổi bật:

  • Hiệu năng vượt trội: Hỗ trợ bộ vi xử lý Intel Core Ultra thế hệ mới nhất (Series 2), mang lại hiệu năng mạnh mẽ cho mọi tác vụ, từ làm việc văn phòng đến giải trí đa phương tiện. Hỗ trợ Intel® Turbo Boost Technology 2.0 và Intel® Turbo Boost Max Technology 3.0.
  • RAM DDR5 tốc độ cao: Hỗ trợ 4 khe cắm DIMM DDR5, cho phép dung lượng RAM lên đến 256GB và tốc độ ấn tượng lên đến 8666+MT/s (OC). Hỗ trợ Intel® Extreme Memory Profile (XMP) và ASUS Enhanced Memory Profile III (AEMP III) cho phép dễ dàng tối ưu hóa hiệu suất RAM.
  • Kết nối không dây tốc độ cao: Tận hưởng tốc độ internet không dây cực nhanh với Wi-Fi 6E (802.11ax) và kết nối ổn định với các thiết bị ngoại vi qua Bluetooth 5.3. Hỗ trợ băng tần 2.4/5/6GHz.
  • Kết nối có dây tốc độ cao: Trang bị cổng mạng Realtek 2.5Gb Ethernet, đảm bảo kết nối internet nhanh chóng và ổn định cho công việc và giải trí trực tuyến. Tích hợp công nghệ ASUS LANGuard bảo vệ chống sốc điện và tĩnh điện.
  • Lưu trữ linh hoạt: Hỗ trợ 2 khe cắm M.2 (1x PCIe 5.0 x4, 1x PCIe 4.0 x4) và 4 cổng SATA 6Gb/s, cho phép bạn thoải mái lựa chọn và kết hợp các loại ổ cứng SSD và HDD để tối ưu hóa tốc độ và dung lượng lưu trữ.
  • Kết nối đồ họa đa dạng: Trang bị 1 cổng DisplayPort (hỗ trợ 4K@60Hz) và 1 cổng HDMI 2.1 (hỗ trợ 4K@60Hz), cho phép bạn kết nối với nhiều loại màn hình và thiết bị hiển thị.
  • Âm thanh chất lượng cao: Tận hưởng âm thanh sống động và chân thực với Realtek 7.1 Surround Sound High Definition Audio CODEC, hỗ trợ Jack-detection, Multi-streaming và Front Panel Jack-retasking.
  • USB đa dạng: Cổng USB 20Gbps (Type-C), USB 10Gbps (Type-A), USB 5Gbps (Type-A) và USB 2.0 (Type-A) ở mặt sau và mặt trước, đáp ứng mọi nhu cầu kết nối thiết bị ngoại vi.
  • Tính năng ASUS độc quyền: 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot, Stainless-steel back I/O), Q-Design, Thermal Solution, EZ DIY, Aura Sync.
  • Aura Sync: Đồng bộ hệ thống đèn RGB với các thiết bị tương thích, tạo nên hiệu ứng ánh sáng ấn tượng.
  • Phần mềm ASUS độc quyền: Armoury Crate, AI Advisor, DriverHub, GlideX, CPU-Z.

Thông số kỹ thuật:



  • CPU: Hỗ trợ Intel Core Ultra Processors (Series 2), LGA1851
  • Chipset: Intel B860
  • Bộ nhớ: 4 x DIMM DDR5, tối đa 256GB
  • Khe cắm mở rộng: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 3 x PCIe 4.0 x1
  • Lưu trữ: 2 x M.2, 4 x SATA 6Gb/s
  • Mạng: 2.5Gb Ethernet, Wi-Fi 6E, Bluetooth 5.3
  • Âm thanh: Realtek 7.1
  • Cổng kết nối: DisplayPort, HDMI, USB Type-C, USB Type-A
  • Kích thước: ATX



Đối tượng sử dụng

  • Người dùng phổ thông
  • Game thủ tầm trung
  • Người dựng phim/ảnh cơ bản
  • Người làm việc văn phòng

Kết luận:

ASUS PRIME B860-PLUS WIFI là một lựa chọn tuyệt vời cho những ai đang tìm kiếm một bo mạch chủ ATX mạnh mẽ, ổn định, đa năng và có kết nối không dây tốc độ cao. Với những tính năng tiên tiến và mức giá hợp lý, PRIME B860-PLUS WIFI sẽ là nền tảng vững chắc cho cỗ máy tính của bạn.

Order ASUS PRIME B860-PLUS WIFI tại BP Store để trải nghiệm sức mạnh tối cao!

Bạn có bất cứ thắc mắc về sản phẩm PC, liên hệ ngay Hotline: 093 888 9100. Hoặc nhắn tin đến BP Store để giải đáp mọi thắc mắc của bạn nhé.

Mainboard Asus PRIME B860-PLUS WIFI

Mainboard Asus PRIME B860-PLUS WIFI

Model

PRIME B860-PLUS WIFI

CPU

Support Intel® Core Ultra Processors (Series 2) , LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® B860 Chipset

BỘ NHỚ

4 x DIMM slots, max. 256GB, DDR5
Support up to  8666+MT/s (OC),  Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

ĐỒ HỌA

1 x DisplayPort**
1 x HDMI port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
***** VGA resolution support depends on processors' or graphic cards' resolution.

KHE CẮM MỞ RỘNG

Intel® Core™ Ultra Processors (Series 2)*
1 x PCIe 5.0 x16 slot (PCIEX16(G5))
Intel® B860 Chipset
1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode)
3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode)
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

LƯU TRỮ

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2)*

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

ETHERNET

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

KHÔNG DÂY & BLUETOOTH

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later
** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
2 x USB 10Gbps ports (2 x Type-A)
1 x USB 5Gbps port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 5Gbps port (1 x USB Type-C®)
1 x USB 5Gbps header supports additional 2 USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports

ÂM THANH

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

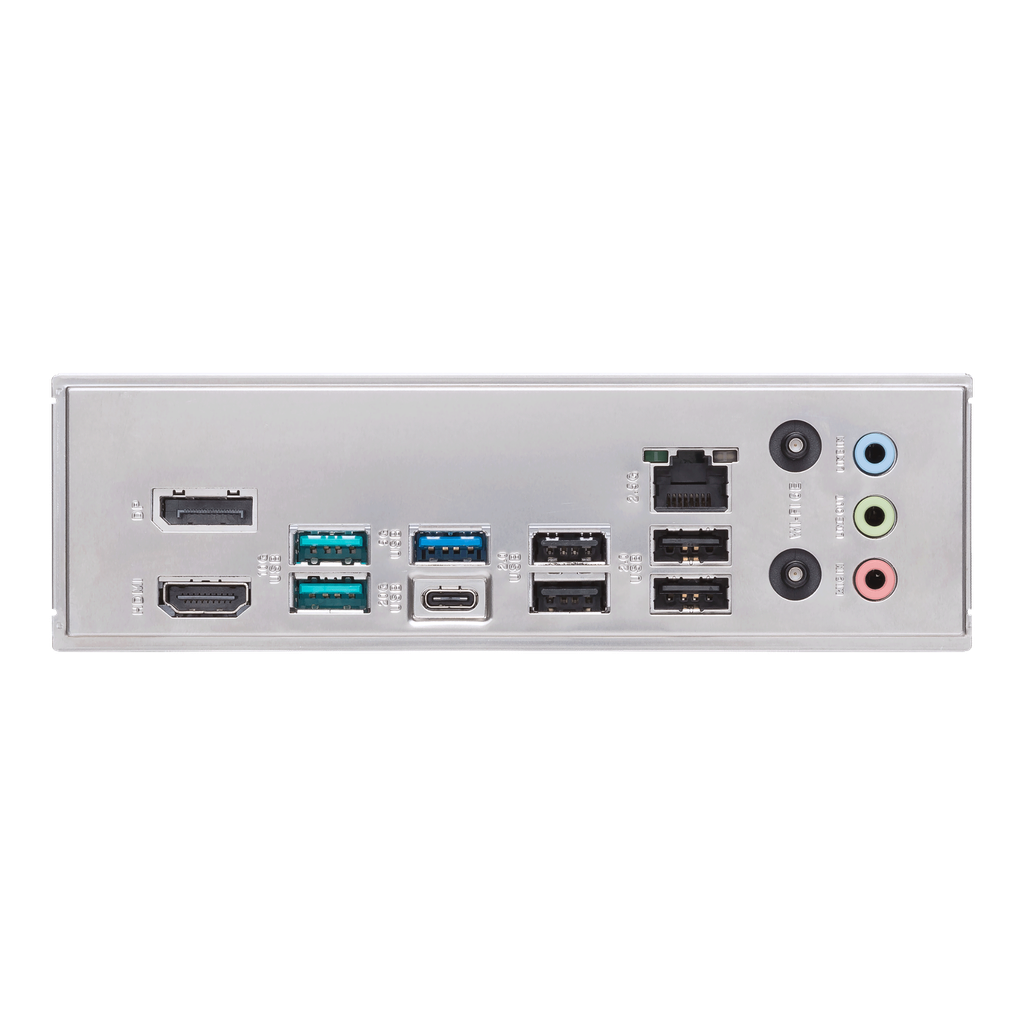

CỔNG I/O MẶT SAU

1 x USB 20Gbps port (1 x USB Type-C®)
2 x USB 10Gbps ports (2 x Type-A)
1 x USB 5Gbps port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks

ĐẦU NỐI I/O NỘI BỘ


Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt (USB4®) header

CÁC TÍNH NĂNG ĐẶC BIỆT

ASUS 5X PROTECTION III
-DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

TÍNH NĂNG PHẦN MỀM


ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

BIOS

2 x 128 Mb Flash ROM, UEFI AMI BIOS

KHẢ NĂNG QUẢN LÝ

WOL by PME, UEFI PXE

PHỤ KIỆN ĐI KÈM



Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide

HỆ ĐIỀU HÀNH


Windows 11  (22H2 & later), Windows 10 64-bit(21H2 & later)

FORM FACTOR

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm)

Warranty

36 months
