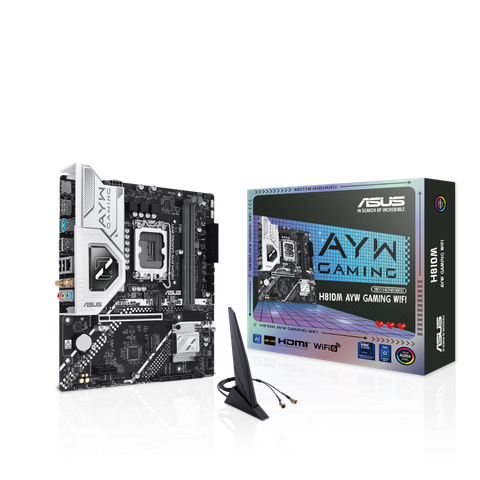

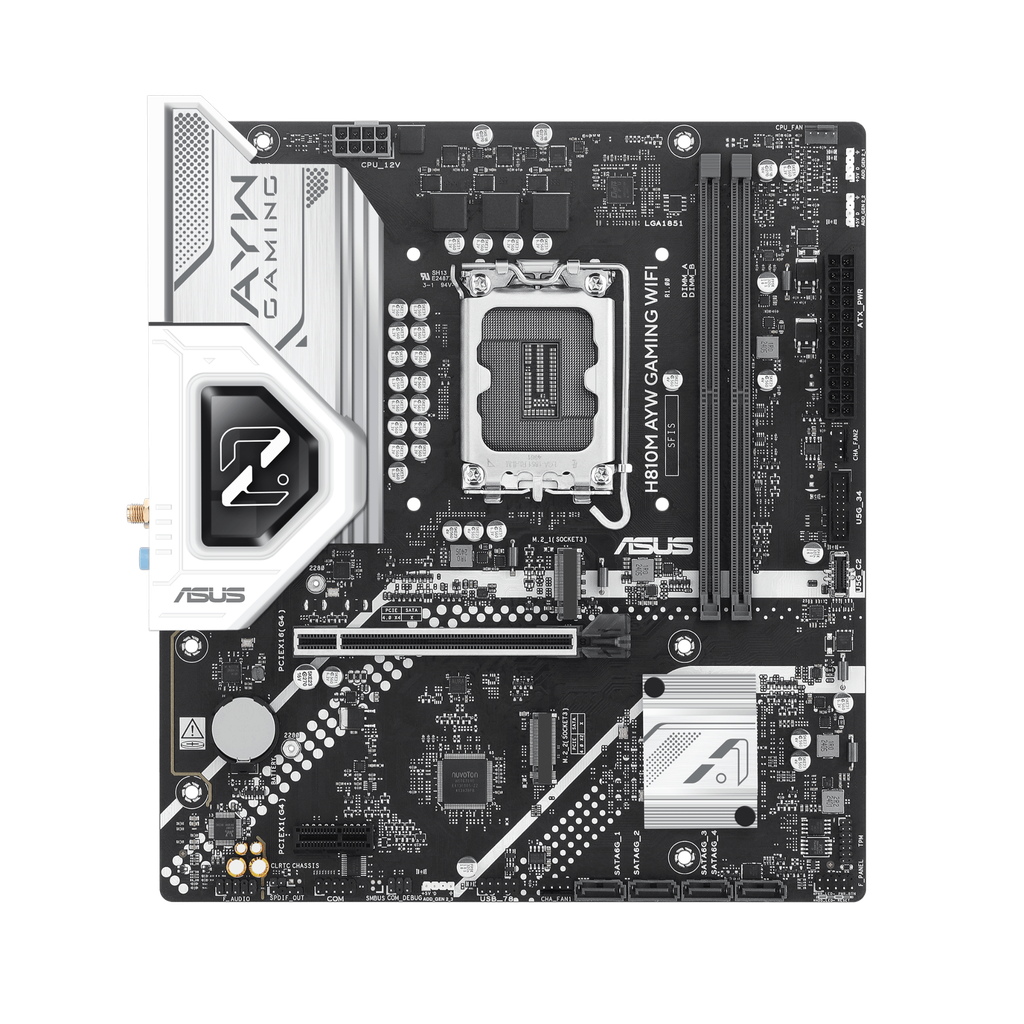

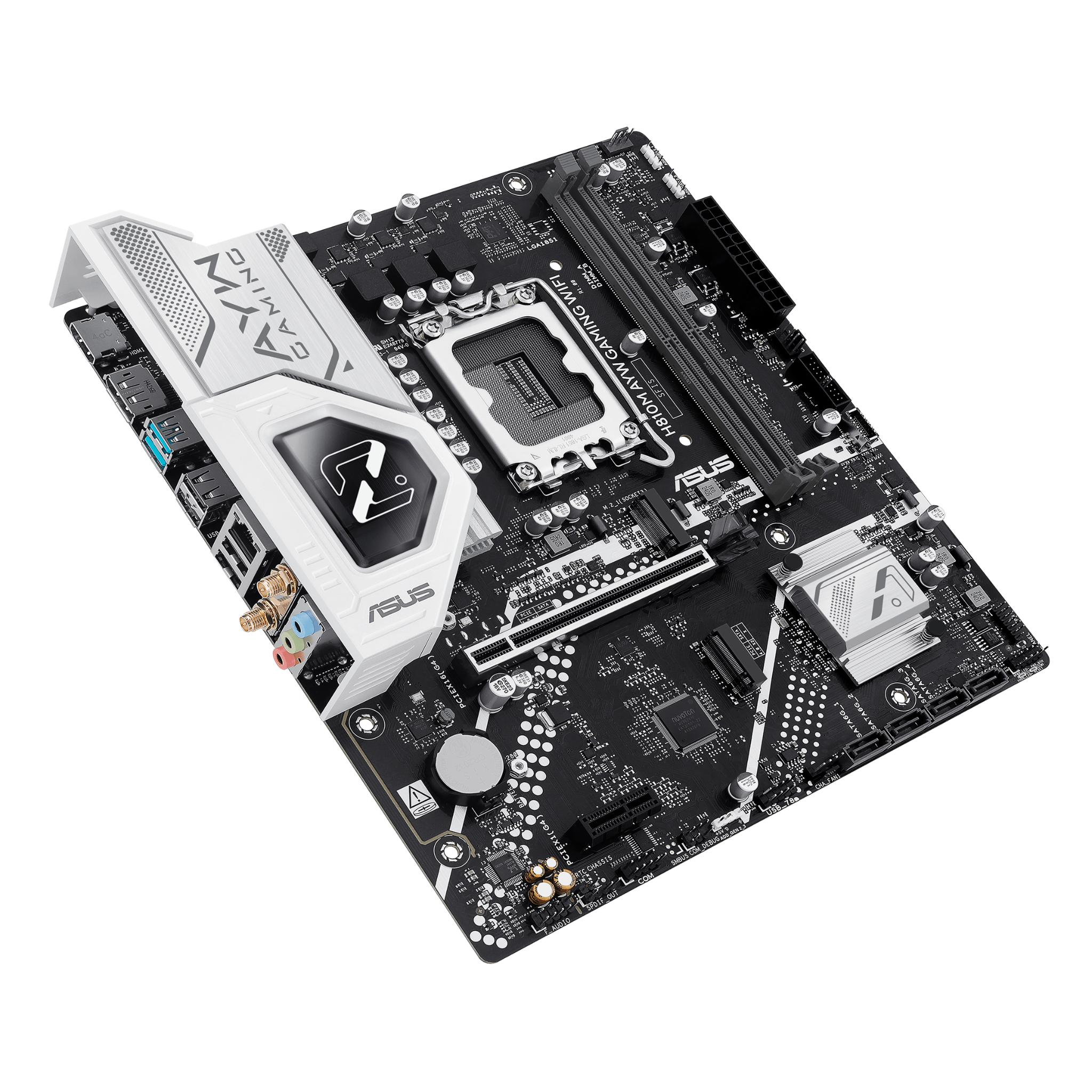

Mainboard Asus H810M AYW GAMING WIFI

Thương hiệu: ASUS Mã sản phẩm: Đang cập nhật
So sánh
3,490,000₫
Bảo hành: 36 tháng Tình trạng: Mới

Mainboard Asus H810M AYW GAMING WIFI DỊCH VỤ NỔI BẬT

  • DỊCH VỤ THU CŨ TẠI NHÀ - ĐỔI MỚI TẬN NƠI
  • DỊCH VỤ VỆ SINH LẮP ĐẶT PC TẠI NHÀ
  • MIỄN PHÍ LẮP ĐẶT TẠI SHOWROOM

Đặt ngay 0938 889 100 (8:30 - 18:00)

  • Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
    Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
  • Hàng chính hãng 100%
    Hàng chính hãng 100%
  • Trả góp qua thẻ tín dụng Visa, Master, JCB
    Trả góp qua thẻ tín dụng Visa, Master, JCB
  • Đổi trả 100% trong 7 ngày
    Đổi trả 100% trong 7 ngày
Phương thức thanh toán

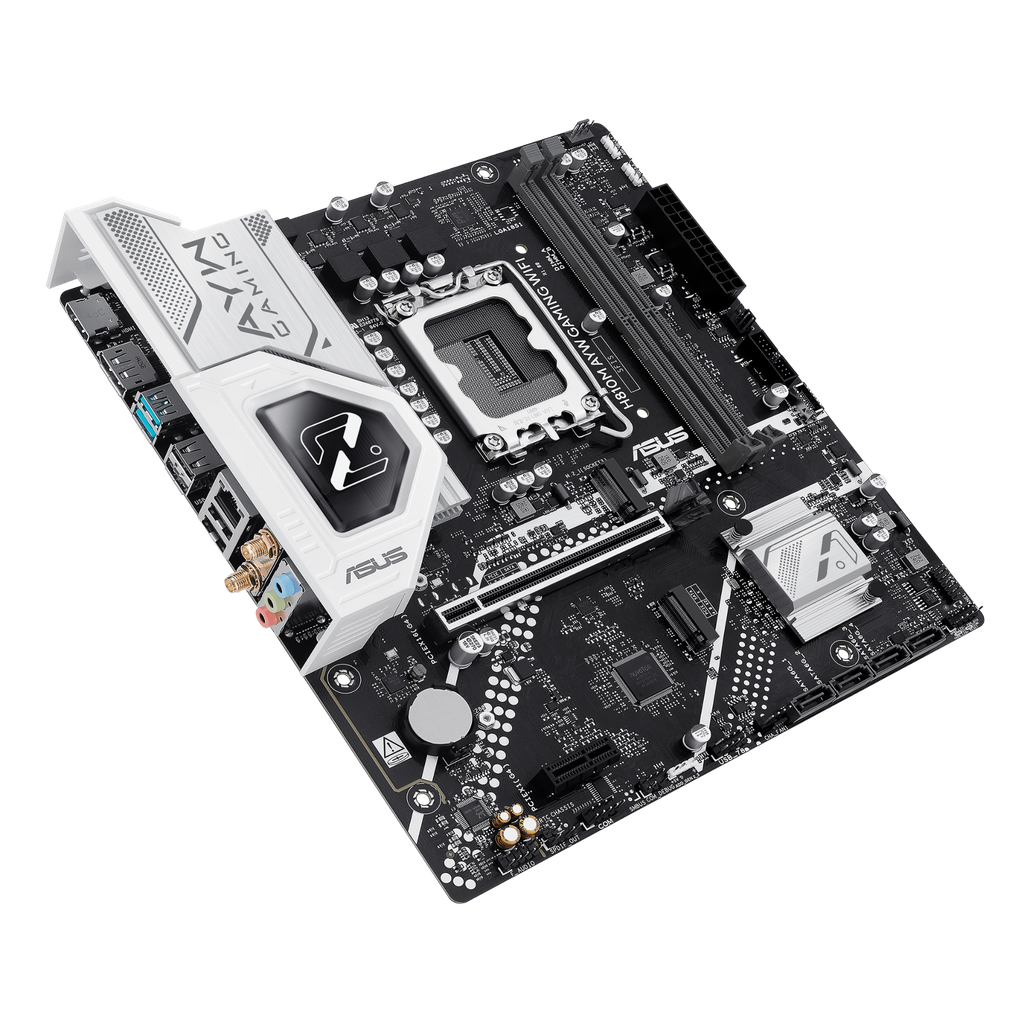

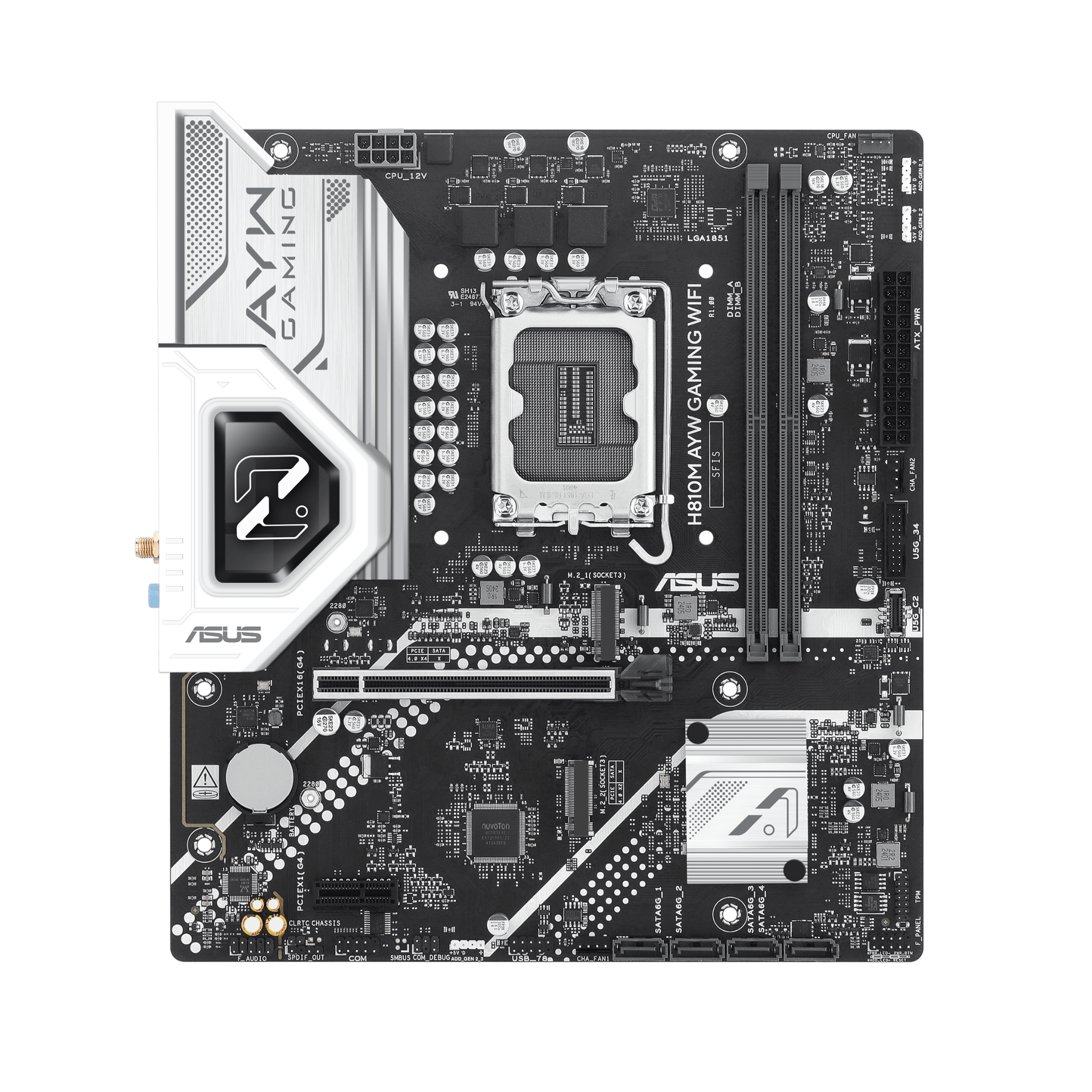

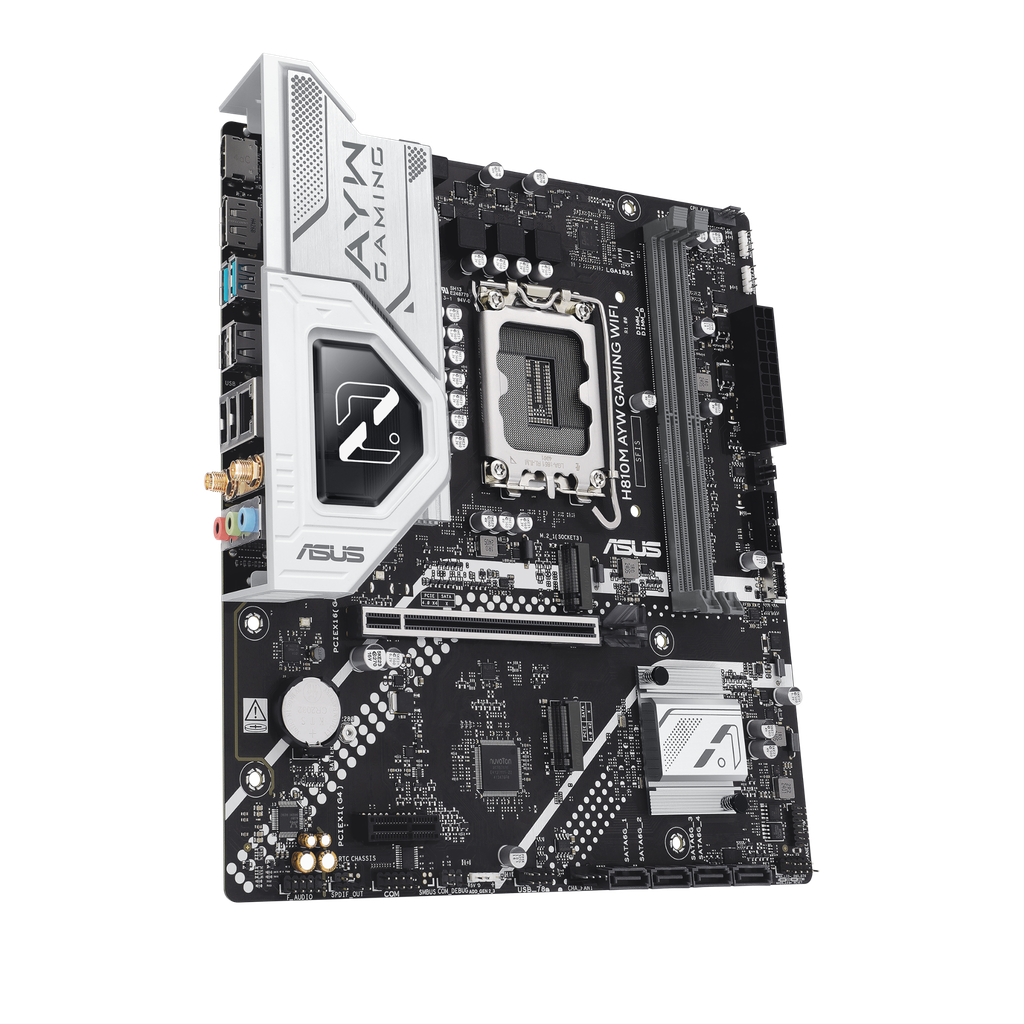

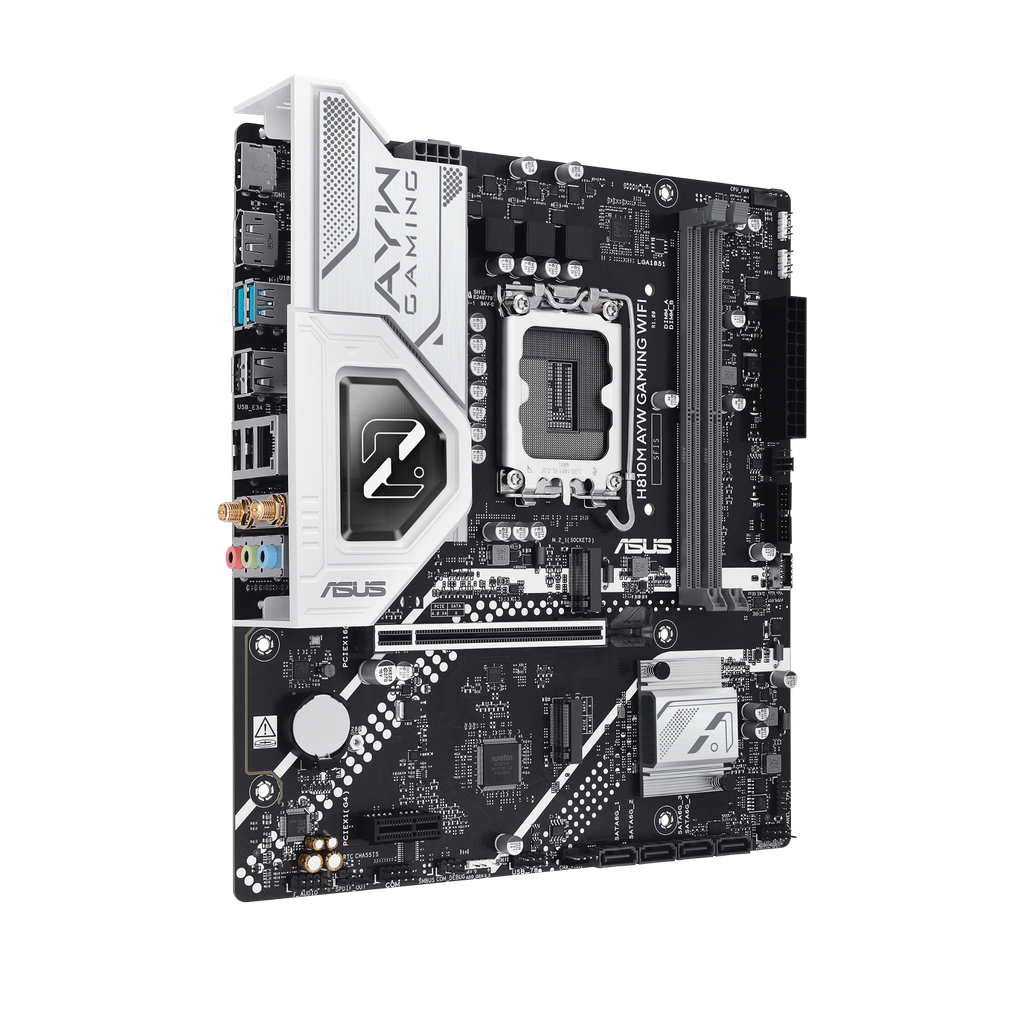

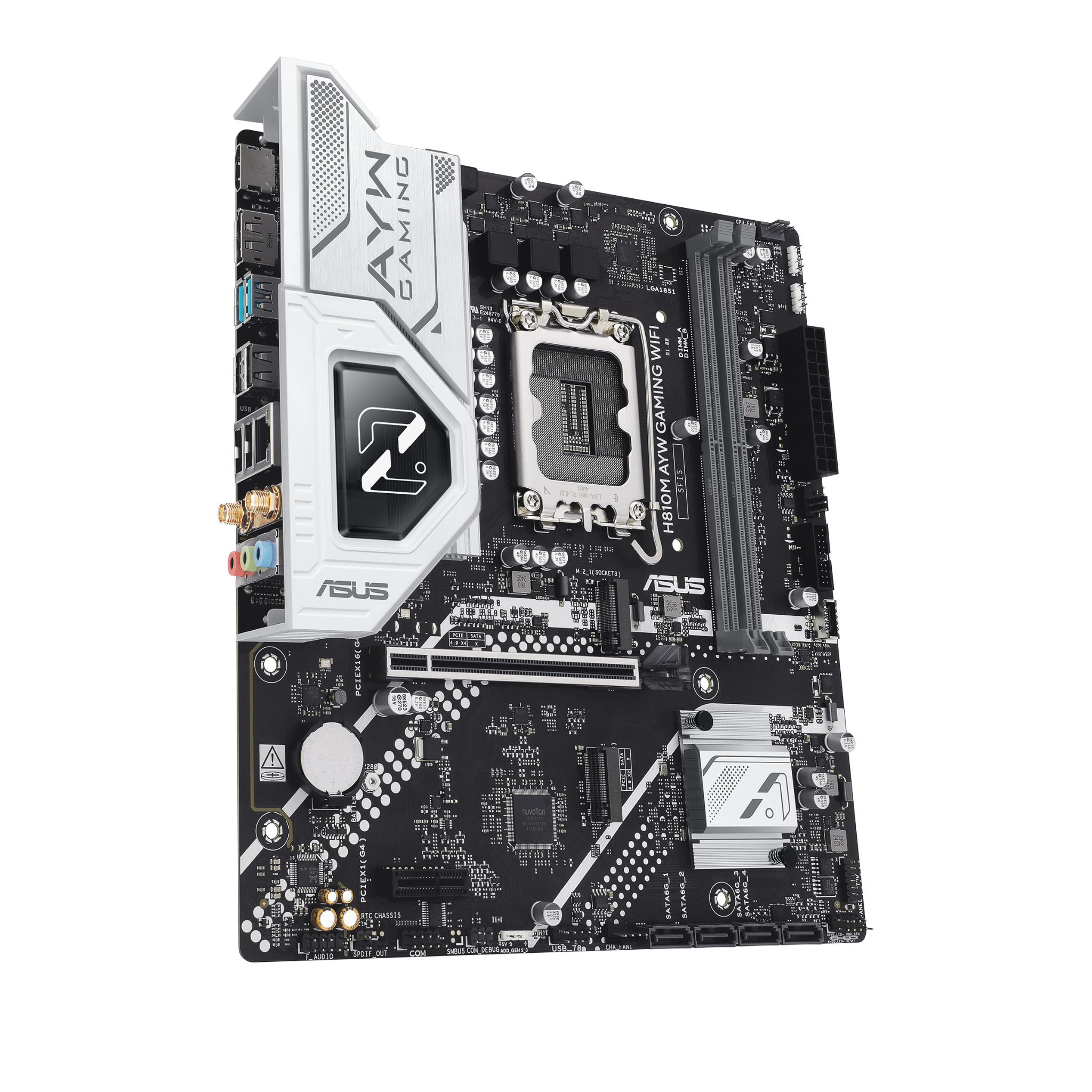

Mainboard Asus H810M AYW GAMING WIFI

ASUS PRIME H810M AYW GAMING WIFI: Bo mạch chủ micro-ATX dành cho game thủ - BP STOREMainboard Asus H810M AYW GAMING WIFI

ASUS PRIME H810M AYW GAMING WIFI là bo mạch chủ micro-ATX được thiết kế đáp ứng nhu cầu của người dùng chơi game. Tìm hiểu ngay tại BP STORE!

Giới thiệu:

ASUS PRIME H810M AYW GAMING WIFI với chipset Intel H810, hỗ trợ bộ vi xử lý Intel thế hệ mới nhất, kết nối Wi-Fi 6 và các tính năng dành cho game thủ, bo mạch chủ này mang đến hiệu năng mạnh mẽ, độ ổn định cao, kết nối không dây tốc độ cao và nhiều tính năng hỗ trợ chơi game tốt.

Điểm nổi bật:



  • Hiệu năng mạnh mẽ:
    • Hỗ trợ bộ vi xử lý Intel Core Ultra thế hệ mới nhất, ép xung RAM DDR5 lên đến 6400 MT/s cho hiệu năng chơi game mượt mà.
    • Khe cắm PCIe 4.0 x16 cho card đồ họa rời, đảm bảo hiệu suất đồ họa cao cho các tựa game yêu cầu cấu hình mạnh.
    • Khe cắm M.2 PCIe 4.0 x4 thế hệ mới, giúp bạn tận dụng tốc độ siêu nhanh của các ổ cứng thể rắn M.2 NVMe.
  • Kết nối không dây tốc độ cao:
    • Wi-Fi 6: Cung cấp tốc độ truyền dữ liệu không dây nhanh hơn, độ trễ thấp hơn, lý tưởng cho chơi game online.
    • Bluetooth 5.3: Kết nối không dây ổn định với các thiết bị ngoại vi tương thích.
  • Tính năng dành cho game thủ:
    • ASUS Q-Design: Các tính năng thiết kế thông minh giúp quá trình lắp ráp dễ dàng hơn.
    • ASUS 5X Protection III: Bộ công nghệ bảo vệ toàn diện giúp bo mạch chủ hoạt động ổn định và bền bỉ.
  • Aura Sync: Hệ thống đèn nền LED Aura Sync có thể đồng bộ hóa với các linh kiện tương thích khác tạo nên hiệu ứng ánh sáng đẹp mắt.



Thông số kỹ thuật:

  • Chipset: Intel H810
  • Socket: LGA1851
  • Bộ nhớ: 2 khe DDR5, tối đa 128GB
  • Khe cắm mở rộng: 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x1
  • Lưu trữ: 2 x M.2, 4 x SATA 6Gb/
  • Mạng: LAN 1GbE, Wi-Fi 6
  • Âm thanh: Realtek 7.1 Surround Sound High Definition Audio CODEC

Đối tượng sử dụng

  • Người dùng chơi game

Kết luận:

ASUS PRIME H810M AYW GAMING WIFI là lựa chọn tuyệt vời cho những người dùng tìm kiếm bo mạch chủ micro-ATX giá cả phải chăng, hiệu năng mạnh mẽ, nhiều tính năng dành cho game thủ và kết nối Wi-Fi 6 tốc độ cao. Ngoài ra, các tính năng cần thiết và độ bền cao giúp ASUS PRIME H810M AYW GAMING WIFI là nền tảng đáng tin cậy để xây dựng một hệ thống máy tính chơi game ổn định.

Order ASUS PRIME H810M AYW GAMING WIFI tại BP Store để trải nghiệm sức mạnh tối cao!

Bạn có bất cứ thắc mắc về sản phẩm PC, liên hệ ngay Hotline: 093 888 9100. Hoặc nhắn tin đến BP Store để giải đáp mọi thắc mắc của bạn nhé.

Mainboard Asus H810M AYW GAMING WIFI

Mainboard Asus H810M AYW GAMING WIFI

Model

H810M AYW GAMING WIFI

CPU

Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Bộ Chip

Intel® H810 Chipset

Memory

2 x DIMM slots, max. 128GB, DDR5
Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel® H810 Chipset
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H810 Chipset

M.2_1 slot (Key M), type 2280  (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports

Ethernet

1 x Intel® 1Gb Ethernet port*
ASUS LANGuard
*With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.

Wireless & Bluetooth

Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3*
* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 6 ports)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 5Gbps connector (supports USB Type-C®)*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

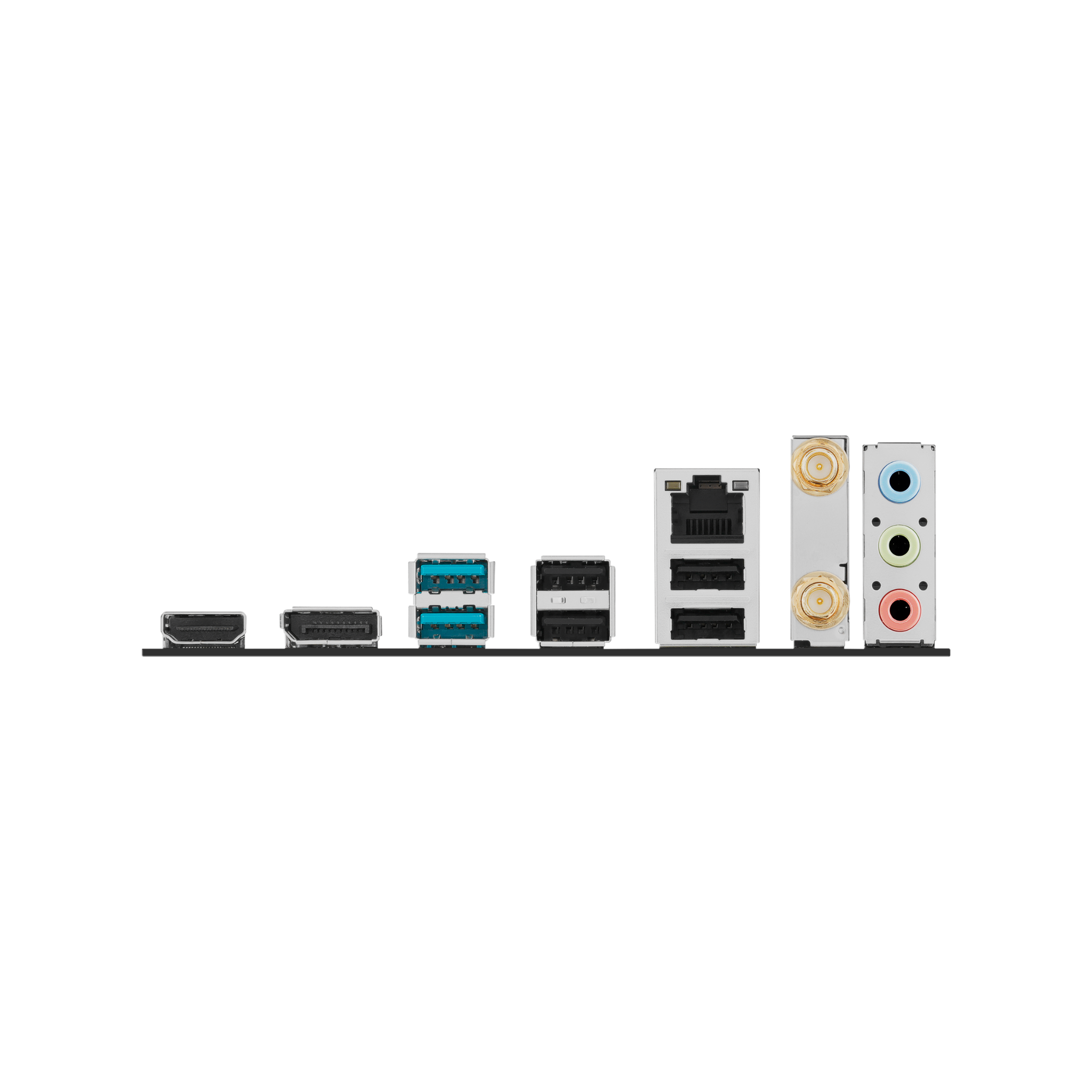

Back Panel I/O Ports

2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- Q-DIMM
- Q-Dashboard
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
Aura Sync
- Addressable Gen 2 headers

Software Features


ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

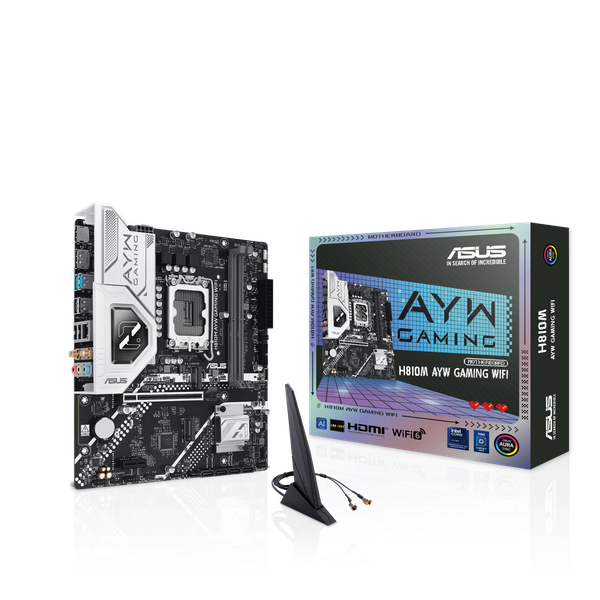

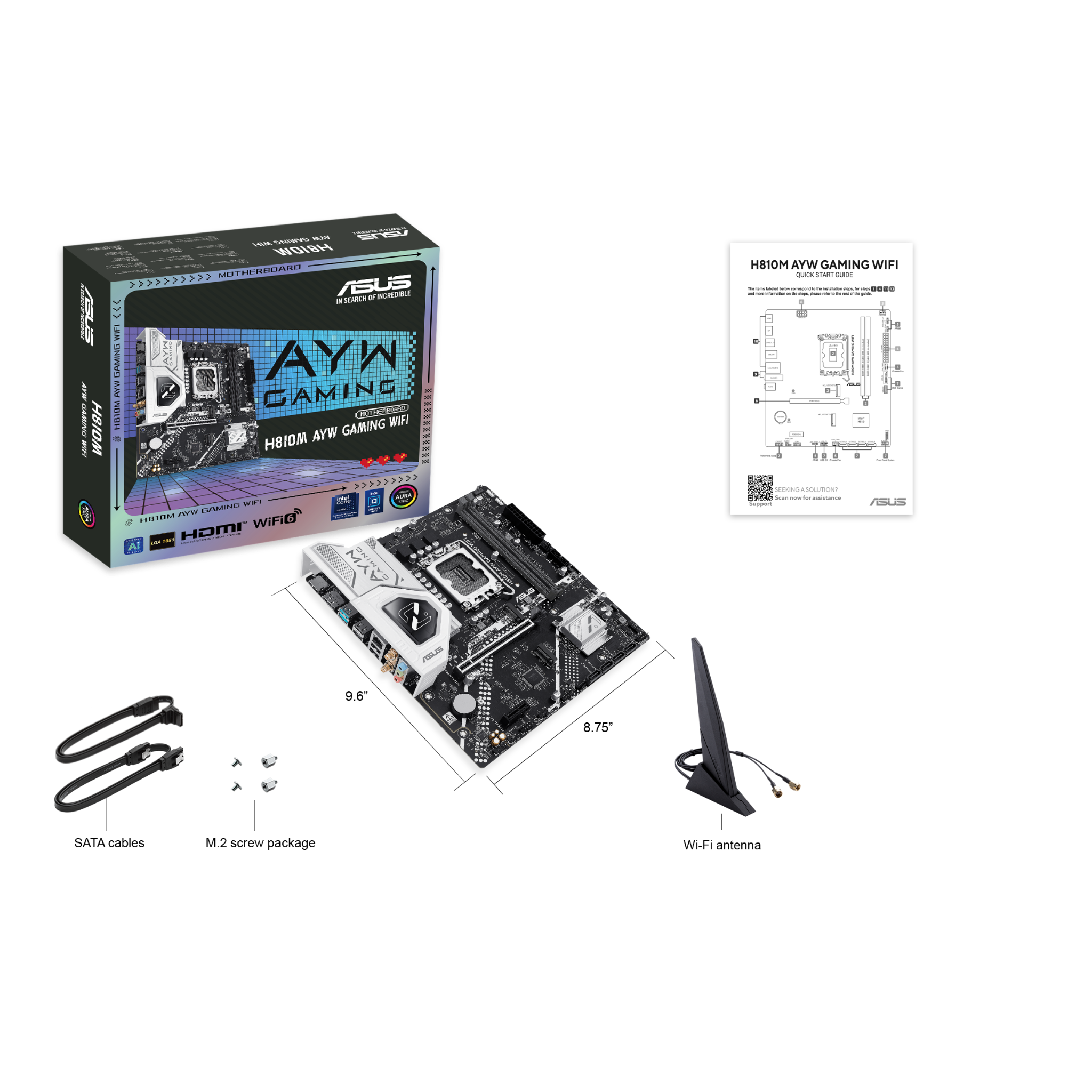

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous

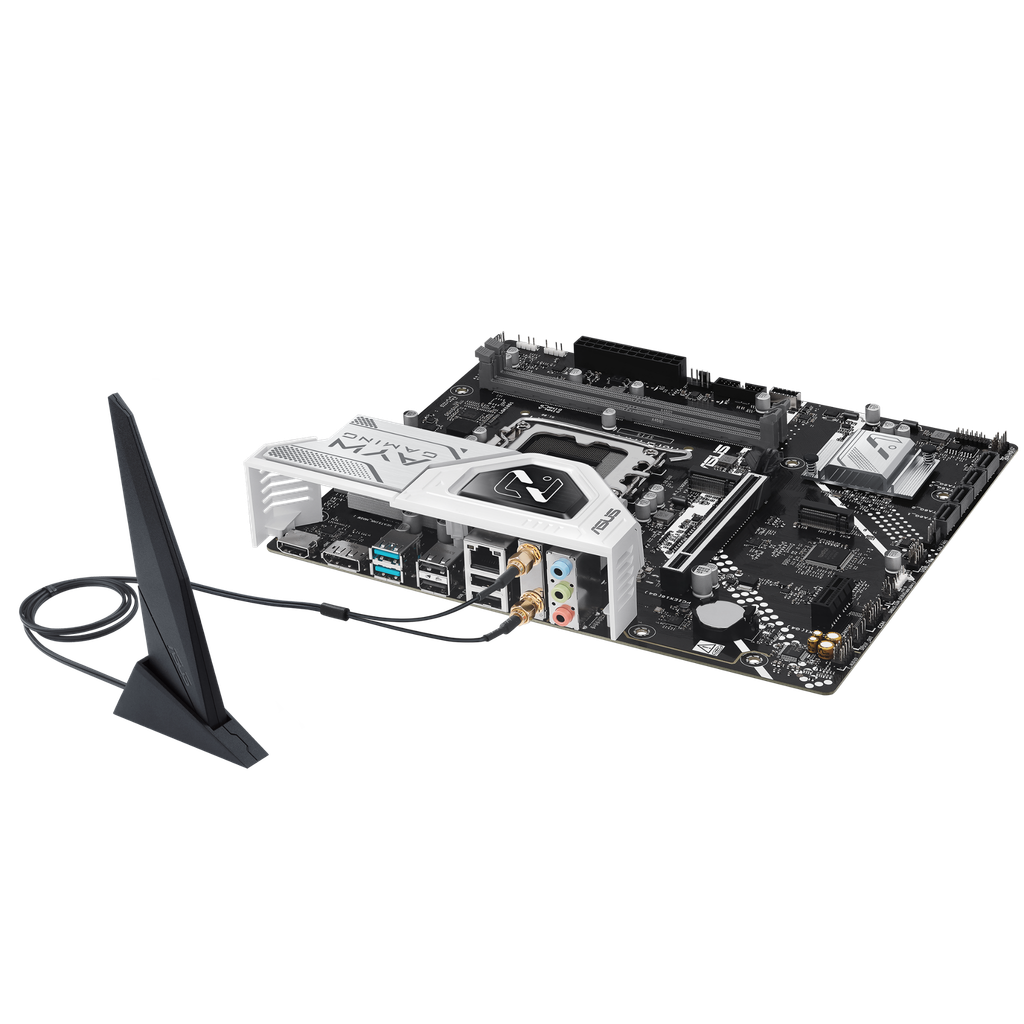

1 x ASUS Wi-Fi moving antenna
1 x I/O shield
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide

Operating System

Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Form Factor


micro-ATX Form Factor
9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)

Warranty

36 months
