Mainboard Asus EX-B860M-V5

Thương hiệu: ASUS Mã sản phẩm: Đang cập nhật
So sánh
Liên hệ
Bảo hành: 36 tháng Tình trạng: Mới

Mainboard Asus EX-B860M-V5 DỊCH VỤ NỔI BẬT

  • DỊCH VỤ THU CŨ TẠI NHÀ - ĐỔI MỚI TẬN NƠI
  • DỊCH VỤ VỆ SINH LẮP ĐẶT PC TẠI NHÀ
  • MIỄN PHÍ LẮP ĐẶT TẠI SHOWROOM

Đặt ngay 0938 889 100 (8:30 - 18:00)

  • Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
    Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
  • Hàng chính hãng 100%
    Hàng chính hãng 100%
  • Trả góp qua thẻ tín dụng Visa, Master, JCB
    Trả góp qua thẻ tín dụng Visa, Master, JCB
  • Đổi trả 100% trong 7 ngày
    Đổi trả 100% trong 7 ngày
Phương thức thanh toán

Mainboard Asus EX-B860M-V5

Mainboard Asus EX-B860M-V5: Bền bỉ, Ổn định, Hiệu năng cho Doanh Nghiệp - BP STOREMainboard Asus EX-B860M-V5

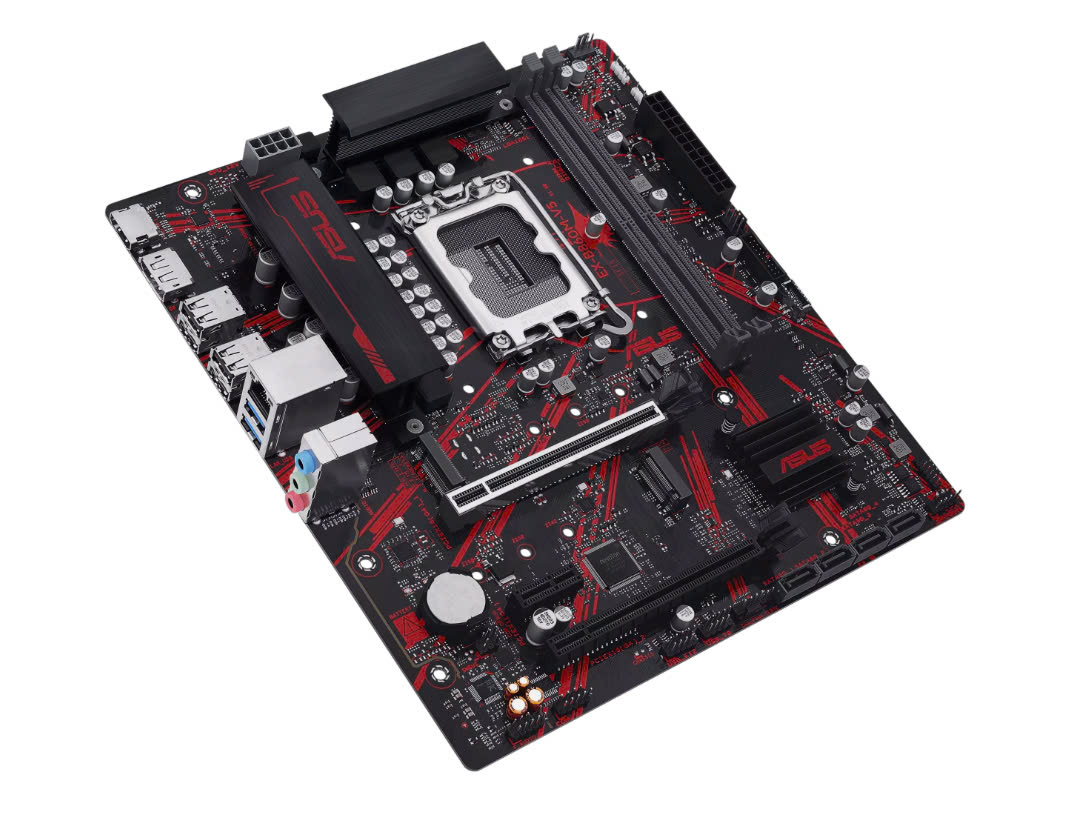

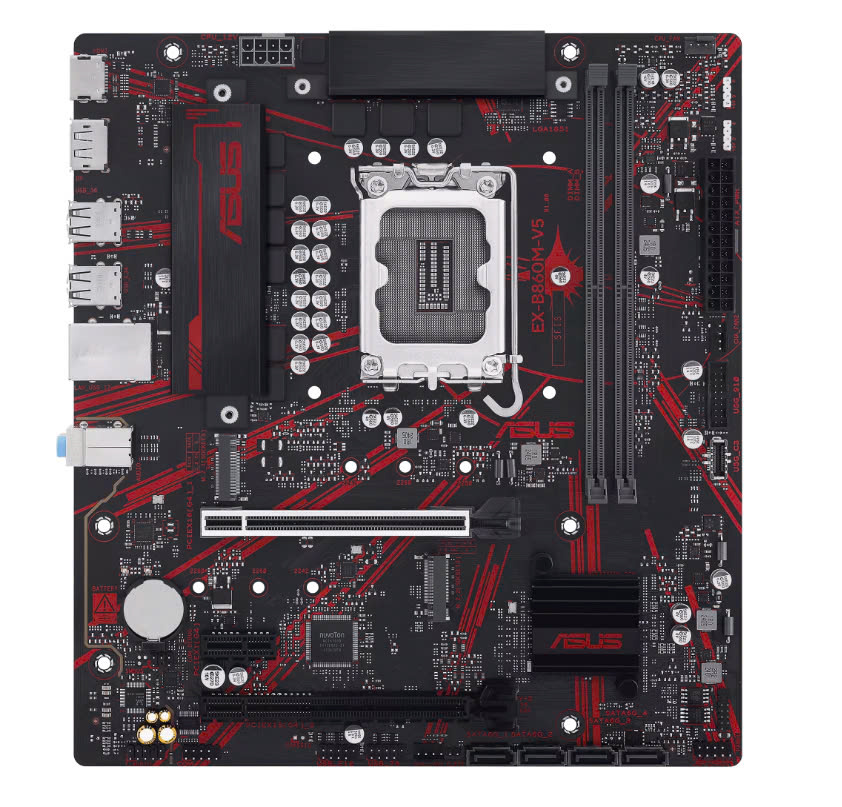

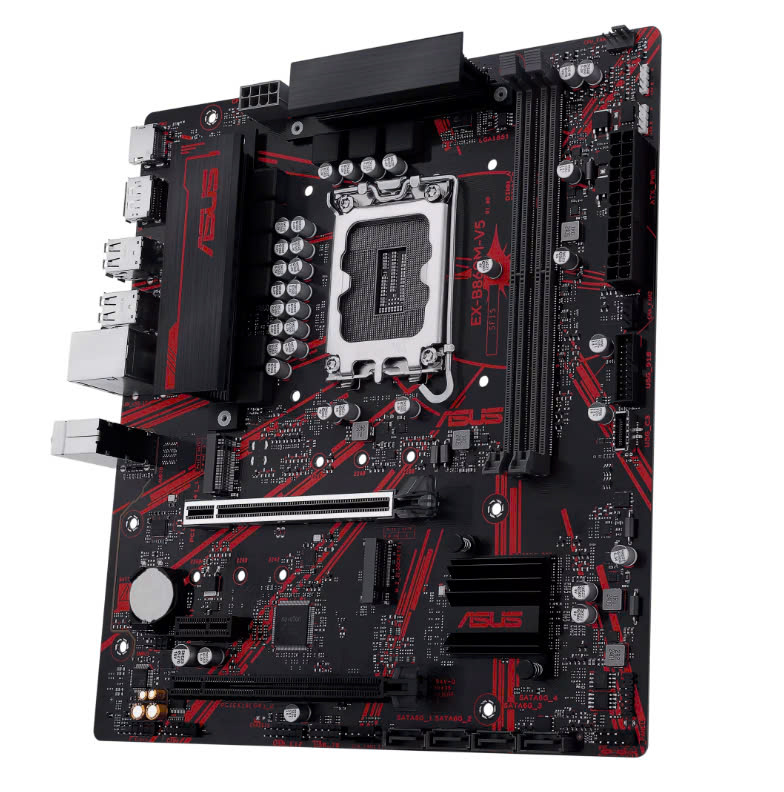

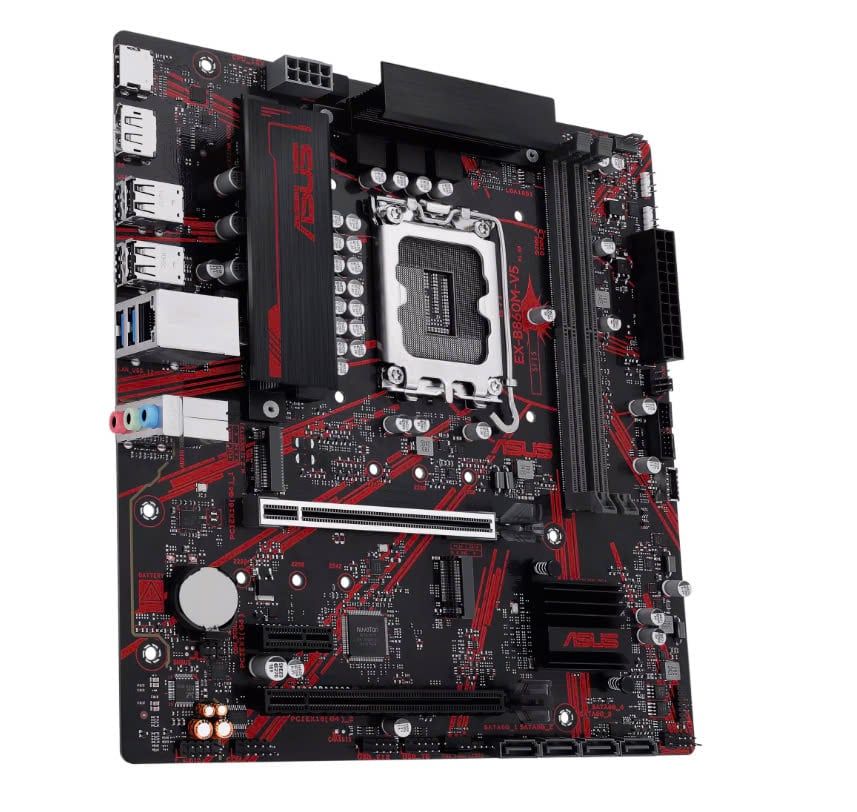

Mainboard Asus EX-B860M-V5 là bo mạch chủ micro-ATX được thiết kế đặc biệt cho môi trường doanh nghiệp, mang đến sự bền bỉ, ổn định và hiệu năng tối ưu. Tìm hiểu ngay tại BP STORE!

Giới thiệu:

Mainboard Asus EX-B860M-V5 dựa trên chipset Intel B860, hỗ trợ bộ vi xử lý Intel Core Ultra thế hệ mới nhất (Series 2) cho socket LGA 1851, RAM DDR5 tốc độ cao và nhiều tính năng chuyên biệt cho doanh nghiệp.

Điểm nổi bật:

  • Hiệu năng mạnh mẽ: Hỗ trợ bộ vi xử lý Intel Core Ultra thế hệ mới nhất (Series 2), mang lại hiệu năng mạnh mẽ cho các ứng dụng văn phòng, quản lý và làm việc đa nhiệm. Hỗ trợ Intel® Turbo Boost Technology 2.0 và Intel® Turbo Boost Max Technology 3.0.
  • RAM DDR5 tốc độ cao: Hỗ trợ 2 khe cắm DIMM DDR5, cho phép dung lượng RAM lên đến 128GB và tốc độ ấn tượng lên đến 8800+MT/s (OC). Hỗ trợ Intel® Extreme Memory Profile (XMP) và ASUS Enhanced Memory Profile III (AEMP III) giúp tối ưu hóa hiệu suất RAM.
  • Kết nối tốc độ cao: Trang bị cổng mạng Realtek 2.5Gb Ethernet, đảm bảo kết nối internet nhanh chóng và ổn định cho công việc. Tích hợp công nghệ ASUS LANGuard bảo vệ chống sốc điện và tĩnh điện.
  • Lưu trữ linh hoạt: Hỗ trợ 2 khe cắm M.2 (1x PCIe 5.0 x4, 1x PCIe 4.0 x4) và 4 cổng SATA 6Gb/s, cho phép bạn lựa chọn và kết hợp các loại ổ cứng SSD và HDD để tối ưu hóa tốc độ và dung lượng lưu trữ.
  • Kết nối đồ họa cơ bản: Trang bị 1 cổng DisplayPort (hỗ trợ 4K@60Hz) và 1 cổng HDMI 2.1 (hỗ trợ 4K@60Hz), đáp ứng nhu cầu hiển thị cơ bản.
  • Âm thanh chất lượng cao: Tận hưởng âm thanh rõ ràng với Realtek 7.1 Surround Sound High Definition Audio CODEC, hỗ trợ Jack-detection, Multi-streaming và Front Panel Jack-retasking.
  • USB đa dạng: Cổng USB 5Gbps (Type-A) và USB 2.0 (Type-A) ở mặt sau và mặt trước, đáp ứng nhu cầu kết nối thiết bị ngoại vi.
  • Tính năng Non-stop:
    • Non-stop Action (Lightning Boot): Khởi động hệ thống nhanh chóng.
    • Non-stop Challenger (ASUS iCafe labs certified): Đã được chứng nhận độ bền bỉ từ các phòng lab của ASUS.
    • Non-stop Durability (Luminous anti-moisture coating, USBGuard): Lớp phủ chống ẩm và bảo vệ cổng USB, tăng cường độ bền cho bo mạch chủ trong môi trường khắc nghiệt.
  • Tính năng ASUS độc quyền: 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-steel back I/O), Q-Design, Thermal Solution, EZ DIY.

Thông số kỹ thuật:

  • CPU: Hỗ trợ Intel Core Ultra Processors (Series 2), LGA1851
  • Chipset: Intel B860
  • Bộ nhớ: 2 x DIMM DDR5, tối đa 128GB
  • Khe cắm mở rộng: 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1
  • Lưu trữ: 2 x M.2, 4 x SATA 6Gb/s
  • Mạng: 2.5Gb Ethernet
  • Âm thanh: Realtek 7.1
  • Cổng kết nối: DisplayPort, HDMI, USB Type-A
  • Kích thước: micro-ATX



Đối tượng sử dụng

  • Doanh nghiệp vừa và nhỏ
  • Văn phòng
  • Cửa hàng
  • Máy tính tiền

Kết luận:

ASUS EX-B860M-V5 là một lựa chọn lý tưởng cho các doanh nghiệp đang tìm kiếm một bo mạch chủ micro-ATX bền bỉ, ổn định và hiệu năng tốt. Với các tính năng chuyên biệt và độ bền bỉ cao, EX-B860M-V5 sẽ là nền tảng vững chắc cho hệ thống máy tính của bạn.

Order ASUS EX-B860M-V5 tại BP Store để trải nghiệm sức mạnh tối cao!

Bạn có bất cứ thắc mắc về sản phẩm PC, liên hệ ngay Hotline: 093 888 9100. Hoặc nhắn tin đến BP Store để giải đáp mọi thắc mắc của bạn nhé.

Mainboard Asus EX-B860M-V5

Mainboard Asus EX-B860M-V5

Model

EX-B860M-V5

CPU

Support Intel® Core™ Ultra Processors (Series 2) , LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® B860 Chipset

BỘ NHỚ

2 x DIMM slots, max. 128GB, DDR5
Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

ĐỒ HỌA

1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.

KHE CẮM MỞ RỘNG

Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel® B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

LƯU TRỮ

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

ETHERNET

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

USB

Rear USB (Total 6 ports)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

ÂM THANH

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

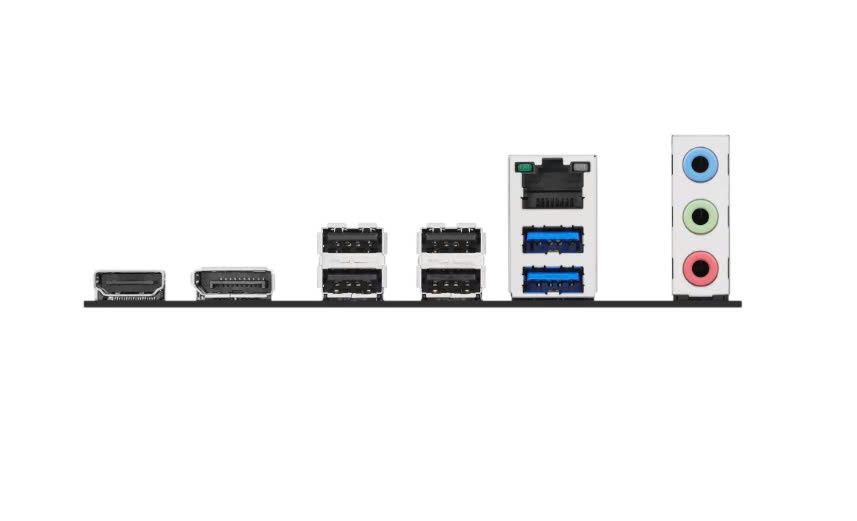

CỔNG I/O MẶT SAU

2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks

ĐẦU NỐI I/O NỘI BỘ


Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header

CÁC TÍNH NĂNG ĐẶC BIỆT

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- ProCool
Non-stop Action
- Lightning Boot
Non-stop Challenger
- ASUS iCafe labs certified
Non-stop Durability
- Luminous anti-moisture coating
- USBGuard

BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

KHẢ NĂNG QUẢN LÝ

WOL by PME, UEFI PXE

PHỤ KIỆN ĐI KÈM



Cables
2 x SATA 6Gb/s cables
Miscellaneous

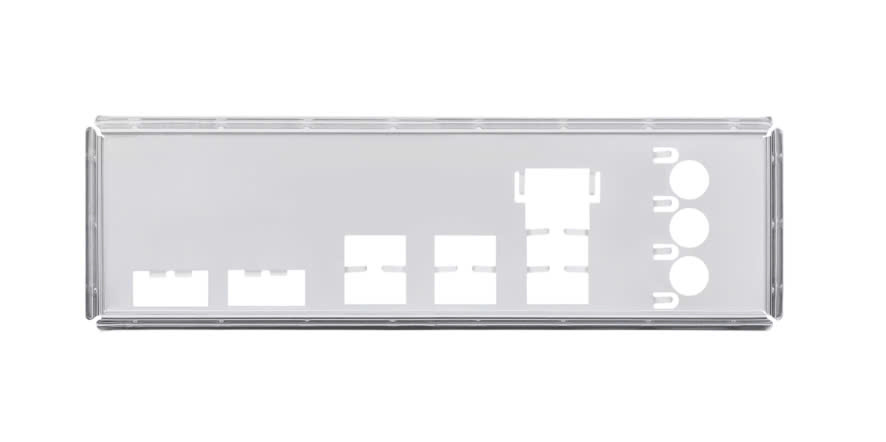

1 x I/O shield
1 x M.2 anchor package
Documentation
1 x Quick start guide

HỆ ĐIỀU HÀNH


Windows 11  (22H2 & later), Windows 10 64-bit(21H2 & later)

FORM FACTOR

micro-ATX Form Factor
9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm)

Warranty

36 months
