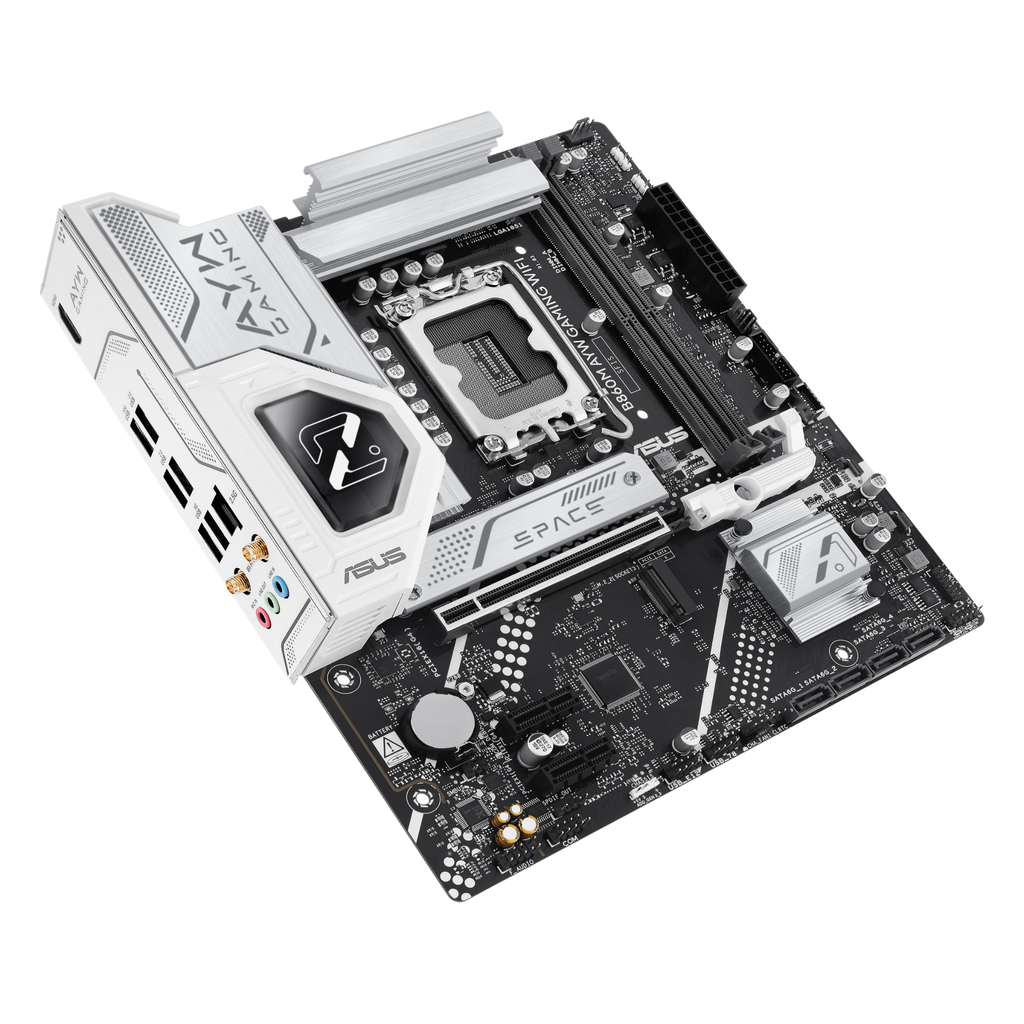

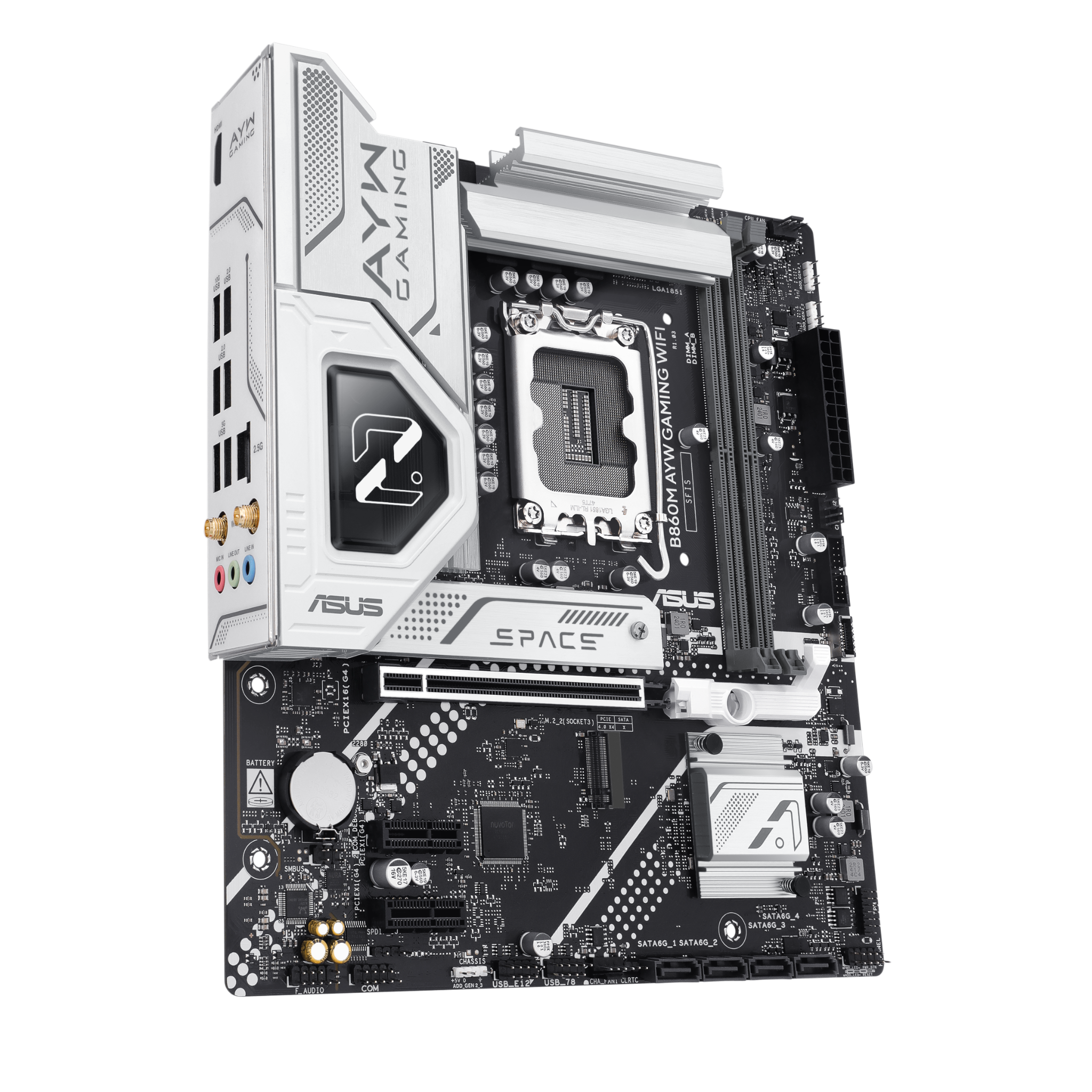

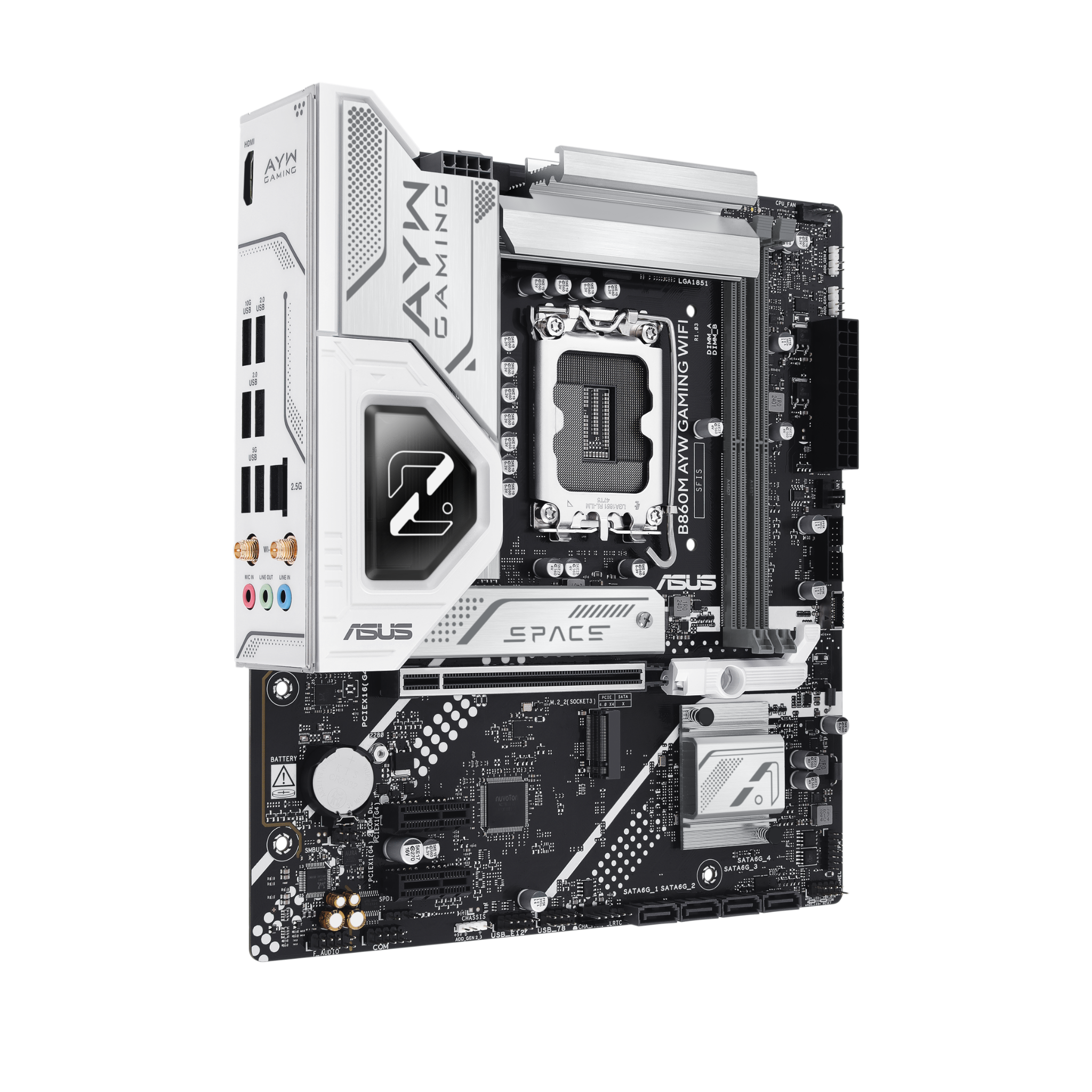

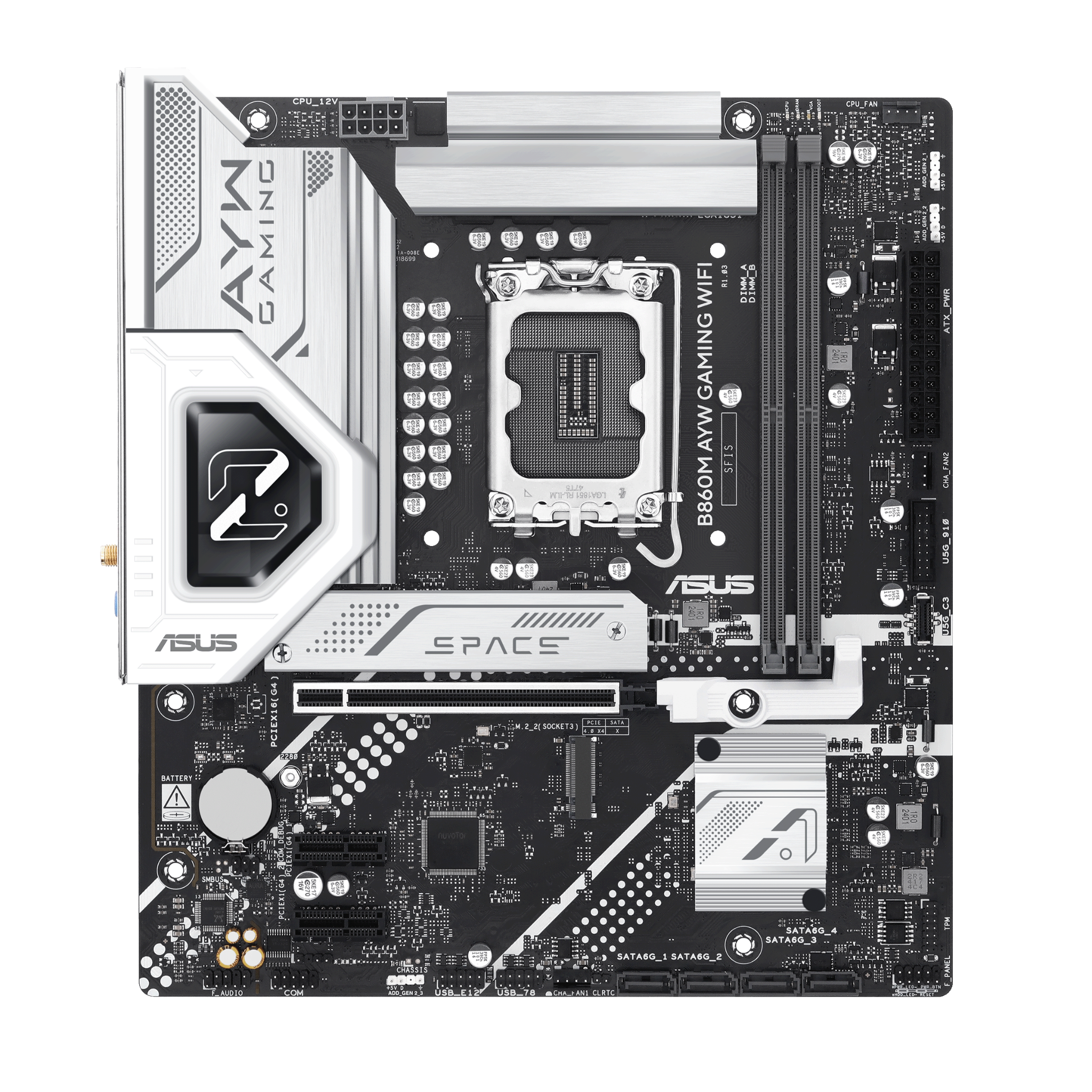

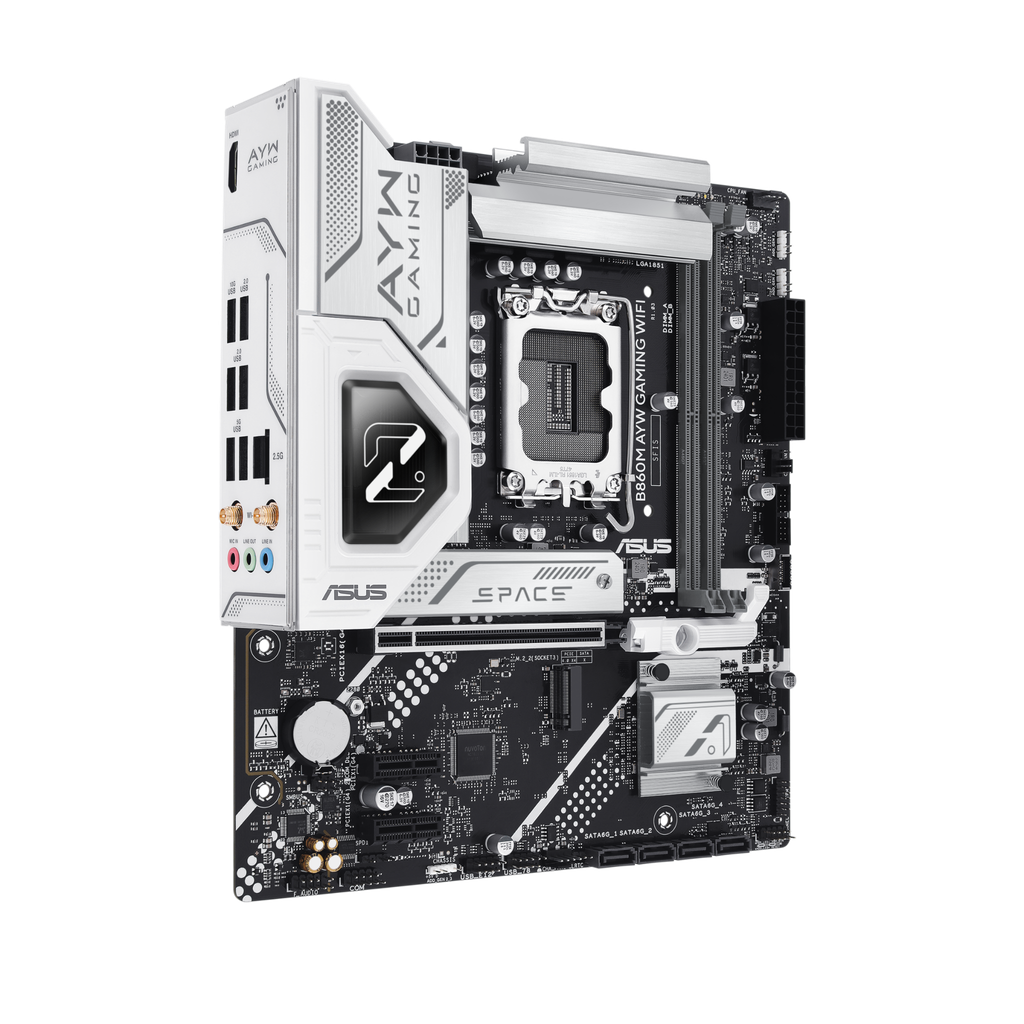

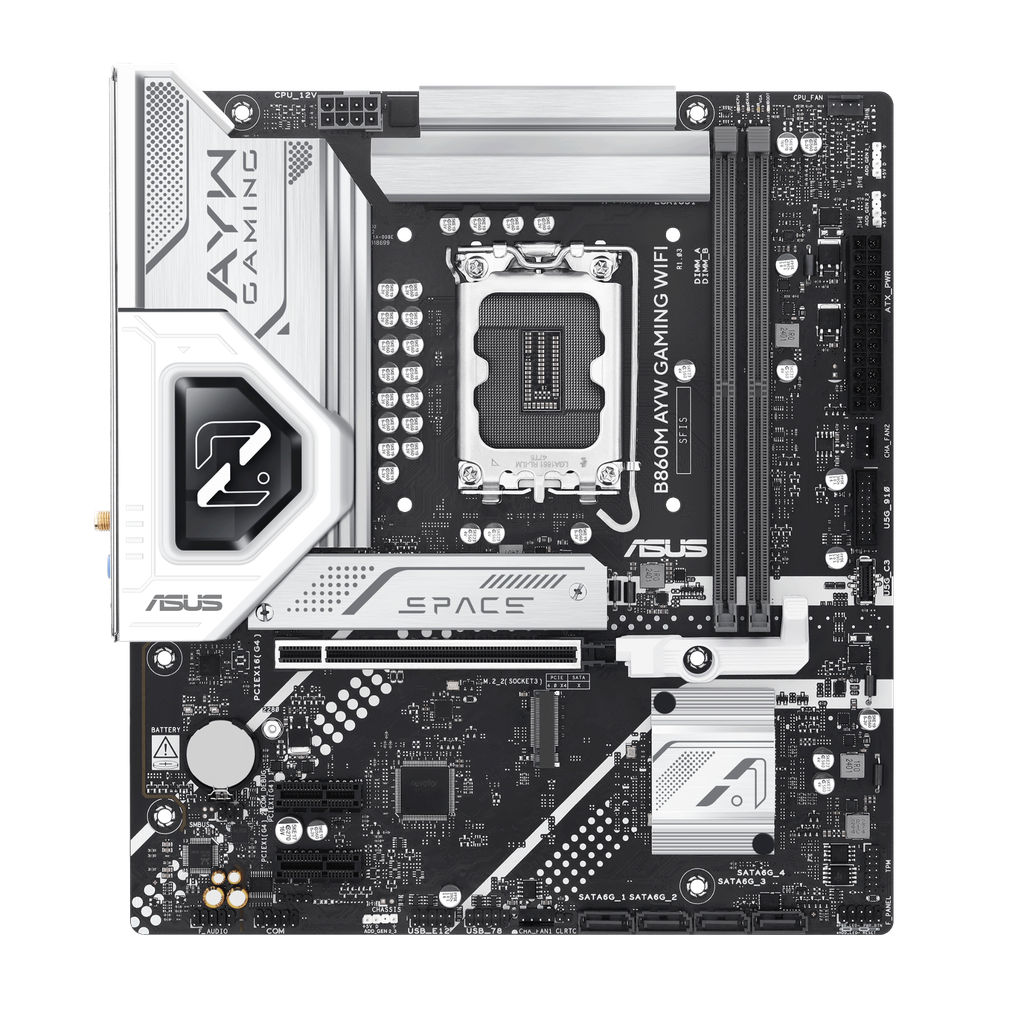

Mainboard Asus B860M AYW GAMING WIFI

Thương hiệu: ASUS Mã sản phẩm: Đang cập nhật
So sánh
4,490,000₫ 5,500,000₫
-18%
(Tiết kiệm: 1,010,000₫)
Bảo hành: 36 tháng Tình trạng: Mới

Mainboard Asus B860M AYW GAMING WIFI DỊCH VỤ NỔI BẬT

  • DỊCH VỤ THU CŨ TẠI NHÀ - ĐỔI MỚI TẬN NƠI
  • DỊCH VỤ VỆ SINH LẮP ĐẶT PC TẠI NHÀ
  • MIỄN PHÍ LẮP ĐẶT TẠI SHOWROOM

Đặt ngay 0938 889 100 (8:30 - 18:00)

  • Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
    Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
  • Hàng chính hãng 100%
    Hàng chính hãng 100%
  • Trả góp qua thẻ tín dụng Visa, Master, JCB
    Trả góp qua thẻ tín dụng Visa, Master, JCB
  • Đổi trả 100% trong 7 ngày
    Đổi trả 100% trong 7 ngày
Phương thức thanh toán

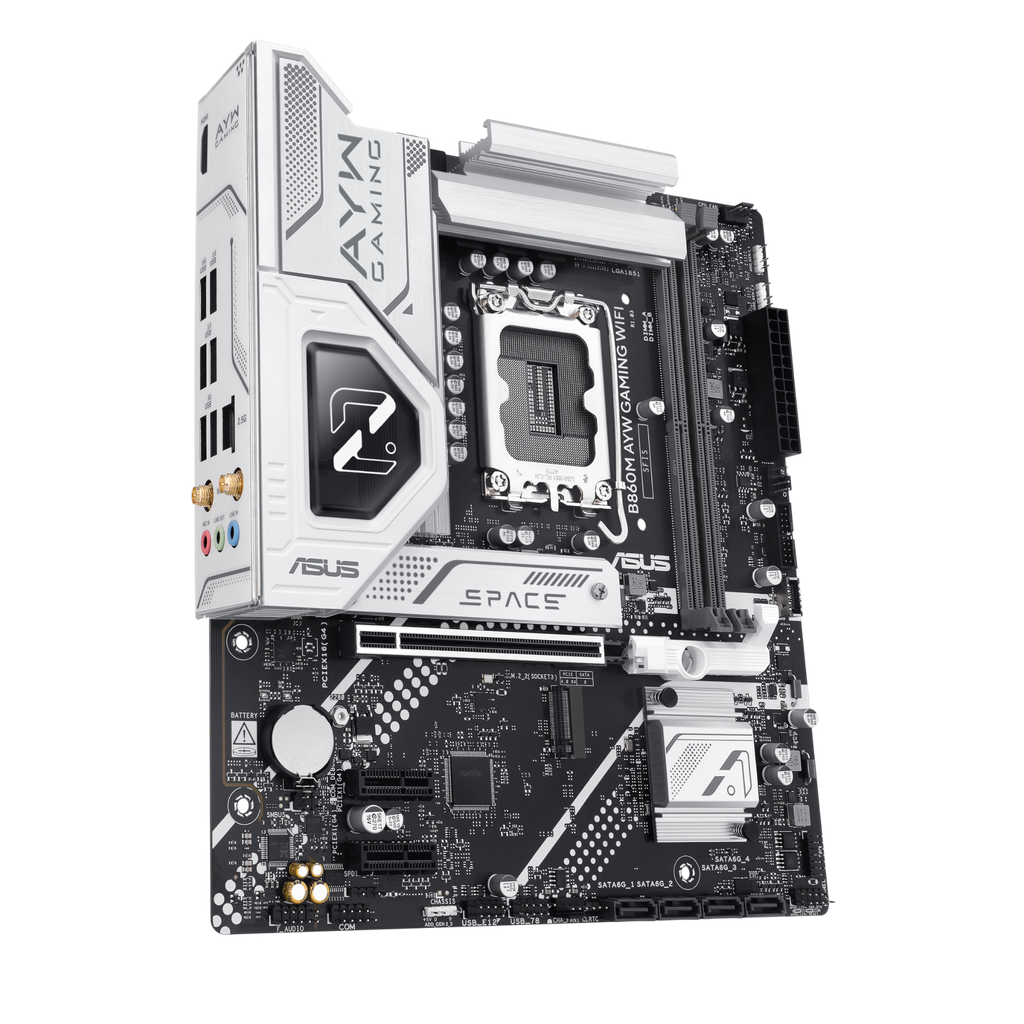

Mainboard Asus B860M AYW GAMING WIFI

ASUS B860M AYW GAMING WIFI: Bo mạch chủ micro-ATX mạnh mẽ, hỗ trợ Wi-Fi 6 - BP STOREMainboard Asus B860M AYW GAMING WIFI

ASUS B860M AYW GAMING WIFI là bo mạch chủ micro-ATX được thiết kế dành cho các game thủ. Tìm hiểu ngay tại BP STORE!

Giới thiệu:

ASUS B860M AYW GAMING WIFI với chipset Intel B860, hỗ trợ bộ vi xử lý Intel thế hệ mới nhất, kết nối Wi-Fi 6 và các tính năng dành riêng cho game thủ, bo mạch chủ này mang đến hiệu năng mạnh mẽ, trải nghiệm chơi game mượt mà và ổn định.

Điểm nổi bật:

  • Hiệu năng chơi game đỉnh cao:
    • Hỗ trợ bộ vi xử lý Intel Core Ultra thế hệ mới nhất, ép xung RAM DDR5 lên đến 8800+ MT/s cho hiệu năng xử lý vượt trội.
    • Khe cắm PCIe 4.0 x16 cho card đồ họa rời cao cấp, đảm bảo hiệu suất đồ họa mượt mà trong các tựa game nặng.
    • Khe cắm M.2 PCIe 5.0 x4 thế hệ mới, giúp bạn tận dụng tốc độ siêu nhanh của các ổ cứng thể rắn M.2 NVMe.
  • Kết nối mạng tốc độ cao:
    • Wi-Fi 6: Cung cấp tốc độ truyền dữ liệu không dây nhanh hơn, độ trễ thấp hơn, lý tưởng cho chơi game online.
    • Realtek 2.5Gb Ethernet: Mang đến tốc độ mạng LAN dây vượt trội so với chuẩn Gigabit Ethernet thông thường.
  • Tính năng gaming đặc biệt:
    • ASUS LANGuard: Bảo vệ kết nối mạng khỏi các hiện tượng sét lan truyền, đảm bảo trải nghiệm chơi game ổn định.
    • Các tính năng ASUS Q-Design giúp quá trình lắp ráp và nâng cấp máy tính dễ dàng hơn.



Thông số kỹ thuật:

  • Chipset: Intel B860
  • Socket: LGA1851
  • Bộ nhớ: 2 khe DDR5, tối đa 128GB
  • Khe cắm mở rộng: 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1
  • Lưu trữ: 2 x M.2, 4 x SATA 6Gb/s
  • Mạng: LAN 2.5GbE, Wi-Fi 6
  • Âm thanh: Realtek 7.1 Surround Sound High Definition Audio CODEC

Đối tượng sử dụng

  • Game thủ: Chơi các tựa game AAA ở độ phân giải cao với tốc độ khung hình mượt mà.
  • Người dùng cần hiệu năng cao: Chỉnh sửa ảnh, video, làm việc đa nhiệm hiệu quả.

Kết luận:

ASUS B860M AYW GAMING WIFI là lựa chọn tuyệt vời cho những game thủ đang tìm kiếm bo mạch chủ micro-ATX mạnh mẽ, hỗ trợ Wi-Fi 6 và các tính năng tối ưu hóa cho chơi game. Với hiệu năng vượt trội, kết nối mạng nhanh và các tính năng hữu ích, bo mạch chủ này giúp bạn chinh phục mọi thử thách trong thế giới ảo.

Order ASUS B860M AYW GAMING WIFI tại BP Store để trải nghiệm sức mạnh tối cao!

Bạn có bất cứ thắc mắc về sản phẩm PC, liên hệ ngay Hotline: 093 888 9100. Hoặc nhắn tin đến BP Store để giải đáp mọi thắc mắc của bạn nhé.

Mainboard Asus B860M AYW GAMING WIFI

Mainboard Asus B860M AYW GAMING WIFI

Model

B860M AYW GAMING WIFI

CPU

Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Bộ Chip

Intel® B860 Chipset

Bộ nhớ

2 x DIMM slots, max. 128GB, DDR5
Supports up to 8800+MT/s (OC),  Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Đồ họa

1 x HDMITM port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors' or graphic cards' resolution.

Khe cắm mở rộng

Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel® B860 Chipset
2 x PCIe 4.0 x1 slots
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Lưu trữ

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2) *

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3*
* The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 6 ports)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)**
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C®)*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports**
* USB Type-C® power delivery output: max. 5V/3A.
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

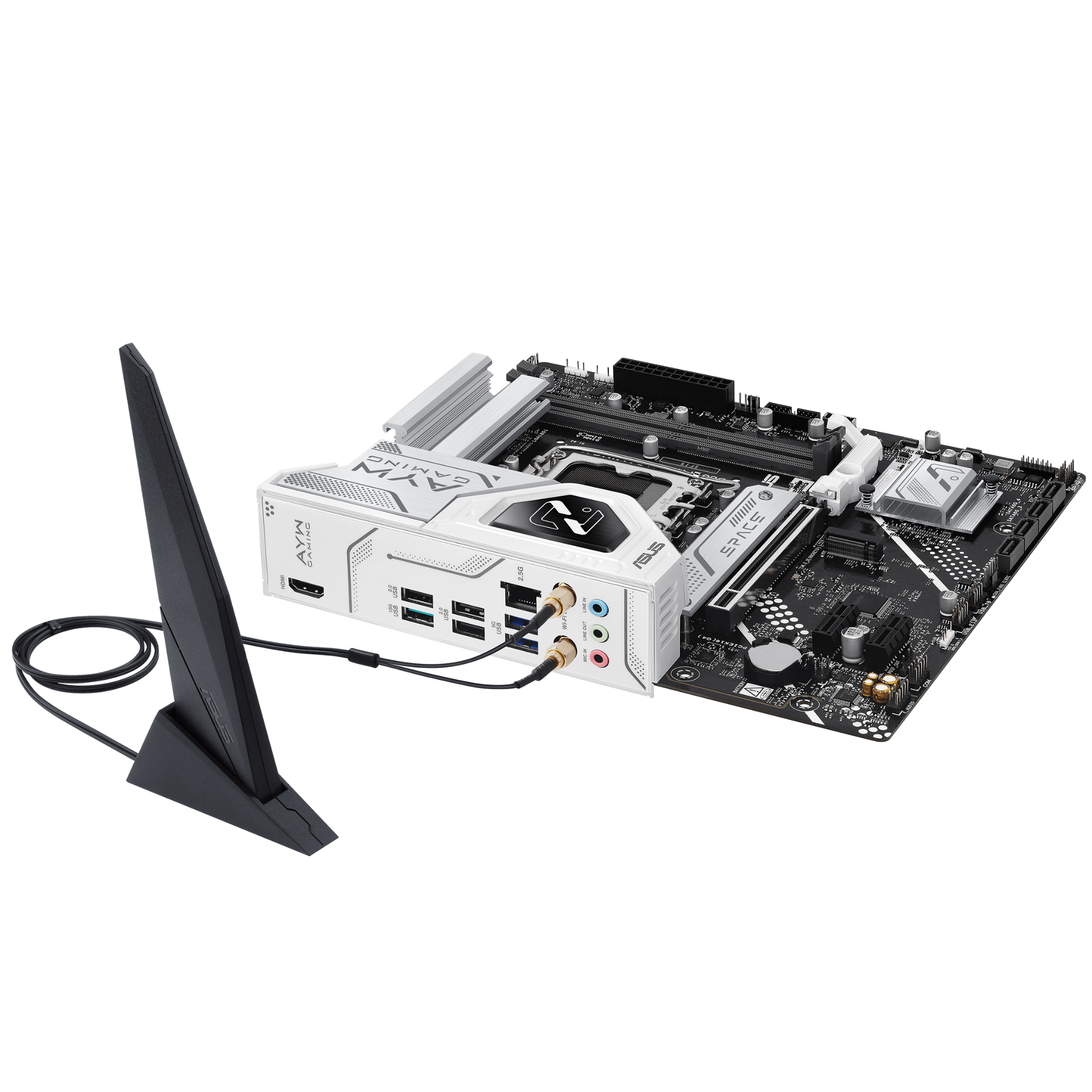

Cổng I/O mặt sau

1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
1 x HDMITM port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Đầu nối I/O nội bộ

Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header

Các tính năng đặc biệt

ASUS 5X PROTECTION III
- DIGI+VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsinks design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Addressable Gen2 headers

Tính năng phần mềm

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

BIOS

256(128+128) Mb Flash ROM, UEFI AMI BIOS

Khả năng quản lý

WOL by PME, PXE

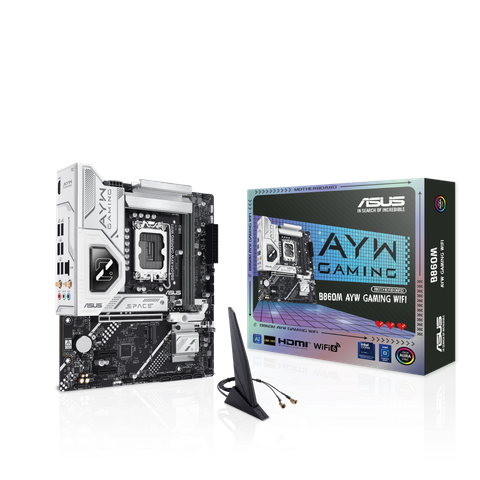

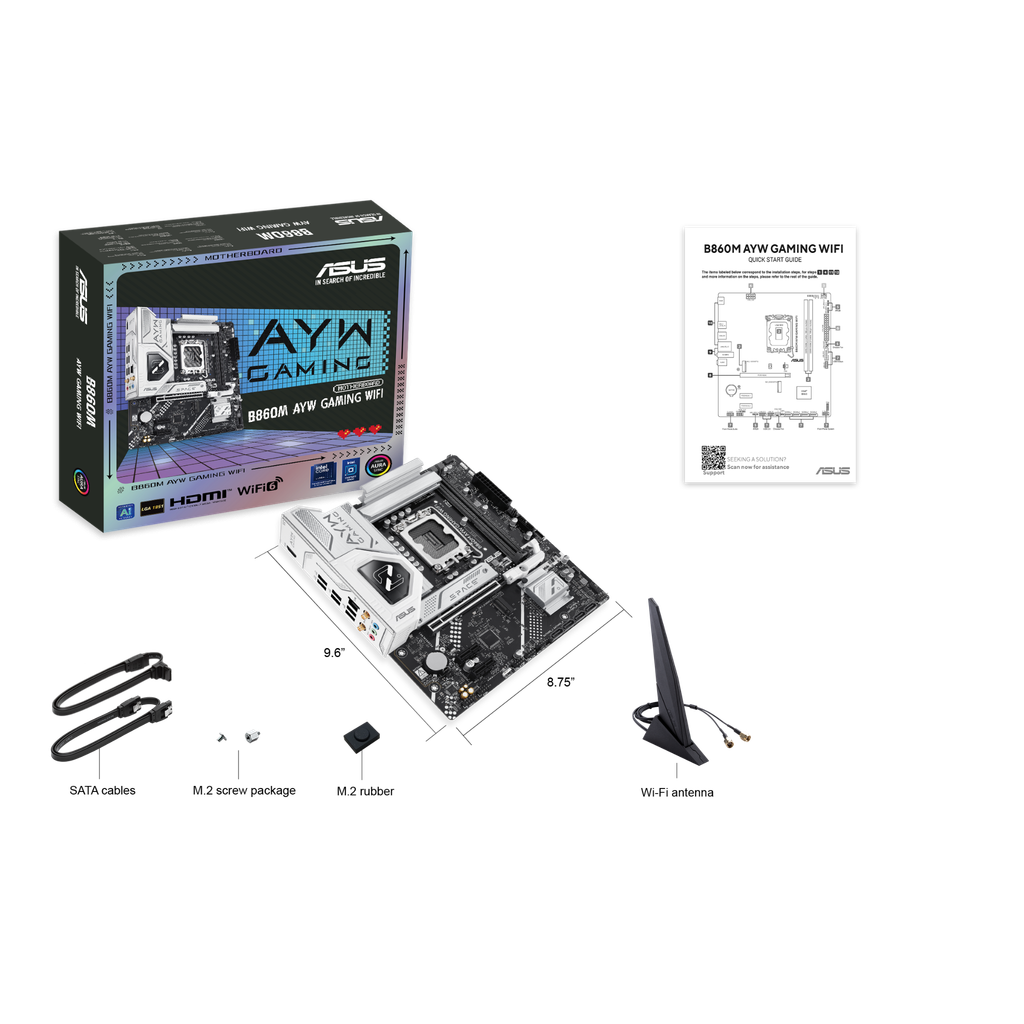

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x M.2 rubber package
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide

Hệ điều hành

Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later)

Form Factor


micro-ATX Form Factor
9.6 inch x 8.75 inch (24.4cm x 22.2cm)

Warranty

36 months
